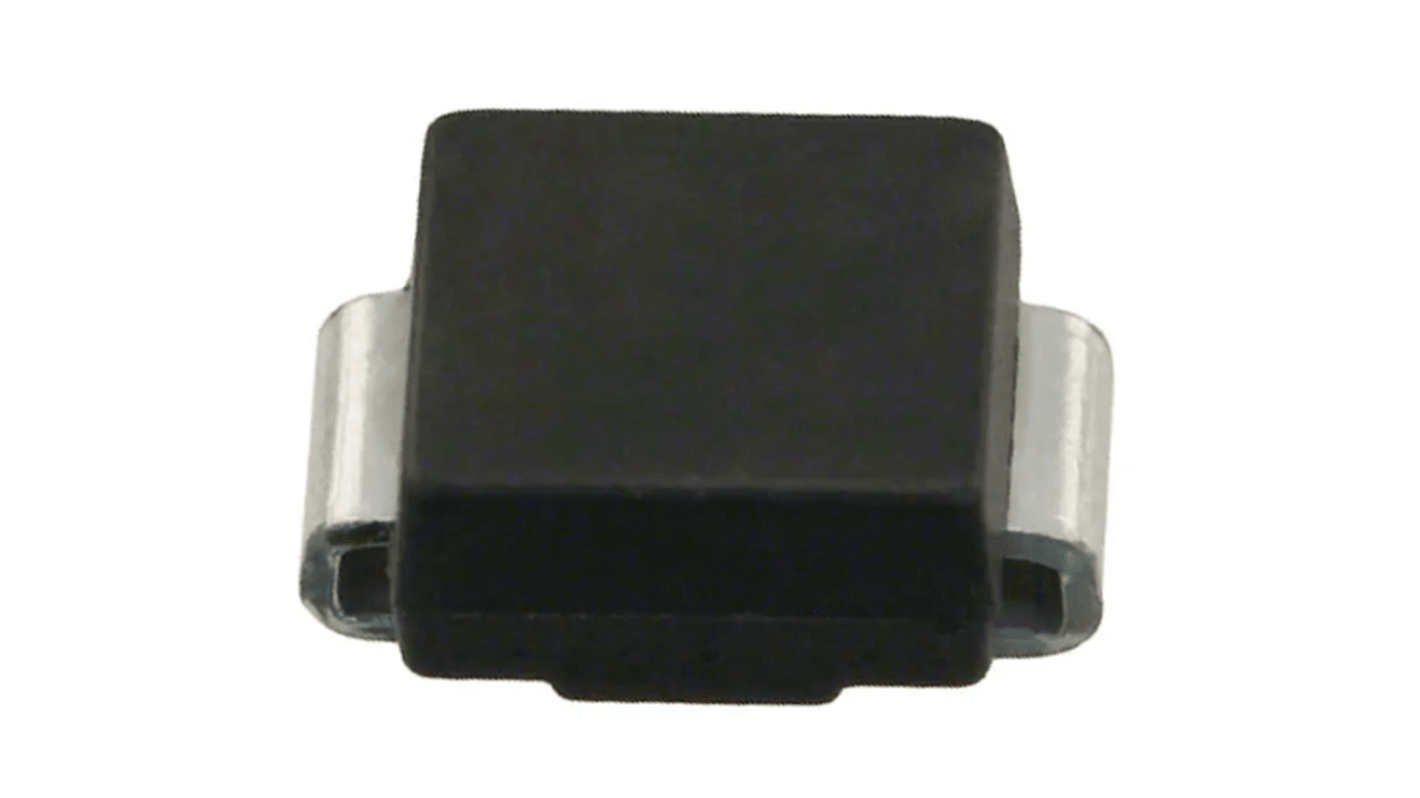

STMicroelectronics 200V 1.5A, Rectifier Diode, 2-Pin DO-214AA STTH1R02U
- RS Stock No.:
- 189-4005
- Mfr. Part No.:
- STTH1R02U
- Brand:
- STMicroelectronics
Subtotal (1 reel of 2500 units)*
£222.50
(exc. VAT)
£267.50
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 999,997,500 unit(s) shipping from 05 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
---|---|---|
2500 + | £0.089 | £222.50 |
*price indicative
- RS Stock No.:
- 189-4005
- Mfr. Part No.:
- STTH1R02U
- Brand:
- STMicroelectronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | STMicroelectronics | |
Mounting Type | Surface Mount | |
Package Type | DO-214AA (SMB) | |
Maximum Continuous Forward Current | 1.5A | |
Peak Reverse Repetitive Voltage | 200V | |
Diode Configuration | Single | |
Rectifier Type | Fast Recovery | |
Diode Type | Rectifier | |
Pin Count | 2 | |
Maximum Forward Voltage Drop | 1V | |
Number of Elements per Chip | 1 | |
Peak Reverse Recovery Time | 30ns | |
Select all | ||
---|---|---|
Brand STMicroelectronics | ||
Mounting Type Surface Mount | ||
Package Type DO-214AA (SMB) | ||
Maximum Continuous Forward Current 1.5A | ||
Peak Reverse Repetitive Voltage 200V | ||
Diode Configuration Single | ||
Rectifier Type Fast Recovery | ||
Diode Type Rectifier | ||
Pin Count 2 | ||
Maximum Forward Voltage Drop 1V | ||
Number of Elements per Chip 1 | ||
Peak Reverse Recovery Time 30ns | ||
The STTH1502 uses ST's new 200V planar Pt doping technology, and is specially suited for switching mode base drive and transistor circuits. Packaged in TO-220AC, TO-220FPAC, and TO-220 Ins, this device is intended for use in low voltage, high frequency inverters, free wheeling and polarity protection.
Very low conduction losses
Low forward and reverse recovery times
Negligible switching losses
High junction temperature
Low forward and reverse recovery times
Negligible switching losses
High junction temperature
