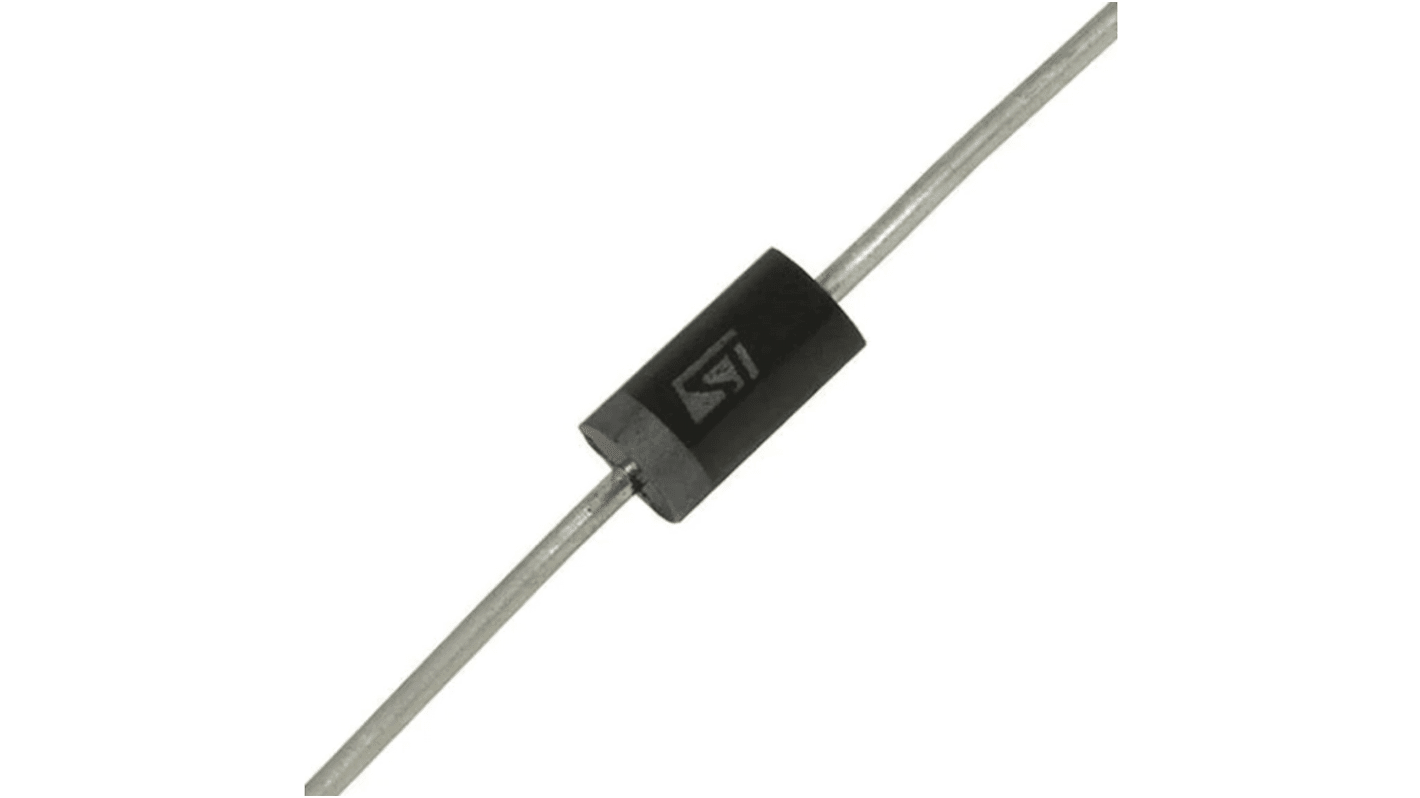

STMicroelectronics 60 V 5 A Diode Schottky 2-Pin DO-201AD
- RS Stock No.:
- 189-3995
- Mfr. Part No.:
- STPS5L60
- Brand:
- STMicroelectronics
Subtotal (1 tape of 600 units)*
£89.40
(exc. VAT)
£107.40
(inc. VAT)
FREE delivery for orders over £50.00
Stock information currently inaccessible
Units | Per unit | Per Tape* |
|---|---|---|
| 600 + | £0.149 | £89.40 |
*price indicative
- RS Stock No.:
- 189-3995
- Mfr. Part No.:
- STPS5L60
- Brand:
- STMicroelectronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | STMicroelectronics | |
| Product Type | Diode | |
| Mount Type | Through Hole | |
| Package Type | DO-201AD | |
| Maximum Continuous Forward Current If | 5A | |
| Peak Reverse Repetitive Voltage Vrrm | 60V | |
| Diode Configuration | Single | |
| Rectifier Type | Schottky | |
| Pin Count | 2 | |
| Peak Reverse Current Ir | 100mA | |
| Minimum Operating Temperature | -65°C | |
| Maximum Forward Voltage Vf | 520mV | |
| Peak Non-Repetitive Forward Surge Current Ifsm | 205A | |
| Maximum Operating Temperature | 150°C | |
| Length | 4.6mm | |
| Width | 3.95 mm | |
| Height | 9.5mm | |
| Diameter | 5.3 mm | |
| Standards/Approvals | No | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand STMicroelectronics | ||
Product Type Diode | ||
Mount Type Through Hole | ||
Package Type DO-201AD | ||
Maximum Continuous Forward Current If 5A | ||
Peak Reverse Repetitive Voltage Vrrm 60V | ||
Diode Configuration Single | ||
Rectifier Type Schottky | ||
Pin Count 2 | ||
Peak Reverse Current Ir 100mA | ||
Minimum Operating Temperature -65°C | ||
Maximum Forward Voltage Vf 520mV | ||
Peak Non-Repetitive Forward Surge Current Ifsm 205A | ||
Maximum Operating Temperature 150°C | ||
Length 4.6mm | ||
Width 3.95 mm | ||
Height 9.5mm | ||
Diameter 5.3 mm | ||
Standards/Approvals No | ||
Automotive Standard No | ||
Power Schottky rectifier suited for switch mode power supplies and high frequency inverters. This device is intended for use in low voltage output for small battery chargers and consumer SMPS such as DVD and set-top box.
Negligible switching losses
Low forward voltage drop for higher efficiency
Low thermal resistance
