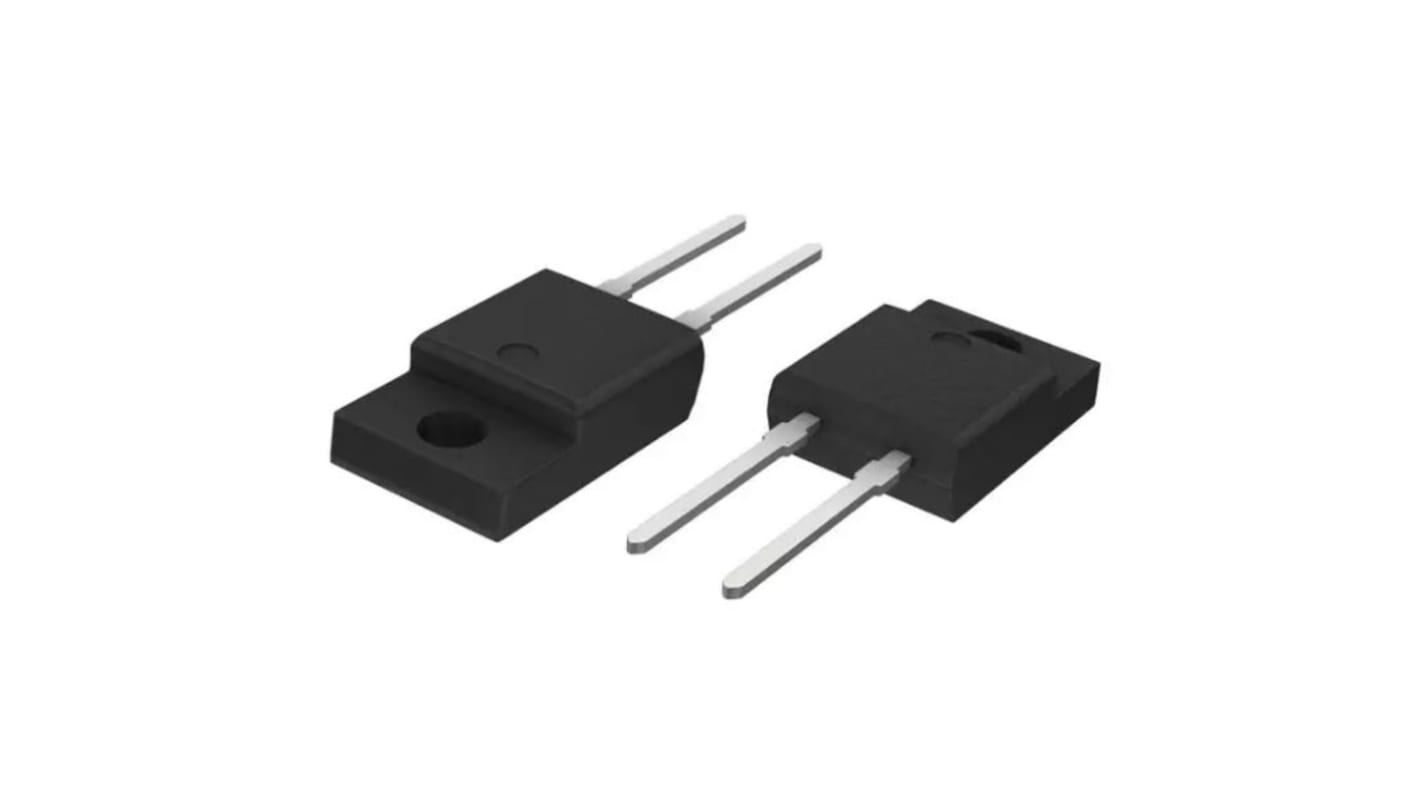

onsemi 600V 15A, Rectifier Diode, 2-Pin TO-220FP MURF1560G
- RS Stock No.:
- 186-7822
- Mfr. Part No.:
- MURF1560G
- Brand:
- onsemi
Subtotal (1 pack of 10 units)*
£17.20
(exc. VAT)
£20.60
(inc. VAT)
FREE delivery for orders over £50.00
Limited stock
- 40 left, ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
---|---|---|
10 + | £1.72 | £17.20 |
*price indicative
- RS Stock No.:
- 186-7822
- Mfr. Part No.:
- MURF1560G
- Brand:
- onsemi
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | onsemi | |
Mounting Type | Through Hole | |
Package Type | TO-220FP | |
Maximum Continuous Forward Current | 15A | |
Peak Reverse Repetitive Voltage | 600V | |
Diode Configuration | Single | |
Rectifier Type | Fast Recovery | |
Diode Type | Rectifier | |
Pin Count | 2 | |
Number of Elements per Chip | 1 | |
Peak Reverse Recovery Time | 60ns | |
Peak Non-Repetitive Forward Surge Current | 150A | |
Select all | ||
---|---|---|
Brand onsemi | ||
Mounting Type Through Hole | ||
Package Type TO-220FP | ||
Maximum Continuous Forward Current 15A | ||
Peak Reverse Repetitive Voltage 600V | ||
Diode Configuration Single | ||
Rectifier Type Fast Recovery | ||
Diode Type Rectifier | ||
Pin Count 2 | ||
Number of Elements per Chip 1 | ||
Peak Reverse Recovery Time 60ns | ||
Peak Non-Repetitive Forward Surge Current 150A | ||
The Ultrafast Rectifier is designed for use in switching power supplies, inverters and as free wheeling diodes.
Ultrafast 35 and 60 Nanosecond Recovery Time
175 C Operating Junction Temperature
High Voltage Capability to 600 Volts
Low Forward Drop
Low Leakage Specified @ 150 C Case Temperature
Current Derating Specified @ Both Case and Ambient Temperatures
Mechanical Characteristics:
Case: Epoxy, Molded
Weight: 1.9 grams (approximately)
Finish: All External Surfaces Corrosion Resistant and Terminal Leads are Readily Solderable
Lead Temperature for Soldering Purposes: 260 C Max. for 10 Seconds
PPAP capable
SUR8 Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements
End Products
ATX Power Supply
Flat Panel Display
Server
Note Book Adapter
Applications
SMPS: DCM CRM PFC
175 C Operating Junction Temperature
High Voltage Capability to 600 Volts
Low Forward Drop
Low Leakage Specified @ 150 C Case Temperature
Current Derating Specified @ Both Case and Ambient Temperatures
Mechanical Characteristics:
Case: Epoxy, Molded
Weight: 1.9 grams (approximately)
Finish: All External Surfaces Corrosion Resistant and Terminal Leads are Readily Solderable
Lead Temperature for Soldering Purposes: 260 C Max. for 10 Seconds
PPAP capable
SUR8 Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements
End Products
ATX Power Supply
Flat Panel Display
Server
Note Book Adapter
Applications
SMPS: DCM CRM PFC
