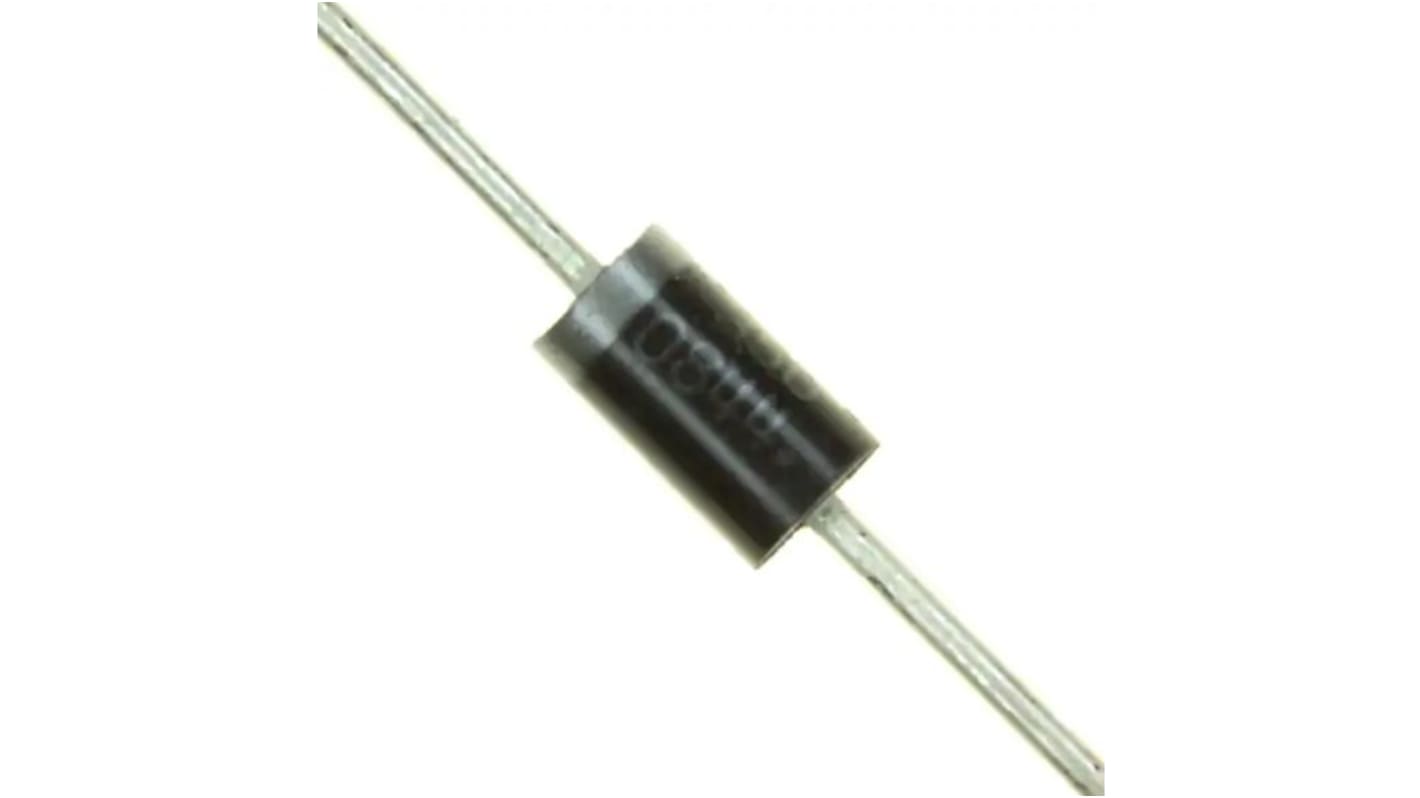

onsemi 800V 4A, Rectifier Diode, 2-Pin CASE 267-05 MUR480ERLG

View this category
Bulk discount available

Subtotal 100 units (supplied on a continuous strip)*

£36.50

(exc. VAT)

£43.80

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 775 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
100 - 225£0.365
250 +£0.316

*price indicative

Packaging Options:
RS Stock No.:
186-7716P
Mfr. Part No.:
MUR480ERLG
Brand:
onsemi
Find similar products by selecting one or more attributes.
Select all

Brand

onsemi

Mounting Type

Through Hole

Package Type

CASE 267-05

Maximum Continuous Forward Current

4A

Peak Reverse Repetitive Voltage

800V

Diode Configuration

Single

Rectifier Type

Fast Recovery

Diode Type

Rectifier

Pin Count

2

Number of Elements per Chip

1

Peak Reverse Recovery Time

100ns

Diameter

5.3mm

Peak Non-Repetitive Forward Surge Current

70A

Ultrafast "E" Series with High Reverse Energy Capability designed for use in switching power supplies, inverters and as free wheeling diodes, these state-of-the-art devices

20 mjoules Avalanche Energy Guaranteed
Excellent Protection Against Voltage Transients in Switching Inductive Load Circuits
Ultrafast 75 Nanosecond Recovery Time
175°C Operating Junction Temperature
Low Forward Voltage
Low Leakage Current
High Temperature Glass Passivated Junction
Reverse Voltage to 1000 Volts
Mechanical Characteristics:
Case: Epoxy, Molded
Weight: 1.1 gram (approximately)
Finish: All External Surfaces Corrosion Resistant and Terminal Leads are Readily Solderable
Lead Temperature for Soldering Purposes: 260°C Max. for 10 Seconds
Polarity: Cathode Indicated by Polarity Band
Marking: MUR480E, MUR4100E
