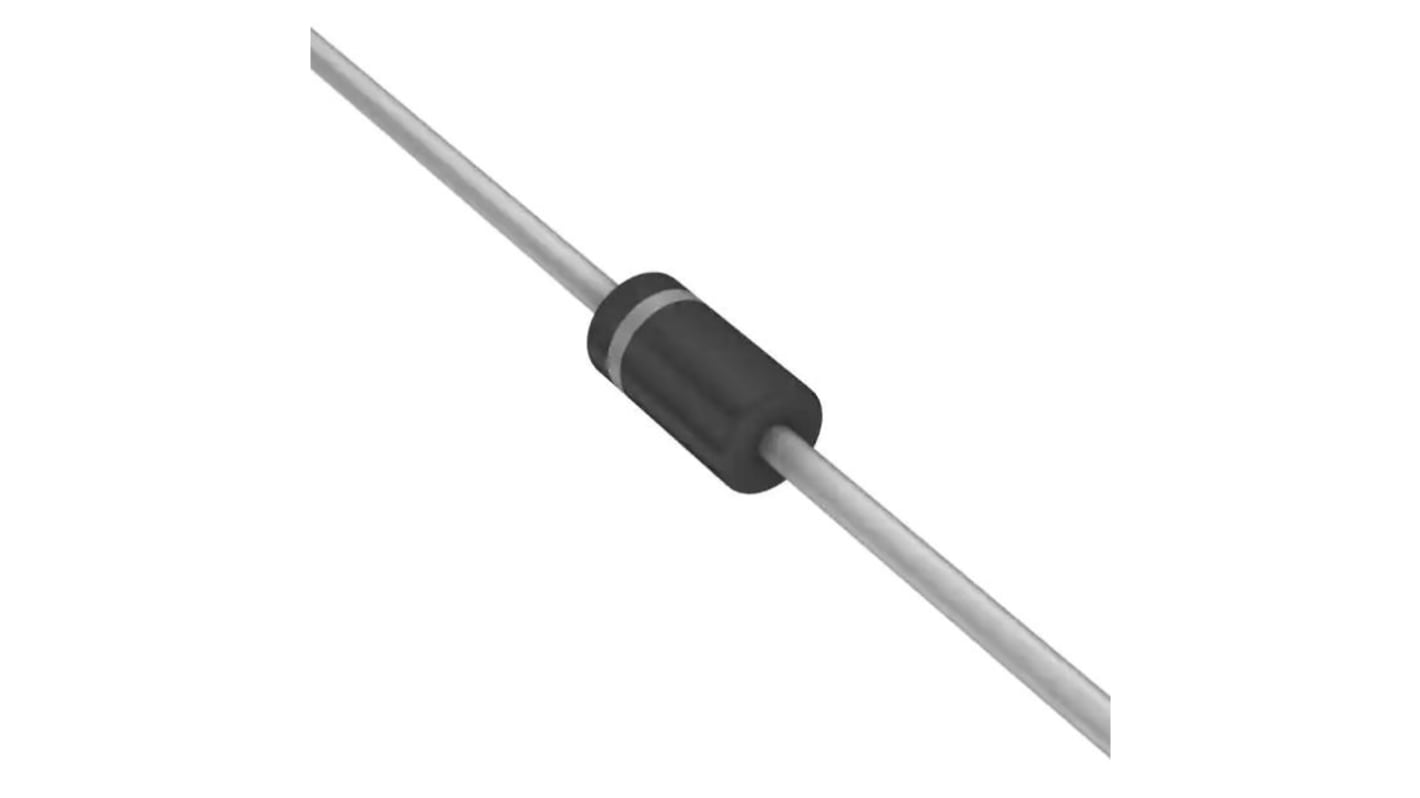

onsemi 100V 2A, Schottky Diode, 2-Pin DO-41 MBR1100G

View this category
Bulk discount available

Subtotal (1 pack of 25 units)*

£5.60

(exc. VAT)

£6.725

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 150 unit(s) ready to ship
  • Plus 1,250 unit(s) shipping from 31 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Pack*
25 - 75£0.224£5.60
100 - 225£0.194£4.85
250 - 475£0.168£4.20
500 +£0.148£3.70

*price indicative

Packaging Options:
RS Stock No.:
186-7670
Mfr. Part No.:
MBR1100G
Brand:
onsemi
Find similar products by selecting one or more attributes.
Select all

Brand

onsemi

Mounting Type

Through Hole

Package Type

DO-41

Maximum Continuous Forward Current

2A

Peak Reverse Repetitive Voltage

100V

Diode Configuration

Single

Rectifier Type

Schottky Rectifier

Diode Type

Schottky

Pin Count

2

Number of Elements per Chip

1

Diode Technology

Schottky Barrier

Diameter

2.7mm

Peak Non-Repetitive Forward Surge Current

50A

The Schottky Rectifier employs the Schottky Barrier principle in a large area metal-to-silicon power diode. The Schottky Rectifier's state-of-the-art geometry features epitaxial construction with oxide passivation and metal overlap contact. It is ideally suited for use as rectifiers in low voltage, high frequency inverters, free wheeling diodes and polarity protection diodes.

Low Reverse Current
Low Stored Charge, Majority Carrier Conduction
Low Power Loss/High Efficiency
Highly Stable Oxide Passivated Junction
Guard-Ring for Stress Protection
Low Forward Voltage
150°C Operating Junction Temperature
High Surge Capacity
Mechanical Characteristics:
Case: Epoxy, Moulded
Weight: 0.4 gram (approximately)
Finish: All External Surfaces Corrosion Resistant and Terminal Leads are Readily solder able
Lead Temperature for Soldering Purposes: 260°C Max. For 10 Seconds
Shipped in plastic bags, 1000 per bag
Polarity: Cathode Indicated by Polarity Band
Marking: B1100
These are Pb-Free Devices
