Nexperia 100V 11.2A, Schottky Diode, 2 + Tab-Pin SOD-1289 PMEG100V080ELPDZ

View this category
Bulk discount available

Subtotal (1 pack of 25 units)*

£6.175

(exc. VAT)

£7.40

(inc. VAT)

Add to Basket
Select or type quantity
Last RS stock
  • Final 16,125 unit(s), ready to ship
Units
Per unit
Per Pack*
25 - 100£0.247£6.18
125 - 225£0.235£5.88
250 - 600£0.222£5.55
625 - 1225£0.218£5.45
1250 +£0.208£5.20

*price indicative

Packaging Options:
RS Stock No.:
153-1960
Mfr. Part No.:
PMEG100V080ELPDZ
Brand:
Nexperia
Find similar products by selecting one or more attributes.
Select all

Brand

Nexperia

Mounting Type

Surface Mount

Package Type

SOD-1289

Maximum Continuous Forward Current

11.2A

Peak Reverse Repetitive Voltage

100V

Diode Configuration

Common Cathode

Rectifier Type

Schottky Rectifier

Diode Type

Schottky

Pin Count

2 + Tab

Number of Elements per Chip

1

Diode Technology

Schottky

Peak Reverse Recovery Time

10ns

Peak Non-Repetitive Forward Surge Current

160A

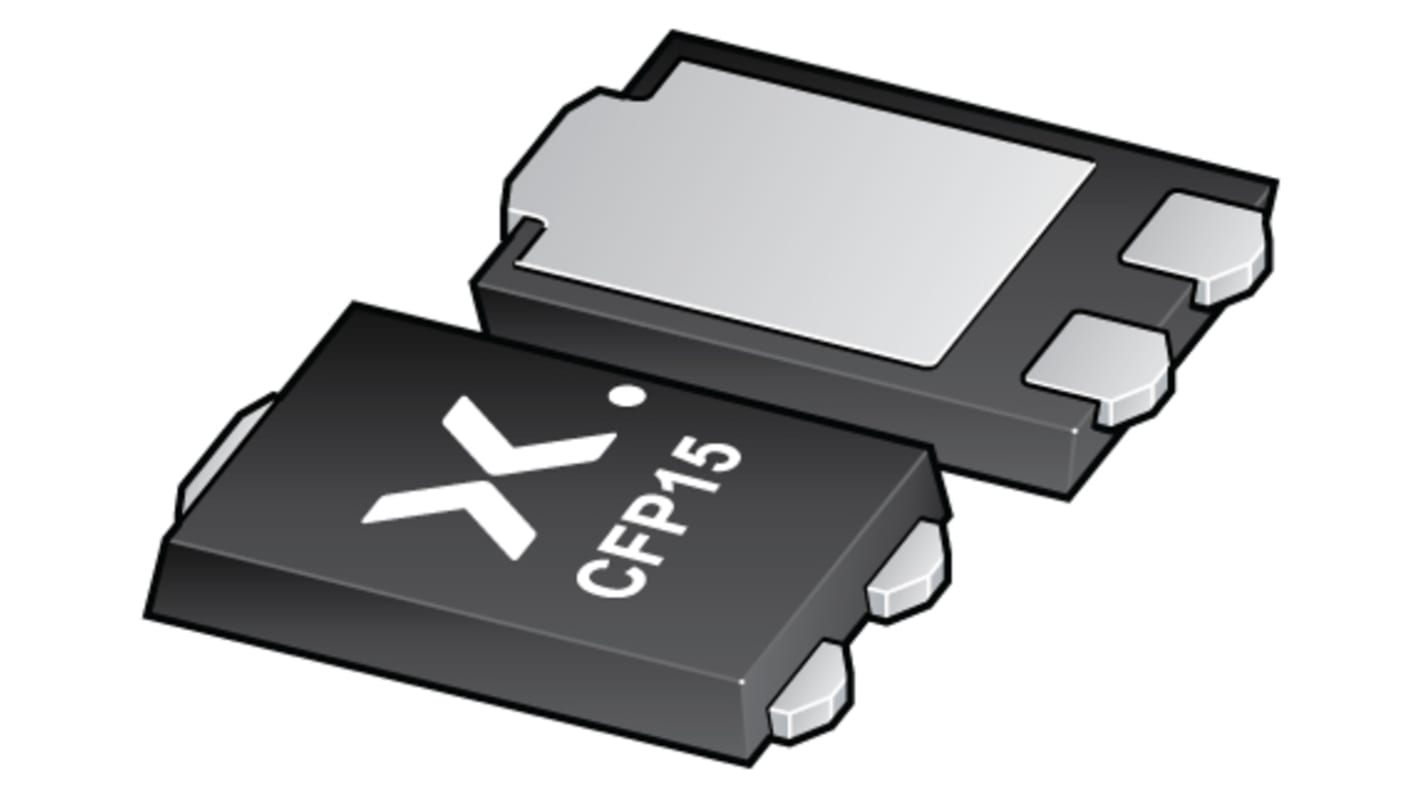

100 V, 8 A low leakage current Schottky barrier rectifier, Maximum Efficiency General Application (MEGA) Schottky barrier rectifier, encapsulated in a CFP15 (SOT1289) power and flat lead Surface-Mounted Device (SMD) plastic package.

Average forward current: IF(AV) ≤ 8 A
Reverse voltage: VR ≤ 100 V
Low leakage current due to high Schottky barrier technology
Low forward voltage
High power capability due to clip-bonding technology and heat sink
High temperature Tj ≤ 175 °C
Small and thin SMD power plastic package, typical height 0.78 mm
AEC-Q101 qualified
Low voltage rectification
Automotive LED lighting
High efficiency DC-to-DC conversion
Switch mode power supply
Reverse polarity protection
Low power consumption application
