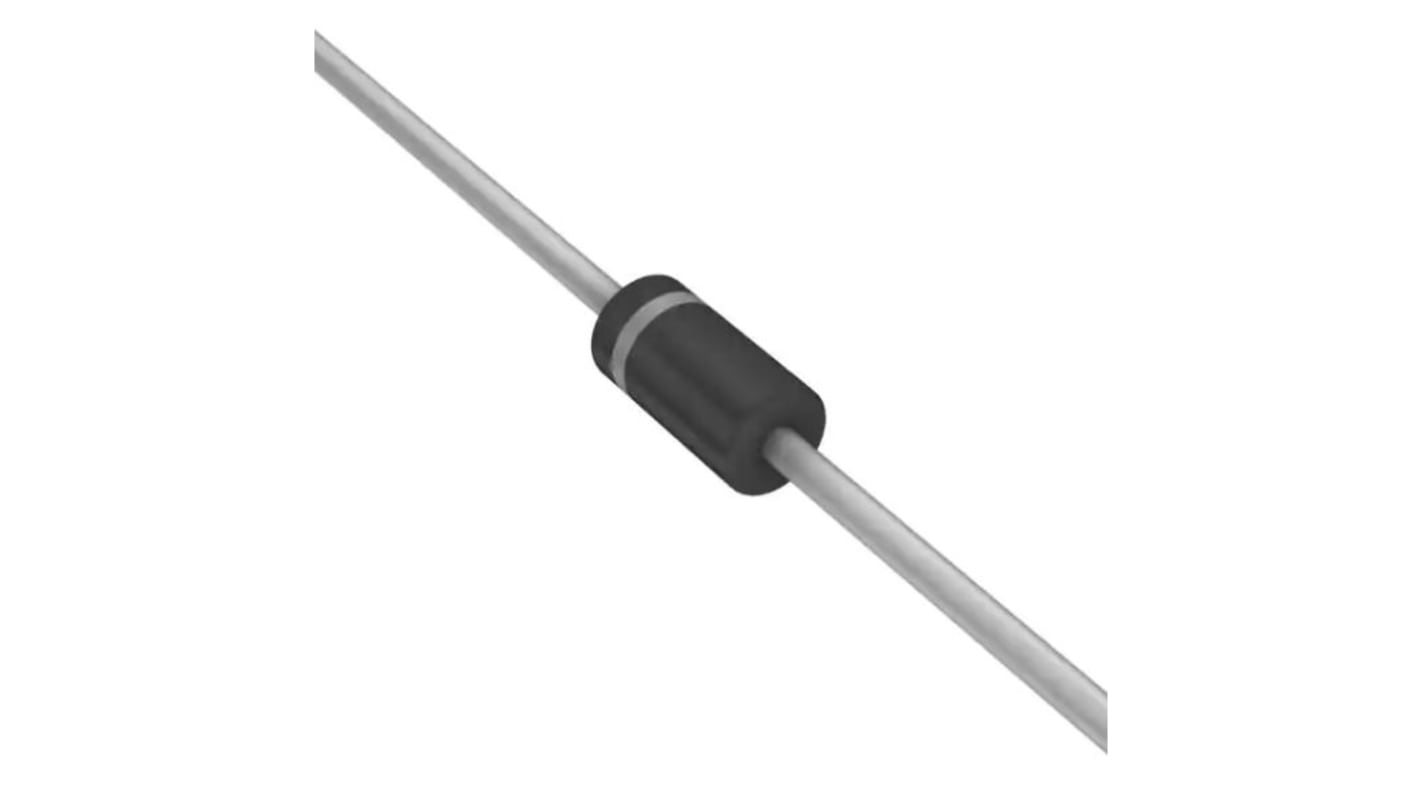

onsemi 100V 1A, Rectifier Diode, 2-Pin CASE 59 MUR110G
- RS Stock No.:
- 186-7638
- Mfr. Part No.:
- MUR110G
- Brand:
- onsemi
Bulk discount available
Subtotal (1 pack of 25 units)*
£5.575
(exc. VAT)
£6.70
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 850 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 25 - 75 | £0.223 | £5.58 |
| 100 - 225 | £0.192 | £4.80 |
| 250 - 475 | £0.167 | £4.18 |
| 500 + | £0.147 | £3.68 |
*price indicative
- RS Stock No.:
- 186-7638
- Mfr. Part No.:
- MUR110G
- Brand:
- onsemi
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | onsemi | |
| Mounting Type | Through Hole | |
| Package Type | CASE 59 | |
| Maximum Continuous Forward Current | 1A | |
| Peak Reverse Repetitive Voltage | 100V | |
| Diode Configuration | Single | |
| Rectifier Type | General Purpose | |
| Diode Type | Rectifier | |
| Pin Count | 2 | |
| Number of Elements per Chip | 1 | |
| Peak Reverse Recovery Time | 75ns | |
| Diameter | 2.7mm | |
| Peak Non-Repetitive Forward Surge Current | 35A | |
Select all | ||
|---|---|---|
Brand onsemi | ||
Mounting Type Through Hole | ||
Package Type CASE 59 | ||
Maximum Continuous Forward Current 1A | ||
Peak Reverse Repetitive Voltage 100V | ||
Diode Configuration Single | ||
Rectifier Type General Purpose | ||
Diode Type Rectifier | ||
Pin Count 2 | ||
Number of Elements per Chip 1 | ||
Peak Reverse Recovery Time 75ns | ||
Diameter 2.7mm | ||
Peak Non-Repetitive Forward Surge Current 35A | ||
The Ultrafast Rectifier is designed for use in switching power supplies, inverters and as free wheeling diodes.
Ultrafast 25, 50 and 75 Nanosecond Recovery Times
175°C Operating Junction Temperature
Low Forward Voltage
Low Leakage Current
High Temperature Glass Passivated Junction
Reverse Voltage to 600 Volts
Mechanical Characteristics:
Case: Epoxy, Moulded
Weight: 0.4 gram (approximately)
Finish: All External Surfaces Corrosion Resistant and Terminal Leads are Readily solder able
Lead Temperature for Soldering Purposes: 260°C Max. for 10 Seconds
Polarity: Cathode Indicated by Polarity Band
Marking: MUR105, MUR110, MUR115, MUR120, MUR130, MUR140, MUR160
175°C Operating Junction Temperature
Low Forward Voltage
Low Leakage Current
High Temperature Glass Passivated Junction
Reverse Voltage to 600 Volts
Mechanical Characteristics:
Case: Epoxy, Moulded
Weight: 0.4 gram (approximately)
Finish: All External Surfaces Corrosion Resistant and Terminal Leads are Readily solder able
Lead Temperature for Soldering Purposes: 260°C Max. for 10 Seconds
Polarity: Cathode Indicated by Polarity Band
Marking: MUR105, MUR110, MUR115, MUR120, MUR130, MUR140, MUR160
