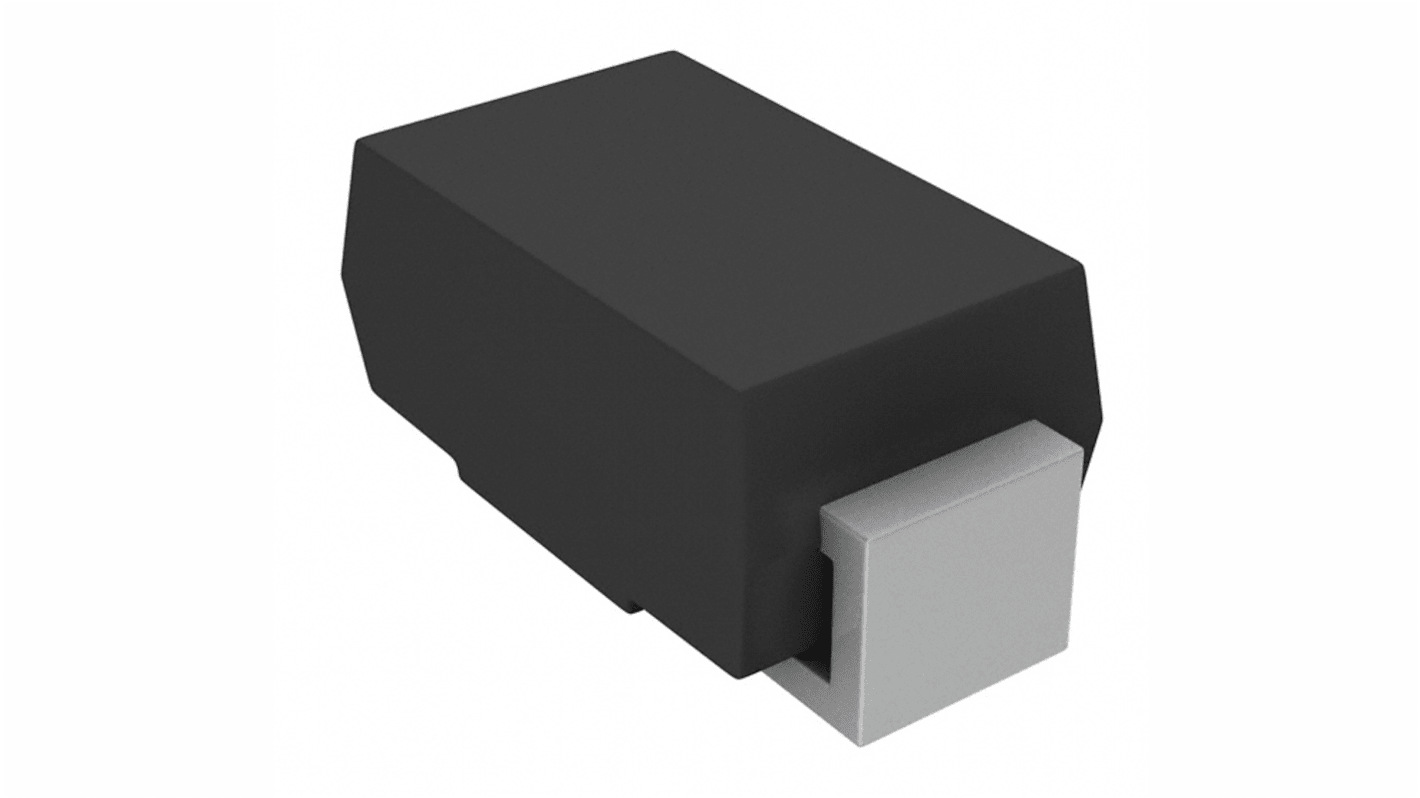

Vishay 20V 1A, Schottky Diode, 2-Pin DO-214AC B120-E3/61T

View this category
Bulk discount available

Subtotal (1 reel of 1800 units)*

£84.60

(exc. VAT)

£100.80

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 18 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Reel*
1800 - 1800£0.047£84.60
3600 - 7200£0.046£82.80
9000 +£0.045£81.00

*price indicative

RS Stock No.:
177-7548
Mfr. Part No.:
B120-E3/61T
Brand:
Vishay
Find similar products by selecting one or more attributes.
Select all

Brand

Vishay

Mounting Type

Surface Mount

Package Type

DO-214AC (SMA)

Maximum Continuous Forward Current

1A

Peak Reverse Repetitive Voltage

20V

Diode Configuration

Single

Rectifier Type

Schottky Rectifier

Diode Type

Schottky

Pin Count

2

Maximum Forward Voltage Drop

520mV

Number of Elements per Chip

1

Diode Technology

Schottky Barrier

Peak Non-Repetitive Forward Surge Current

30A

COO (Country of Origin):
CN

High Performance Schottky Rectifiers, 1A to 1.5A, Vishay Semiconductor


A range of Schottky Rectifiers from Vishay Semiconductor. These diodes exhibit very low forward voltage drop with a very fast switching action. The reverse recovery times of Schottky diodes are extremely short and they are suitable for applications requiring fast switching and low power loss.

The Vishay B120 series surface mount Schottky rectifier exhibit very low forward voltage drop with high surge capability. It use in low voltage, high frequency inverters, freewheeling, DC/DC converters, and polarity protection applications.

Operating junction and storage temperature range -65 to +150°C
Ideal for automated placement


Schottky Rectifiers, Vishay Semiconductor
