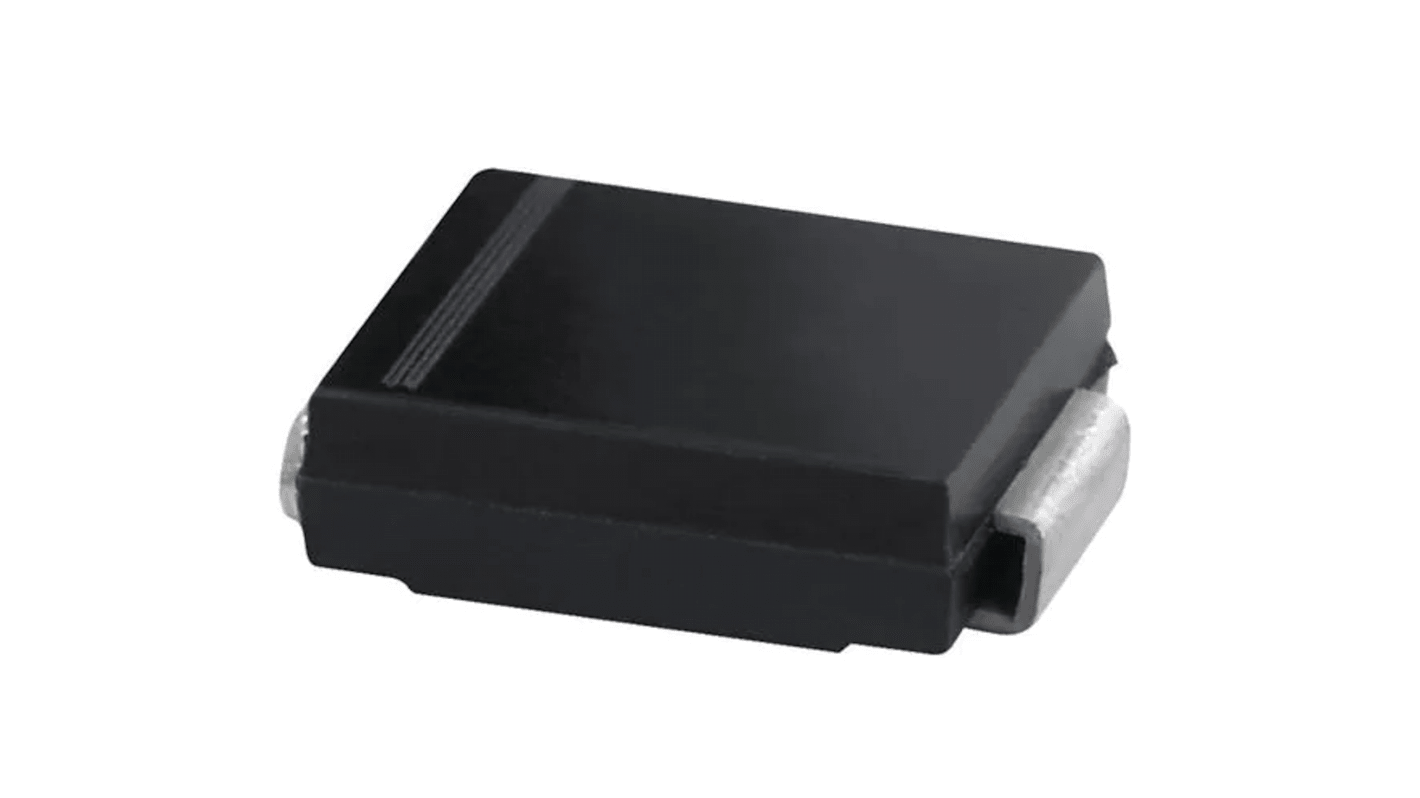

Vishay 1000V 3A, Rectifier Diode, 2-Pin DO-214AB S3M-E3/57T
- RS Stock No.:
- 177-7502
- Mfr. Part No.:
- S3M-E3/57T
- Brand:
- Vishay
Available to back order for despatch 24/05/2024
Added
Price Each (On a Reel of 850)
£0.125
(exc. VAT)
£0.15
(inc. VAT)
| Units | Per unit | Per Reel* |
| 850 - 850 | £0.125 | £106.25 |
| 1700 - 3400 | £0.118 | £100.30 |
| 4250 + | £0.115 | £97.75 |
| *price indicative | ||
- RS Stock No.:
- 177-7502
- Mfr. Part No.:
- S3M-E3/57T
- Brand:
- Vishay
Technical Reference
Legislation and Compliance
Product Details
Standard Recovery Rectifiers, 2A to 10A
Versatile and high-efficiency Standard Recovery Power Diodes in industry-standard package styles.
The Vishay S3M series surface mount Schottky rectifier exhibit very low forward voltage drop with low leakage current. It use in general purpose rectification of power supplies, inverters, converters and freewheeling diodes for consumer, automotive and telecommunication.
Operating junction and storage temperature range -50 to +150°C
Ideal for automated placement
Ideal for automated placement
Diodes and Rectifiers, Vishay Semiconductor
Specifications
Attribute | Value |
|---|---|
| Mounting Type | Surface Mount |
| Package Type | DO-214AB (SMC) |
| Maximum Continuous Forward Current | 3A |
| Peak Reverse Repetitive Voltage | 1000V |
| Diode Configuration | Single |
| Rectifier Type | General Purpose |
| Diode Type | Rectifier |
| Pin Count | 2 |
| Maximum Forward Voltage Drop | 1.15V |
| Number of Elements per Chip | 1 |
| Diode Technology | Silicon Junction |
| Peak Reverse Recovery Time | 2.5µs |
| Peak Non-Repetitive Forward Surge Current | 100A |
