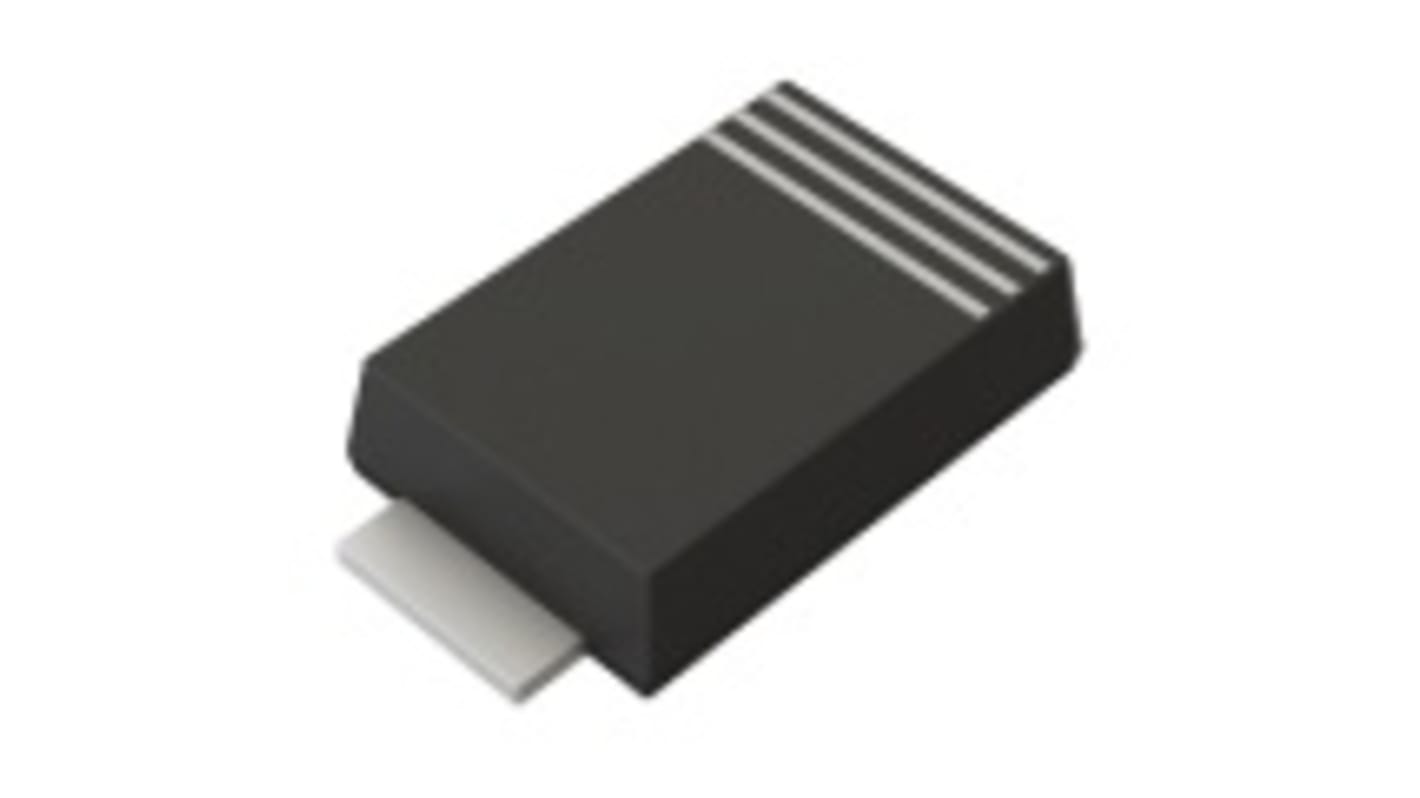

ROHM 40 V 2 A Diode Schottky 2-Pin SOD-128 RB060LAM-40TR
- RS Stock No.:
- 171-4443
- Mfr. Part No.:
- RB060LAM-40TR
- Brand:
- ROHM
Bulk discount available
Subtotal (1 pack of 25 units)*
£6.35
(exc. VAT)
£7.625
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 29 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 25 - 100 | £0.254 | £6.35 |
| 125 - 225 | £0.19 | £4.75 |
| 250 - 475 | £0.174 | £4.35 |
| 500 - 975 | £0.158 | £3.95 |
| 1000 + | £0.147 | £3.68 |
*price indicative
- RS Stock No.:
- 171-4443
- Mfr. Part No.:
- RB060LAM-40TR
- Brand:
- ROHM
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ROHM | |
| Product Type | Diode | |
| Mount Type | Surface | |
| Package Type | SOD-128 | |
| Maximum Continuous Forward Current If | 2A | |
| Peak Reverse Repetitive Voltage Vrrm | 40V | |
| Series | RB060LAM | |
| Diode Configuration | Single | |
| Rectifier Type | Schottky | |
| Pin Count | 2 | |
| Peak Reverse Current Ir | 100μA | |
| Minimum Operating Temperature | -55°C | |
| Peak Non-Repetitive Forward Surge Current Ifsm | 80A | |
| Maximum Forward Voltage Vf | 500mV | |
| Maximum Operating Temperature | 150°C | |
| Width | 2.7 mm | |
| Height | 1.05mm | |
| Standards/Approvals | No | |
| Length | 3.9mm | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand ROHM | ||
Product Type Diode | ||
Mount Type Surface | ||
Package Type SOD-128 | ||
Maximum Continuous Forward Current If 2A | ||
Peak Reverse Repetitive Voltage Vrrm 40V | ||
Series RB060LAM | ||
Diode Configuration Single | ||
Rectifier Type Schottky | ||
Pin Count 2 | ||
Peak Reverse Current Ir 100μA | ||
Minimum Operating Temperature -55°C | ||
Peak Non-Repetitive Forward Surge Current Ifsm 80A | ||
Maximum Forward Voltage Vf 500mV | ||
Maximum Operating Temperature 150°C | ||
Width 2.7 mm | ||
Height 1.05mm | ||
Standards/Approvals No | ||
Length 3.9mm | ||
Automotive Standard No | ||
- COO (Country of Origin):
- JP
RB060LAM-40 is a schottky barrier diode with low VF, suitable for general rectification.
Small power mold type (PMDTM)
High reliability
Low VF
