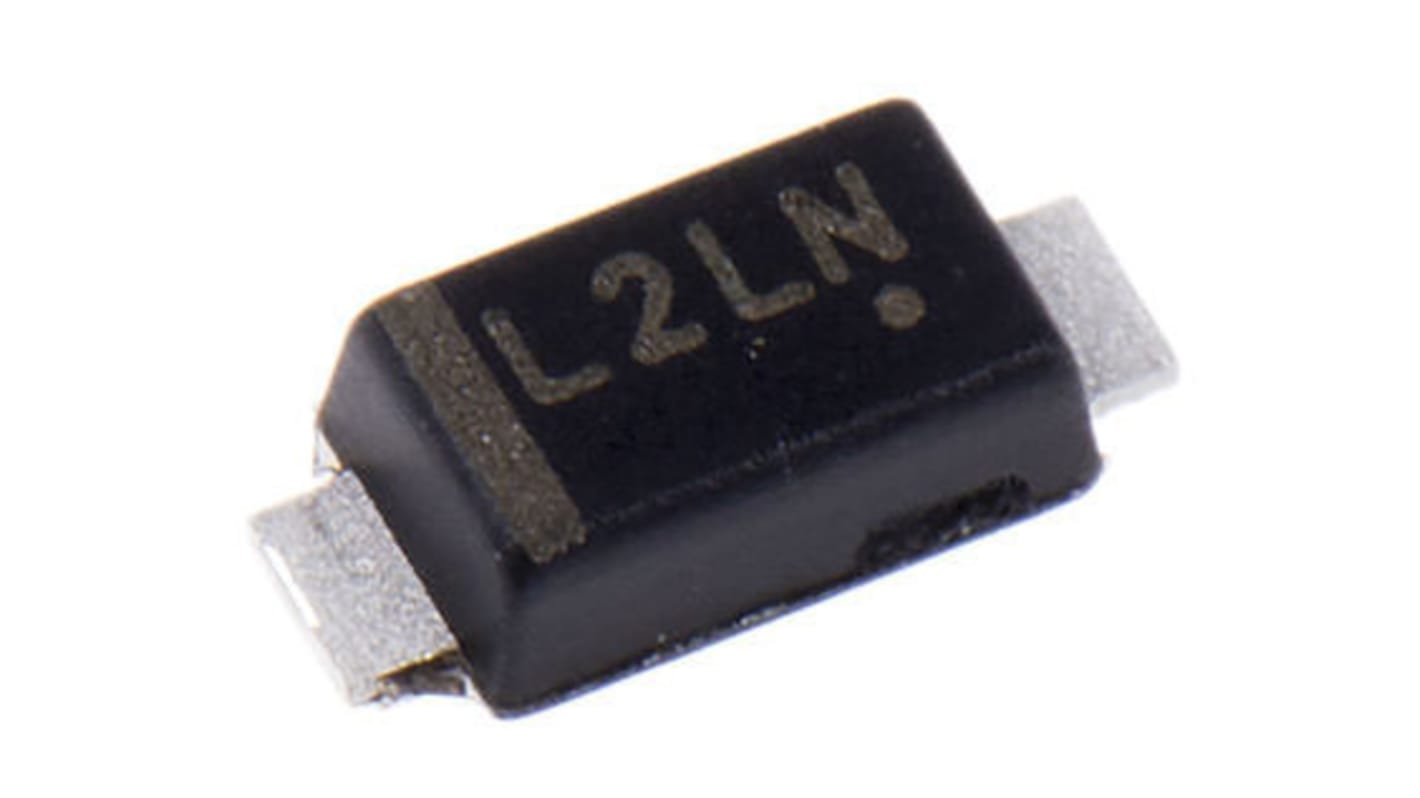

ROHM 40 V 2 A Schottky Barrier Diode Schottky 2-Pin SOD-123FL RB060MM-40TR
- RS Stock No.:
- 133-3228
- Mfr. Part No.:
- RB060MM-40TR
- Brand:
- ROHM
Bulk discount available
View bulk pricing optionsSubtotal (1 pack of 50 units)*
£8.30
(exc. VAT)
£9.95
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit | Per Pack* |
|---|---|---|
| 50 - 200 | £0.166 | £8.30 |
| 250 - 450 | £0.149 | £7.45 |
| 500 - 2450 | £0.137 | £6.85 |
| 2500 - 4950 | £0.132 | £6.60 |
| 5000 + | £0.129 | £6.45 |
*price indicative
- RS Stock No.:
- 133-3228
- Mfr. Part No.:
- RB060MM-40TR
- Brand:
- ROHM
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ROHM | |
| Product Type | Schottky Barrier Diode | |
| Mount Type | Surface | |
| Package Type | SOD-123FL | |
| Maximum Continuous Forward Current If | 2A | |
| Peak Reverse Repetitive Voltage Vrrm | 40V | |
| Series | RB060MM-40 | |
| Diode Configuration | Single | |
| Rectifier Type | Schottky | |
| Pin Count | 2 | |
| Minimum Operating Temperature | -55°C | |
| Peak Reverse Current Ir | 500mA | |
| Peak Non-Repetitive Forward Surge Current Ifsm | 30A | |
| Maximum Forward Voltage Vf | 560mV | |
| Peak Reverse Recovery Time trr | 8.2ns | |
| Maximum Operating Temperature | 150°C | |
| Length | 2.6mm | |
| Standards/Approvals | No | |
| Diameter | 1.55mm | |
| Width | 1.6mm | |
| Height | 800μm | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand ROHM | ||
Product Type Schottky Barrier Diode | ||
Mount Type Surface | ||
Package Type SOD-123FL | ||
Maximum Continuous Forward Current If 2A | ||
Peak Reverse Repetitive Voltage Vrrm 40V | ||
Series RB060MM-40 | ||
Diode Configuration Single | ||
Rectifier Type Schottky | ||
Pin Count 2 | ||
Minimum Operating Temperature -55°C | ||
Peak Reverse Current Ir 500mA | ||
Peak Non-Repetitive Forward Surge Current Ifsm 30A | ||
Maximum Forward Voltage Vf 560mV | ||
Peak Reverse Recovery Time trr 8.2ns | ||
Maximum Operating Temperature 150°C | ||
Length 2.6mm | ||
Standards/Approvals No | ||
Diameter 1.55mm | ||
Width 1.6mm | ||
Height 800μm | ||
Automotive Standard No | ||
Schottky Barrier Diodes, 1A to 30A, ROHM
Diodes and Rectifiers, ROHM Semiconductor
