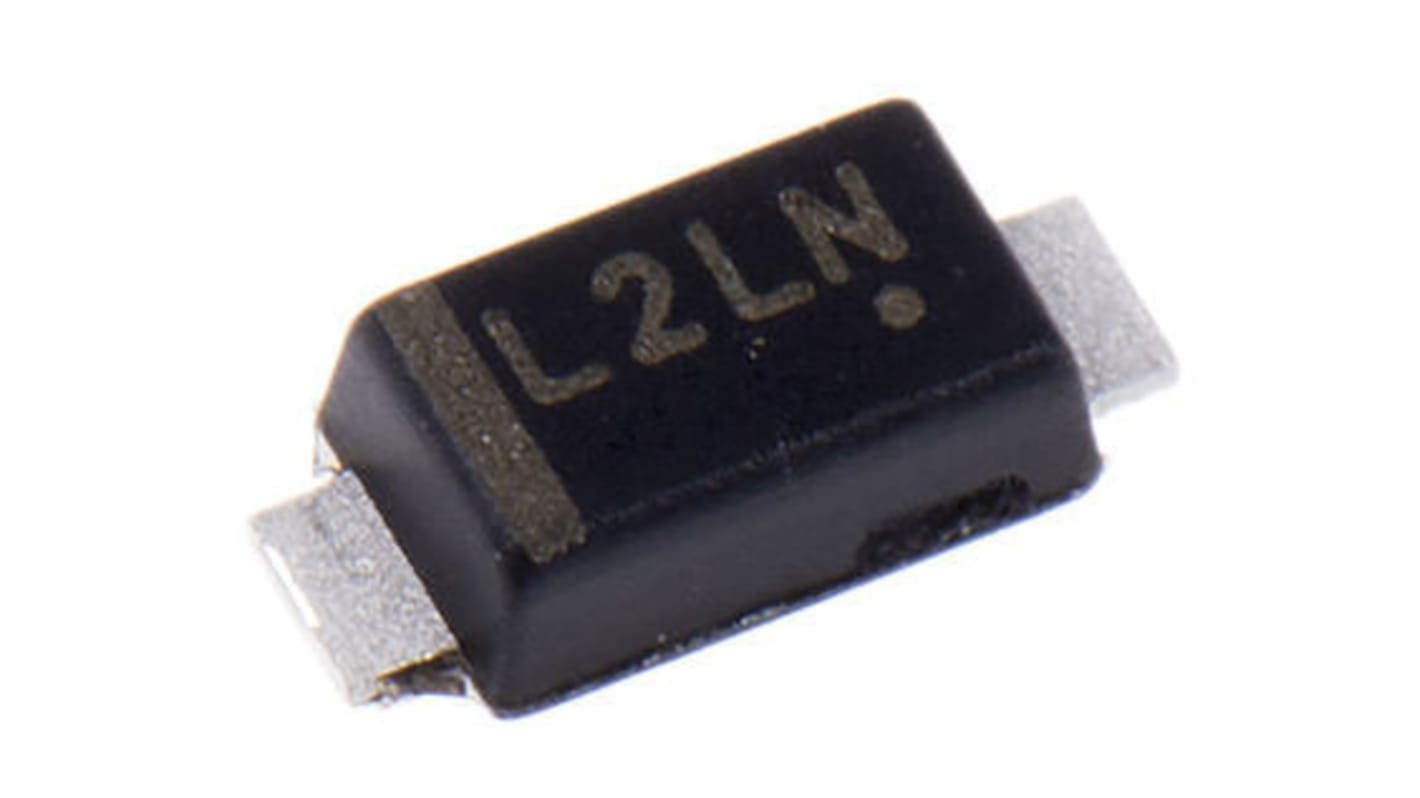

ROHM 40 V 1 A Schottky Barrier Diode Schottky 2-Pin SOD-123 RB168MM-40TR
- RS Stock No.:
- 133-3239
- Mfr. Part No.:
- RB168MM-40TR
- Brand:
- ROHM
Bulk discount available
Subtotal (1 pack of 50 units)*
£12.15
(exc. VAT)
£14.60
(inc. VAT)
FREE delivery for orders over £50.00
Stock information currently inaccessible
Units | Per unit | Per Pack* |
|---|---|---|
| 50 - 200 | £0.243 | £12.15 |
| 250 - 450 | £0.219 | £10.95 |
| 500 - 2450 | £0.202 | £10.10 |
| 2500 - 4950 | £0.194 | £9.70 |
| 5000 + | £0.19 | £9.50 |
*price indicative
- RS Stock No.:
- 133-3239
- Mfr. Part No.:
- RB168MM-40TR
- Brand:
- ROHM
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ROHM | |
| Product Type | Schottky Barrier Diode | |
| Mount Type | Surface | |
| Package Type | SOD-123 | |
| Maximum Continuous Forward Current If | 1A | |
| Peak Reverse Repetitive Voltage Vrrm | 40V | |
| Series | RB168MM-40 | |
| Diode Configuration | Single | |
| Rectifier Type | Schottky | |
| Pin Count | 2 | |
| Maximum Forward Voltage Vf | 650mV | |
| Peak Non-Repetitive Forward Surge Current Ifsm | 40A | |
| Minimum Operating Temperature | -55°C | |
| Peak Reverse Current Ir | 550nA | |
| Maximum Operating Temperature | 150°C | |
| Peak Reverse Recovery Time trr | 8ns | |
| Width | 1.6 mm | |
| Length | 2.6mm | |
| Height | 0.8mm | |
| Standards/Approvals | JEDEC : SOD-123FL, ROHM : PMDU | |
| Automotive Standard | AEC-Q101 | |
| Select all | ||
|---|---|---|
Brand ROHM | ||
Product Type Schottky Barrier Diode | ||
Mount Type Surface | ||
Package Type SOD-123 | ||
Maximum Continuous Forward Current If 1A | ||
Peak Reverse Repetitive Voltage Vrrm 40V | ||
Series RB168MM-40 | ||
Diode Configuration Single | ||
Rectifier Type Schottky | ||
Pin Count 2 | ||
Maximum Forward Voltage Vf 650mV | ||
Peak Non-Repetitive Forward Surge Current Ifsm 40A | ||
Minimum Operating Temperature -55°C | ||
Peak Reverse Current Ir 550nA | ||
Maximum Operating Temperature 150°C | ||
Peak Reverse Recovery Time trr 8ns | ||
Width 1.6 mm | ||
Length 2.6mm | ||
Height 0.8mm | ||
Standards/Approvals JEDEC : SOD-123FL, ROHM : PMDU | ||
Automotive Standard AEC-Q101 | ||
Schottky Barrier Diodes, 1A to 30A, ROHM
Diodes and Rectifiers, ROHM Semiconductor
