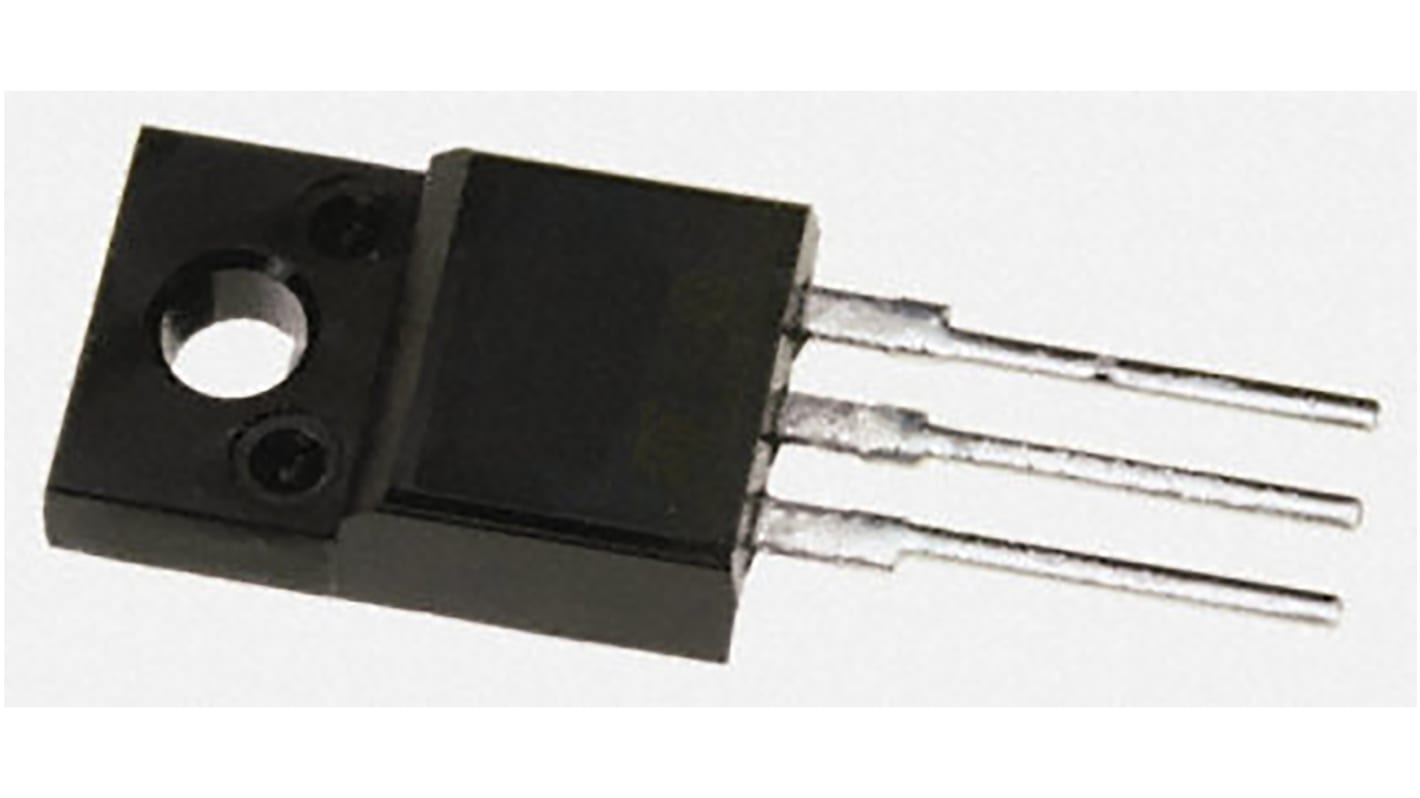

STMicroelectronics 45 V 30 A Diode Schottky 3-Pin TO-220ABFP
- RS Stock No.:
- 168-6230
- Mfr. Part No.:
- STPS30L45CFP
- Brand:
- STMicroelectronics
Subtotal (1 tube of 50 units)*
£27.95
(exc. VAT)
£33.55
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 09 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tube* |
|---|---|---|
| 50 + | £0.559 | £27.95 |
*price indicative
- RS Stock No.:
- 168-6230
- Mfr. Part No.:
- STPS30L45CFP
- Brand:
- STMicroelectronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | STMicroelectronics | |
| Mount Type | Through Hole | |
| Product Type | Diode | |
| Package Type | TO-220ABFP | |
| Maximum Continuous Forward Current If | 30A | |
| Peak Reverse Repetitive Voltage Vrrm | 45V | |
| Diode Configuration | Common Cathode | |
| Series | STPS30L45C | |
| Rectifier Type | Schottky | |
| Pin Count | 3 | |
| Peak Non-Repetitive Forward Surge Current Ifsm | 220A | |
| Peak Reverse Current Ir | 400μA | |
| Minimum Operating Temperature | -65°C | |
| Maximum Forward Voltage Vf | 0.5V | |
| Maximum Operating Temperature | 150°C | |
| Standards/Approvals | No | |
| Height | 9.3mm | |
| Length | 10.4mm | |
| Width | 4.6 mm | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand STMicroelectronics | ||
Mount Type Through Hole | ||
Product Type Diode | ||
Package Type TO-220ABFP | ||
Maximum Continuous Forward Current If 30A | ||
Peak Reverse Repetitive Voltage Vrrm 45V | ||
Diode Configuration Common Cathode | ||
Series STPS30L45C | ||
Rectifier Type Schottky | ||
Pin Count 3 | ||
Peak Non-Repetitive Forward Surge Current Ifsm 220A | ||
Peak Reverse Current Ir 400μA | ||
Minimum Operating Temperature -65°C | ||
Maximum Forward Voltage Vf 0.5V | ||
Maximum Operating Temperature 150°C | ||
Standards/Approvals No | ||
Height 9.3mm | ||
Length 10.4mm | ||
Width 4.6 mm | ||
Automotive Standard No | ||
Schottky Barrier Diodes, 30A, STMicroelectronics
Diodes and Rectifiers, STMicroelectronics
