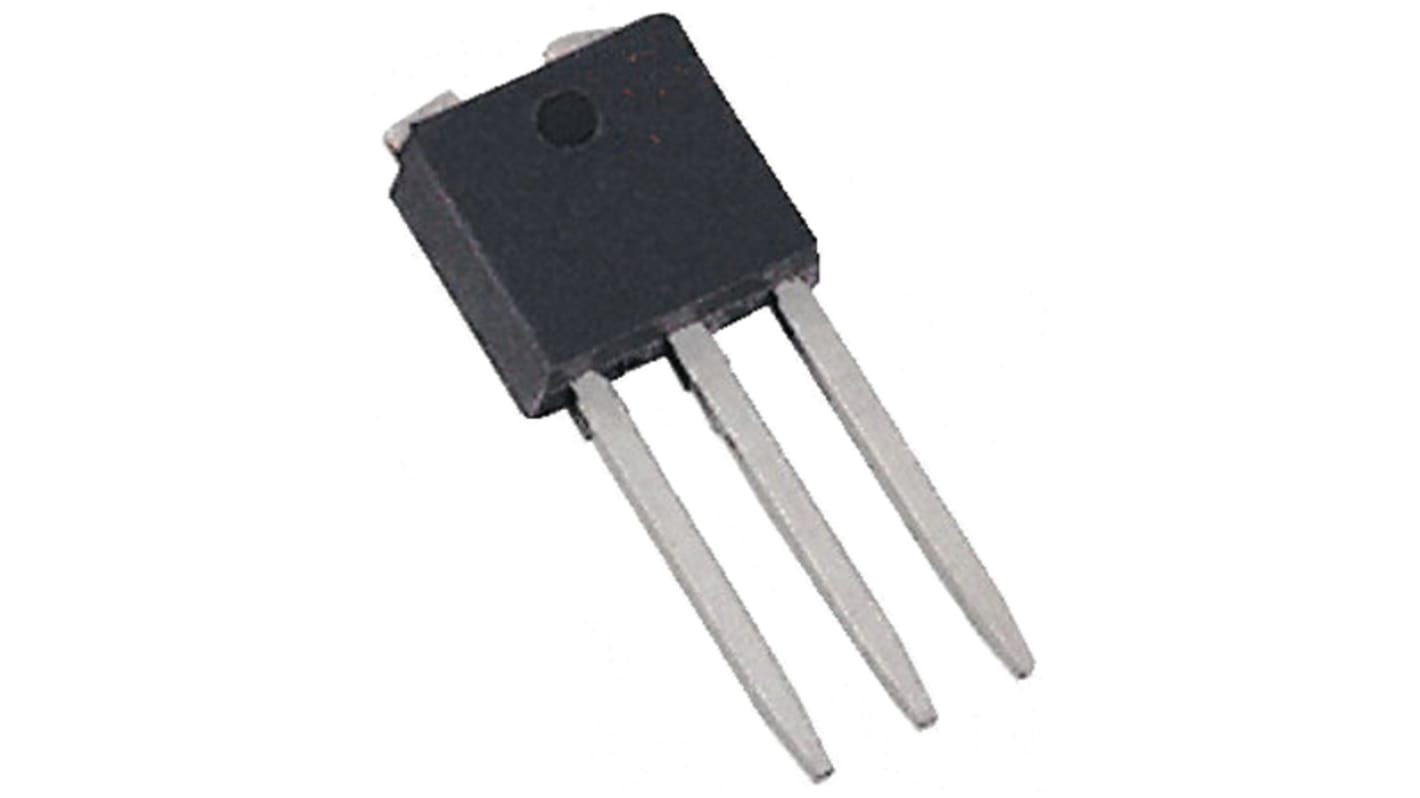

STMicroelectronics 45 V 30 A Diode Schottky 3-Pin I2PAK (TO-262) FERD30M45CR
- RS Stock No.:
- 163-7360
- Mfr. Part No.:
- FERD30M45CR
- Brand:
- STMicroelectronics
Subtotal (1 tube of 50 units)*
£29.60
(exc. VAT)
£35.50
(inc. VAT)
FREE delivery for orders over £50.00
Last RS stock
- Final 350 unit(s), ready to ship
Units | Per unit | Per Tube* |
|---|---|---|
| 50 + | £0.592 | £29.60 |
*price indicative
- RS Stock No.:
- 163-7360
- Mfr. Part No.:
- FERD30M45CR
- Brand:
- STMicroelectronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | STMicroelectronics | |
| Mount Type | Through Hole | |
| Product Type | Diode | |
| Package Type | I2PAK (TO-262) | |
| Maximum Continuous Forward Current If | 30A | |
| Peak Reverse Repetitive Voltage Vrrm | 45V | |
| Series | FERD30M45C | |
| Diode Configuration | Dual Centre Tap | |
| Rectifier Type | Schottky | |
| Pin Count | 3 | |
| Peak Reverse Current Ir | 50mA | |
| Maximum Forward Voltage Vf | 470mV | |
| Peak Non-Repetitive Forward Surge Current Ifsm | 250A | |
| Minimum Operating Temperature | 65°C | |
| Maximum Operating Temperature | 175°C | |
| Standards/Approvals | UL94 V0 | |
| Diameter | 3.85 mm | |
| Length | 10.4mm | |
| Height | 10.75mm | |
| Width | 4.6 mm | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand STMicroelectronics | ||
Mount Type Through Hole | ||
Product Type Diode | ||
Package Type I2PAK (TO-262) | ||
Maximum Continuous Forward Current If 30A | ||
Peak Reverse Repetitive Voltage Vrrm 45V | ||
Series FERD30M45C | ||
Diode Configuration Dual Centre Tap | ||
Rectifier Type Schottky | ||
Pin Count 3 | ||
Peak Reverse Current Ir 50mA | ||
Maximum Forward Voltage Vf 470mV | ||
Peak Non-Repetitive Forward Surge Current Ifsm 250A | ||
Minimum Operating Temperature 65°C | ||
Maximum Operating Temperature 175°C | ||
Standards/Approvals UL94 V0 | ||
Diameter 3.85 mm | ||
Length 10.4mm | ||
Height 10.75mm | ||
Width 4.6 mm | ||
Automotive Standard No | ||
ST’s FERD series of diodes facilitate the design of efficient, reliable, high power-density smart phone and tablet battery chargers, Compact adapters and switched-mode power supplies. Available in single and dual configurations from 15A to 60A and 45V, 50V and 60V ratings, they offer a unique trade-off between low forward voltage drop (VF) and low leakage current (IR). This allows designers to meet the most stringent energy-efficiency standard requirements including Energy Star 6.0 without the expense of using synchronous rectification techniques.
ST Advanced rectifier process
Stable leakage current over reverse voltage
Reduced leakage current
Low forward voltage drop
High frequency operation
