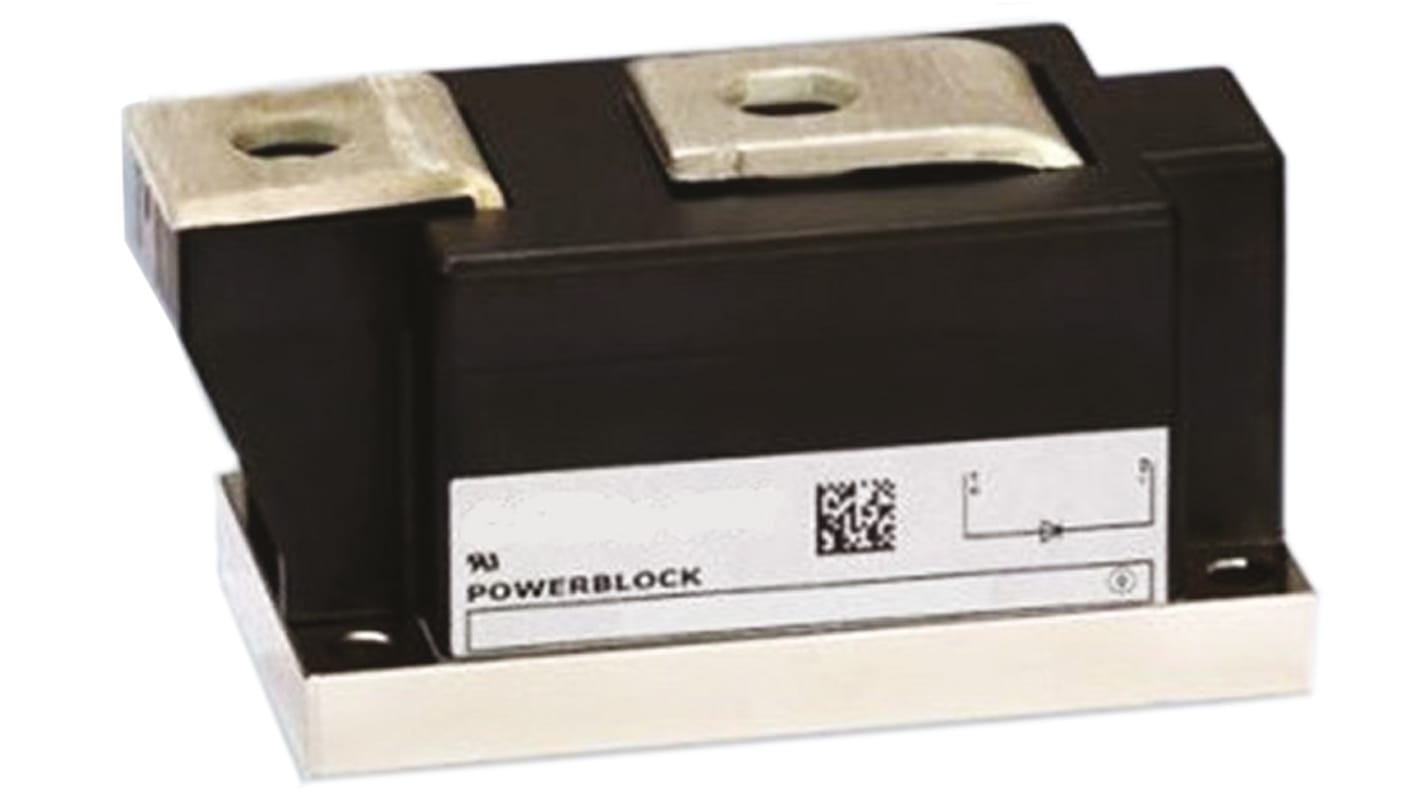

Infineon 1200 V 600 A Diode Rectifier Diode 2-Pin DZ600N12KHPSA1

RS Stock No.:: 165-5401
Mfr. Part No.:: DZ600N12KHPSA1
Brand:: Infineon

Infineon 1200 V 600 A Diode Rectifier Diode 2-Pin DZ600N12KHPSA1

Bulk discount available

Subtotal (1 tray of 3 units)*

£430.29

(exc. VAT)

£516.36

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

3 unit(s) ready to ship
Plus 3 unit(s) shipping from 19 February 2026
Plus 3 unit(s) shipping from 10 June 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit	Per Tray*
3 - 3	£143.43	£430.29
6 +	£136.26	£408.78

*price indicative

RS Stock No.:: 165-5401
Mfr. Part No.:: DZ600N12KHPSA1
Brand:: Infineon

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Infineon
	Mount Type	Surface
	Product Type	Diode
	Maximum Continuous Forward Current If	600A
	Peak Reverse Repetitive Voltage Vrrm	1200V
	Diode Configuration	Single
	Series	DZ600N12K
	Rectifier Type	Rectifier Diode
	Pin Count	2
	Maximum Forward Voltage Vf	1.4V
	Peak Non-Repetitive Forward Surge Current Ifsm	22kA
	Minimum Operating Temperature	-40°C
	Peak Reverse Current Ir	40mA
	Maximum Operating Temperature	150°C
	Width	50 mm
	Height	52mm
	Length	101mm
	Standards/Approvals	No
	Automotive Standard	No

	Select all
	Brand Infineon
	Mount Type Surface
	Product Type Diode
	Maximum Continuous Forward Current If 600A
	Peak Reverse Repetitive Voltage Vrrm 1200V
	Diode Configuration Single
	Series DZ600N12K
	Rectifier Type Rectifier Diode
	Pin Count 2
	Maximum Forward Voltage Vf 1.4V
	Peak Non-Repetitive Forward Surge Current Ifsm 22kA
	Minimum Operating Temperature -40°C
	Peak Reverse Current Ir 40mA
	Maximum Operating Temperature 150°C
	Width 50 mm
	Height 52mm
	Length 101mm
	Standards/Approvals No
	Automotive Standard No

COO (Country of Origin):: CN

Infineon DZ600N Series Diode, 600A Maximum Continuous Forward Current, 1200V Peak Reverse Repetitive Voltage - DZ600N12KHPSA1

This diode is a high-performance single diode configuration designed specifically for demanding applications. With a maximum continuous forward current of 600A and a peak reverse repetitive voltage of 1200V, this silicon diode guarantees reliability in high-stress environments. Ideal for surface mounting, it enhances the efficiency and compactness of electronic designs.

Features & Benefits

• Designed for high current applications with 600A continuous current

• Capable of handling 1200V reverse voltage for robust performance

• Optimised thermal resistance supports better heat management

• Versatile use as a general-purpose rectifier diode

Applications

• Used in power supply circuits requiring high current handling

• Ideal for automation equipment where reliability is crucial

• Effective in motor drives and control

• Suitable for industrial power electronics systems

How does the low forward voltage drop benefit system efficiency?

The low forward voltage drop of 1.4V minimises power losses, enhancing overall system efficiency by ensuring more energy is converted effectively in high current applications.

What thermal management features support the diode's operation?

With a maximum junction temperature of 150°C and optimised thermal resistance, it ensures stable operation even under demanding conditions, extending the component's lifespan.

How does the diode perform during peak load conditions?

It is designed to withstand a peak non-repetitive forward surge current of 22kA, making it well-suited for applications where sharp load changes occur, ensuring reliability under transient conditions.
