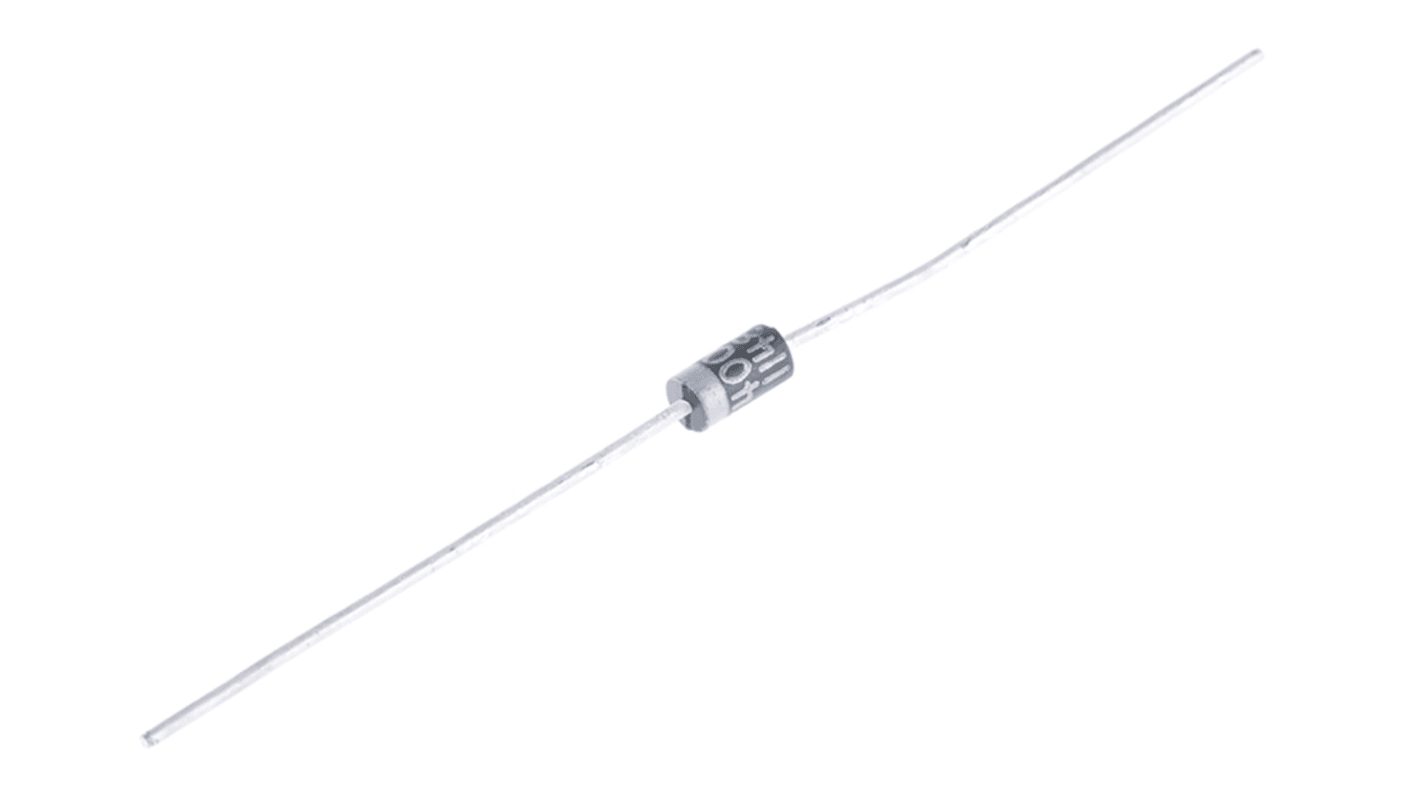

Vishay 800V 1A, Ultrafast Rectifiers Diode, 2-Pin DO-204AL UF4006-E3/54
- RS Stock No.:
- 165-2426
- Mfr. Part No.:
- UF4006-E3/54
- Brand:
- Vishay
Subtotal (1 reel of 5500 units)*
£434.50
(exc. VAT)
£522.50
(inc. VAT)
FREE delivery for orders over £50.00
Last RS stock
- Final 16,500 unit(s), ready to ship
Units | Per unit | Per Reel* |
---|---|---|
5500 + | £0.079 | £434.50 |
*price indicative
- RS Stock No.:
- 165-2426
- Mfr. Part No.:
- UF4006-E3/54
- Brand:
- Vishay
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Vishay | |
Mounting Type | Through Hole | |
Package Type | DO-204AL | |
Maximum Continuous Forward Current | 1A | |
Peak Reverse Repetitive Voltage | 800V | |
Diode Configuration | Single | |
Rectifier Type | General Purpose | |
Diode Type | Ultrafast Rectifiers | |
Pin Count | 2 | |
Maximum Forward Voltage Drop | 1.7V | |
Number of Elements per Chip | 1 | |
Diode Technology | Silicon Junction | |
Peak Reverse Recovery Time | 75ns | |
Diameter | 2.7mm | |
Peak Non-Repetitive Forward Surge Current | 30A | |
Select all | ||
---|---|---|
Brand Vishay | ||
Mounting Type Through Hole | ||
Package Type DO-204AL | ||
Maximum Continuous Forward Current 1A | ||
Peak Reverse Repetitive Voltage 800V | ||
Diode Configuration Single | ||
Rectifier Type General Purpose | ||
Diode Type Ultrafast Rectifiers | ||
Pin Count 2 | ||
Maximum Forward Voltage Drop 1.7V | ||
Number of Elements per Chip 1 | ||
Diode Technology Silicon Junction | ||
Peak Reverse Recovery Time 75ns | ||
Diameter 2.7mm | ||
Peak Non-Repetitive Forward Surge Current 30A | ||
Ultrafast Recovery Rectifiers 1A, Vishay Semiconductor
Vishay ultrafast recovery rectifiers have very fast reverse recovery times as low as 15ns and voltage levels as high as 1500V. Typical applications include very high frequency switched mode power supplies (SMPS), inverters, and freewheeling diodes.
Diodes and Rectifiers, Vishay Semiconductor
