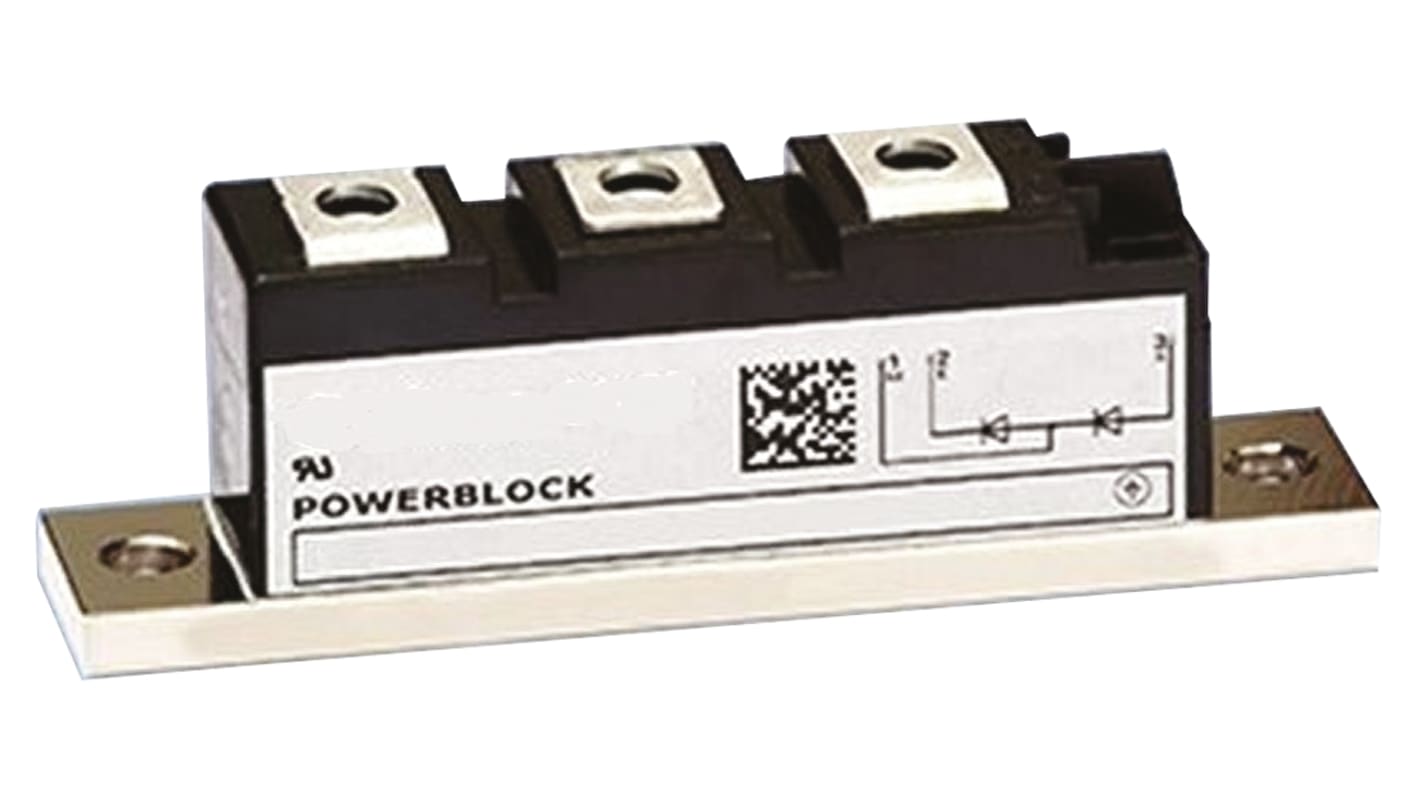

Infineon 1600V 89A, Dual Rectifier Diode, 3-Pin DD89N16KHPSA1

RS Stock No.:: 124-8797
Mfr. Part No.:: DD89N16KHPSA1
Brand:: Infineon

Infineon 1600V 89A, Dual Rectifier Diode, 3-Pin DD89N16KHPSA1

Available to back order for despatch 06/06/2025

Added

Price Each (On a Reel of 15)

£87.19

(exc. VAT)

£104.63

(inc. VAT)

Units	Per unit	Per Reel*
15 +	£87.19	£1,307.85
*price indicative

RS Stock No.:: 124-8797
Mfr. Part No.:: DD89N16KHPSA1
Brand:: Infineon

Technical Reference

Legislation and Compliance

COO (Country of Origin):: CN

Product Details

Rectifier Diode Module, DD Series, Infineon

The Infineon PowerBLOCK Dual Diodes (DD Series) Rectifier Diode modules have configurations such as Fast diode, and Rectifier diodes. The pressure contact technology rectifier diode module ranges from 20mm up to 60mm, with voltage ranges up to 1800V and 600A current. The PowerBLOCK Rectifier diode has an electrical insulated base which consists of an isolated copper base plate. They can be used in power controllers, soft starter and drive applications.

PowerBLOCK Housing
Easy mounting
Pressure Contact technology
Fail safe / Short on fail - preventing arcing on fail

Diodes and Rectifiers, Infineon

Specifications

Attribute	Value
Mounting Type	Panel Mount
Maximum Continuous Forward Current	89A
Peak Reverse Repetitive Voltage	1600V
Diode Configuration	Series
Rectifier Type	General Purpose
Diode Type	Rectifier
Pin Count	3
Maximum Forward Voltage Drop	1.5V
Number of Elements per Chip	2
Diode Technology	Silicon Junction
Peak Non-Repetitive Forward Surge Current	2.8kA
