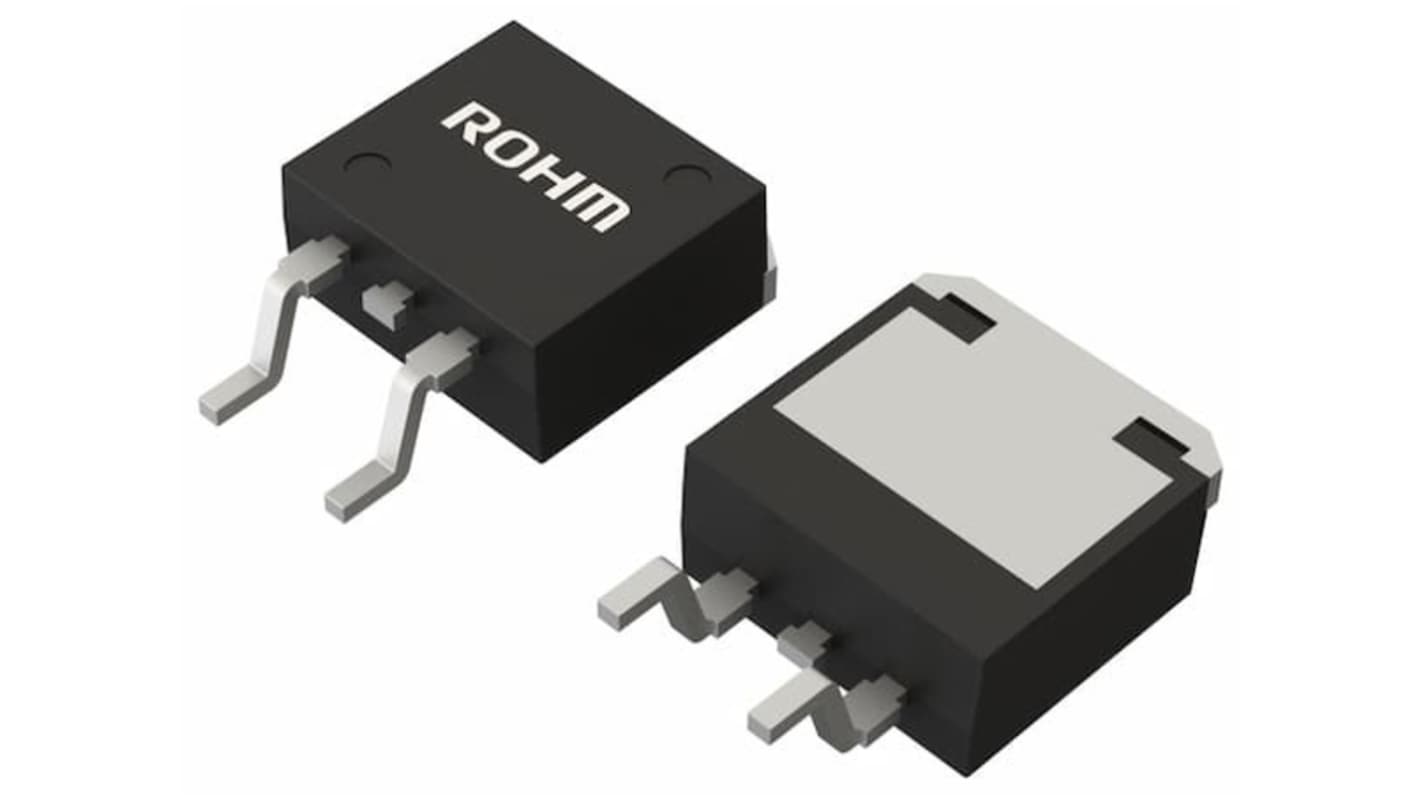

ROHM 100V 60A, Dual Schottky Rectifier & Schottky Diode, 3-Pin D2PAK YQ60NL10CDFHTL
- RS Stock No.:
- 687-448P
- Mfr. Part No.:
- YQ60NL10CDFHTL
- Brand:
- ROHM
Bulk discount available
Subtotal 20 units (supplied on a continuous strip)*
£55.30
(exc. VAT)
£66.36
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 27 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 20 - 98 | £2.765 |
| 100 - 198 | £2.14 |
| 200 + | £1.385 |
*price indicative
- RS Stock No.:
- 687-448P
- Mfr. Part No.:
- YQ60NL10CDFHTL
- Brand:
- ROHM
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ROHM | |
| Mounting Type | Surface Mount | |
| Package Type | TO-263L | |
| Maximum Continuous Forward Current | 60A | |
| Peak Reverse Repetitive Voltage | 100V | |
| Series | YQ60NL10CDFH | |
| Diode Type | Schottky | |
| Pin Count | 3 | |
| Number of Elements per Chip | 2 | |
Select all | ||
|---|---|---|
Brand ROHM | ||
Mounting Type Surface Mount | ||
Package Type TO-263L | ||
Maximum Continuous Forward Current 60A | ||
Peak Reverse Repetitive Voltage 100V | ||
Series YQ60NL10CDFH | ||
Diode Type Schottky | ||
Pin Count 3 | ||
Number of Elements per Chip 2 | ||
The ROHM Schottky Barrier Diode designed for applications requiring exceptional reliability and efficiency. With AEC-Q101 qualification, it is specifically engineered for use in switching power supplies and reverse polarity protection. This diode exhibits excellent thermal resistance and a low forward voltage drop, ensuring optimal operation under varying conditions. The forward current rating of 60 A and a peak forward surge current capability of 150 A make it suitable for demanding tasks, while its encapsulated design enhances durability and facilitates integration into compact spaces.
AEC Q101 qualified for high reliability across automotive applications
Low forward voltage drop ensuring efficient operation
High average rectified forward current rating of 60 A for robust performance
Non-repetitive peak forward surge current capability up to 150 A, ideal for transient loads
Exceptional thermal resistance for improved heat management
Optimised for use in space-constrained designs with a power mold type structure
Low capacitance improving switching speeds and efficiency
Designed for easy integration in switching power supply circuits
Comes in embossed tape packaging for safe and efficient transport
Low forward voltage drop ensuring efficient operation
High average rectified forward current rating of 60 A for robust performance
Non-repetitive peak forward surge current capability up to 150 A, ideal for transient loads
Exceptional thermal resistance for improved heat management
Optimised for use in space-constrained designs with a power mold type structure
Low capacitance improving switching speeds and efficiency
Designed for easy integration in switching power supply circuits
Comes in embossed tape packaging for safe and efficient transport
