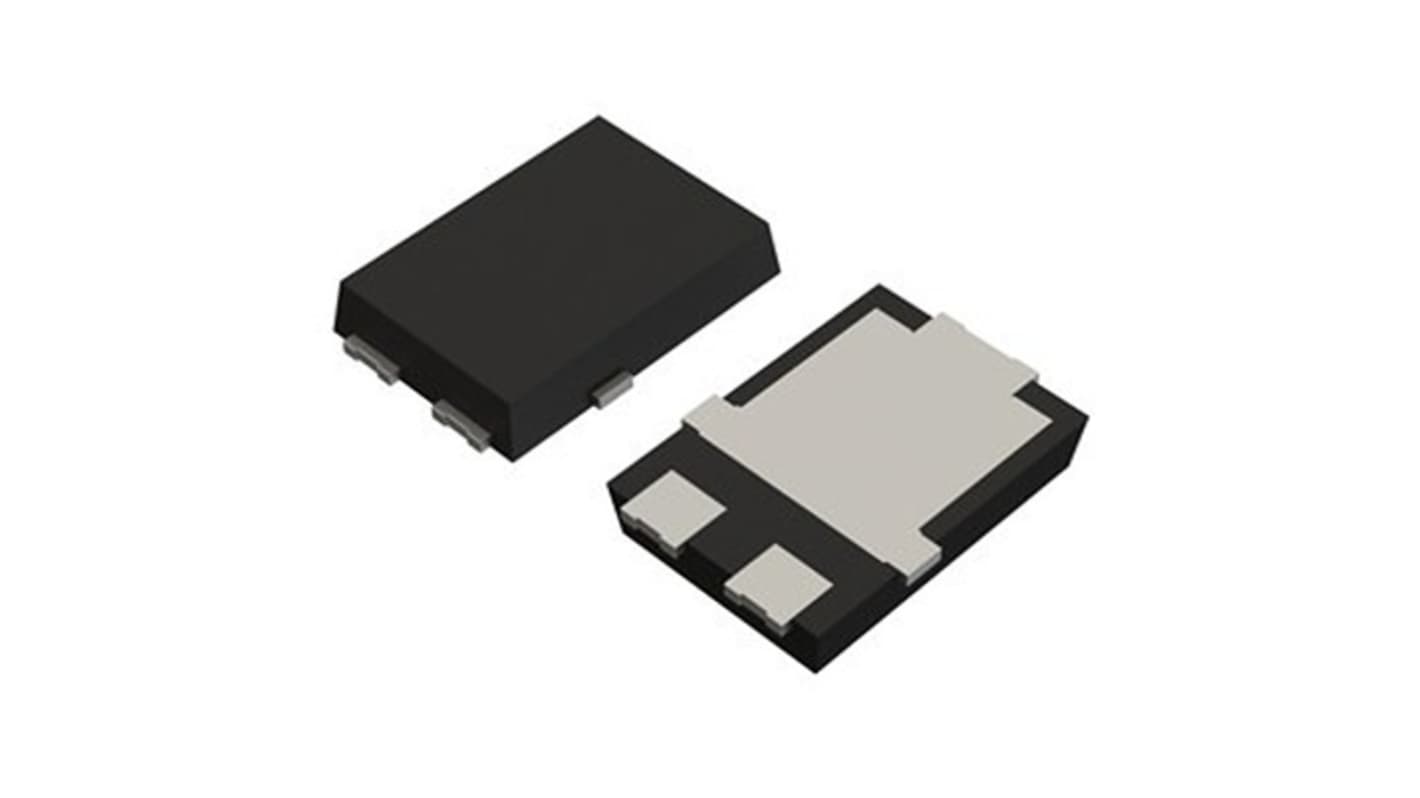

ROHM 200V 5A, Dual Schottky Rectifier & Schottky Diode, 3-Pin TO-277GE RB078RSM20STL1
- RS Stock No.:
- 687-374P
- Mfr. Part No.:
- RB078RSM20STL1
- Brand:
- ROHM
Bulk discount available
Subtotal 20 units (supplied on a continuous strip)*
£11.80
(exc. VAT)
£14.20
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 03 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 20 - 48 | £0.59 |
| 50 - 198 | £0.295 |
| 200 - 998 | £0.29 |
| 1000 + | £0.285 |
*price indicative
- RS Stock No.:
- 687-374P
- Mfr. Part No.:
- RB078RSM20STL1
- Brand:
- ROHM
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ROHM | |
| Mounting Type | Surface Mount | |
| Package Type | TO-277GE | |
| Maximum Continuous Forward Current | 5A | |
| Peak Reverse Repetitive Voltage | 200V | |
| Diode Configuration | Single | |
| Series | RB078RSM20ST | |
| Diode Type | Schottky | |
| Pin Count | 3 | |
| Number of Elements per Chip | 2 | |
Select all | ||
|---|---|---|
Brand ROHM | ||
Mounting Type Surface Mount | ||
Package Type TO-277GE | ||
Maximum Continuous Forward Current 5A | ||
Peak Reverse Repetitive Voltage 200V | ||
Diode Configuration Single | ||
Series RB078RSM20ST | ||
Diode Type Schottky | ||
Pin Count 3 | ||
Number of Elements per Chip 2 | ||
- COO (Country of Origin):
- JP
The ROHM Schottky Barrier Diode is specifically designed for high reliability in demanding electronic applications. This diode offers superior performance with a reverse voltage rating of 200 V and a peak forward surge current capability of 80 A, making it ideal for use in switching power supplies and reverse polarity protection systems. Its robust construction ensures efficiency and durability, while the optimized thermal characteristics assist in maintaining operational stability across various environments. The freewheel diode packaging in embossed tape enhances ease of use in automated manufacturing processes, allowing for a seamless integration into modern electronic circuits.
High reliability ensures long-lasting performance in critical applications
Rated for a repetitive peak reverse voltage of 200 V providing robust operation under adverse conditions
Allows an average rectified forward current of 5 A, ideal for powering high-demand devices
Peak forward surge current capability of 80 A protects against unexpected load spikes
Optimized thermal resistance with junction to case rating, sustaining performance under heat
Designed for easy integration with a freewheel diode packing in embossed tape
Supports reverse polarity protection, further ensuring device safety
Specifications cater to various applications, including switching power supplies and automotive uses
Rated for a repetitive peak reverse voltage of 200 V providing robust operation under adverse conditions
Allows an average rectified forward current of 5 A, ideal for powering high-demand devices
Peak forward surge current capability of 80 A protects against unexpected load spikes
Optimized thermal resistance with junction to case rating, sustaining performance under heat
Designed for easy integration with a freewheel diode packing in embossed tape
Supports reverse polarity protection, further ensuring device safety
Specifications cater to various applications, including switching power supplies and automotive uses
