Toshiba 85V 300mA, Quad Silicon Junction Diode, 6-Pin SOT-363 HN1D04FU(TE85L,F)
- RS Stock No.:
- 579-991
- Mfr. Part No.:
- HN1D04FU(TE85L,F)
- Brand:
- Toshiba

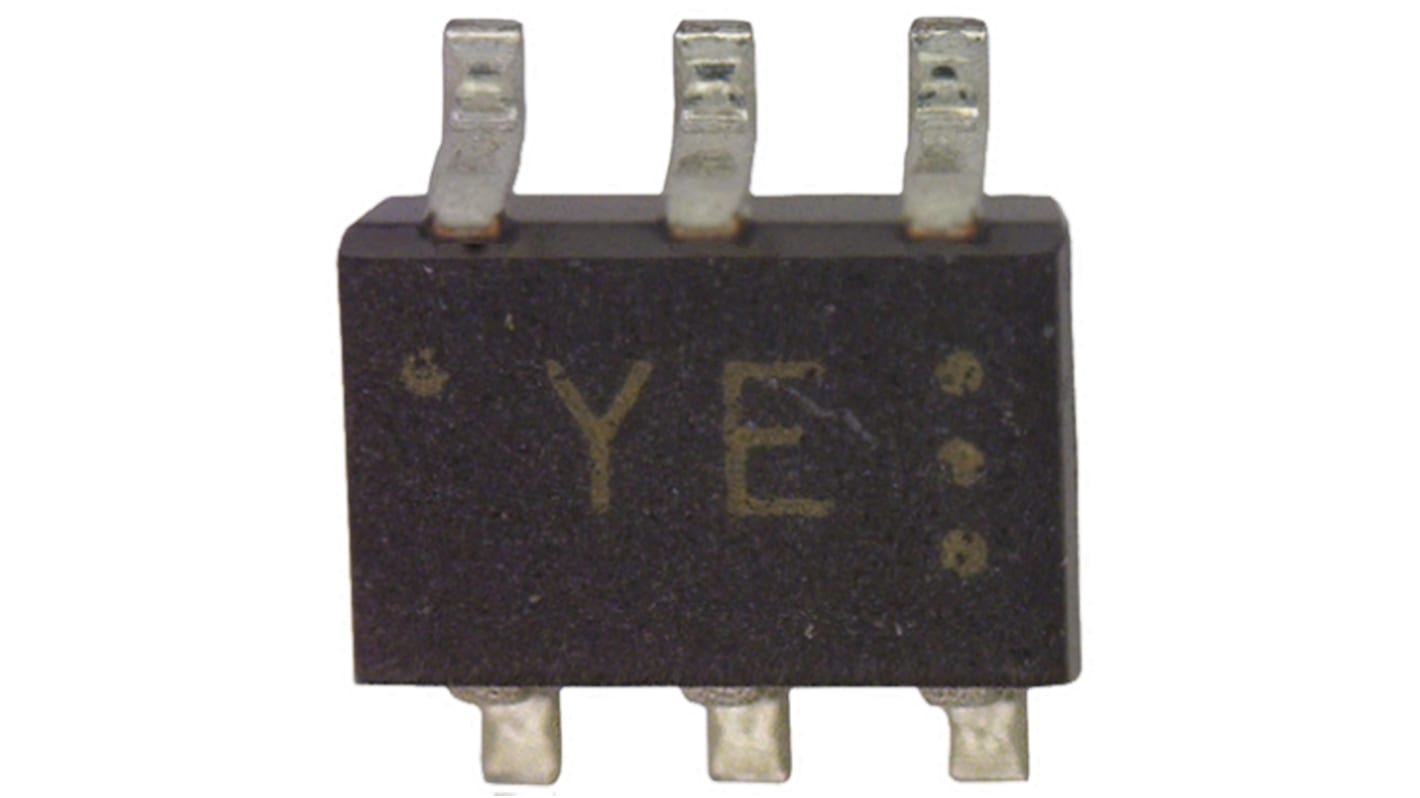

Image representative of range
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 579-991
- Mfr. Part No.:
- HN1D04FU(TE85L,F)
- Brand:
- Toshiba
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Toshiba | |
| Mounting Type | Surface Mount | |
| Package Type | SOT-363 (SC-88) | |
| Maximum Continuous Forward Current | 300mA | |
| Peak Reverse Repetitive Voltage | 85V | |
| Diode Configuration | Series | |
| Rectifier Type | Switching | |
| Diode Type | Silicon Junction | |
| Pin Count | 6 | |
| Maximum Forward Voltage Drop | 1.2V | |
| Number of Elements per Chip | 4 | |
| Diode Technology | Silicon Junction | |
| Peak Reverse Recovery Time | 1.6ns | |
| Peak Non-Repetitive Forward Surge Current | 2A | |
Select all | ||
|---|---|---|
Brand Toshiba | ||
Mounting Type Surface Mount | ||
Package Type SOT-363 (SC-88) | ||
Maximum Continuous Forward Current 300mA | ||
Peak Reverse Repetitive Voltage 85V | ||
Diode Configuration Series | ||
Rectifier Type Switching | ||
Diode Type Silicon Junction | ||
Pin Count 6 | ||
Maximum Forward Voltage Drop 1.2V | ||
Number of Elements per Chip 4 | ||
Diode Technology Silicon Junction | ||
Peak Reverse Recovery Time 1.6ns | ||
Peak Non-Repetitive Forward Surge Current 2A | ||
