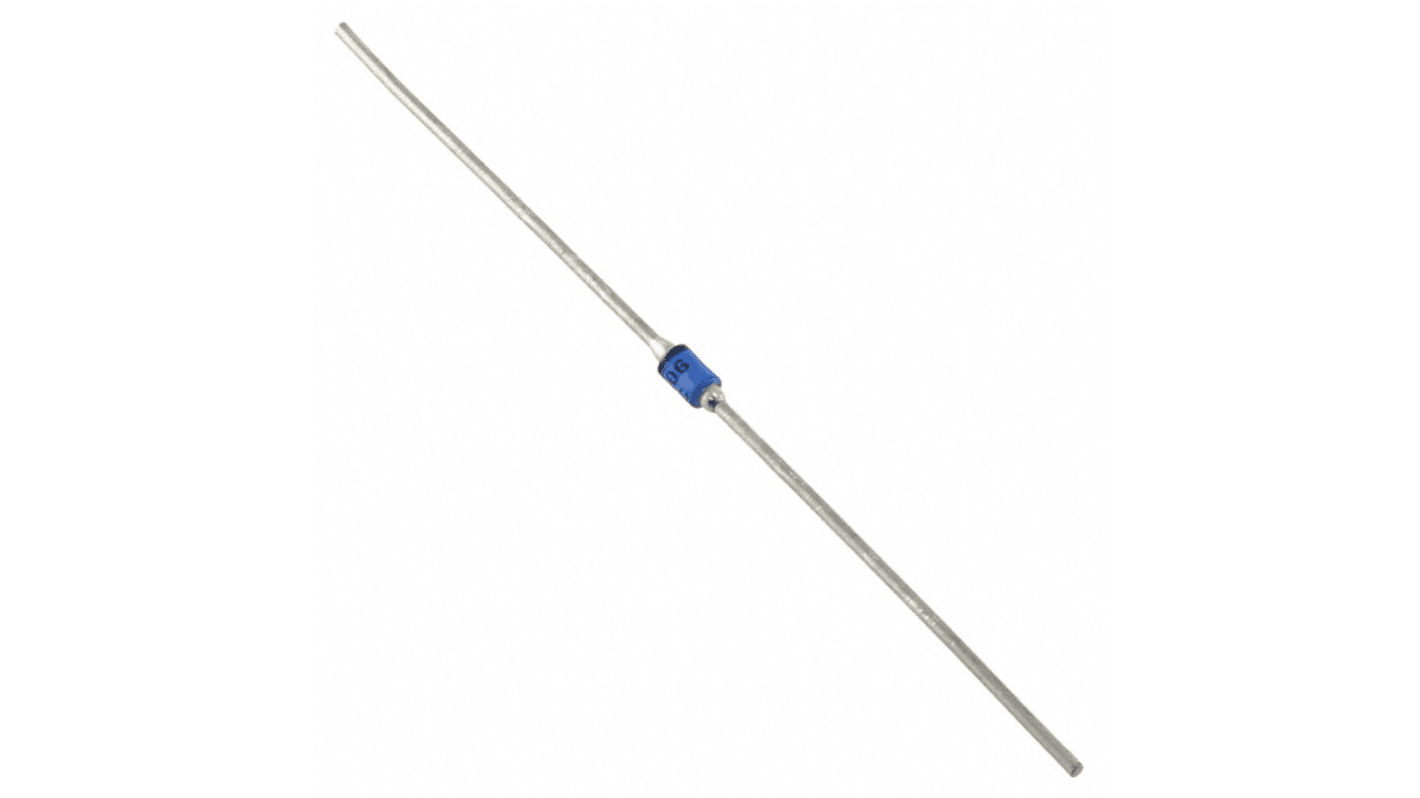

Microchip 150V 35A, Silicon Junction Diode, 2-Pin A 1N5806
- RS Stock No.:
- 333-198
- Mfr. Part No.:
- 1N5806
- Brand:
- Microchip
Subtotal (1 box of 52 units)*
£371.644
(exc. VAT)
£445.952
(inc. VAT)
FREE delivery for orders over £50.00
New product - Preorder today
- 999,999,988 unit(s) shipping from 27 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Box* |
---|---|---|
52 + | £7.147 | £371.64 |
*price indicative
- RS Stock No.:
- 333-198
- Mfr. Part No.:
- 1N5806
- Brand:
- Microchip
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Microchip | |
Mounting Type | Through Hole | |
Package Type | A | |
Maximum Continuous Forward Current | 35A | |
Peak Reverse Repetitive Voltage | 150V | |
Diode Configuration | Single | |
Series | 1N5806 | |
Diode Type | Silicon Junction | |
Pin Count | 2 | |
Select all | ||
---|---|---|
Brand Microchip | ||
Mounting Type Through Hole | ||
Package Type A | ||
Maximum Continuous Forward Current 35A | ||
Peak Reverse Repetitive Voltage 150V | ||
Diode Configuration Single | ||
Series 1N5806 | ||
Diode Type Silicon Junction | ||
Pin Count 2 | ||
The Microchip Ultrafast Recovery rectifier diode series is military qualified and is ideal for high reliability applications where a failure cannot be tolerated. The industry recognized 2.5 amp rated rectifiers with working peak reverse voltages from 50 to 150 volts are hermetically sealed with void less glass construction using an internal Category 1 metallurgical bond. These devices are available in both leaded and surface mount MELF package configurations.
High forward surge current capability
Low thermal resistance
Controlled avalanche with peak reverse power capability
Inherently radiation hard as described in Microchip MicroNote 050
Quadruple layer passivation
Extremely robust construction
Low thermal resistance
Controlled avalanche with peak reverse power capability
Inherently radiation hard as described in Microchip MicroNote 050
Quadruple layer passivation
Extremely robust construction
