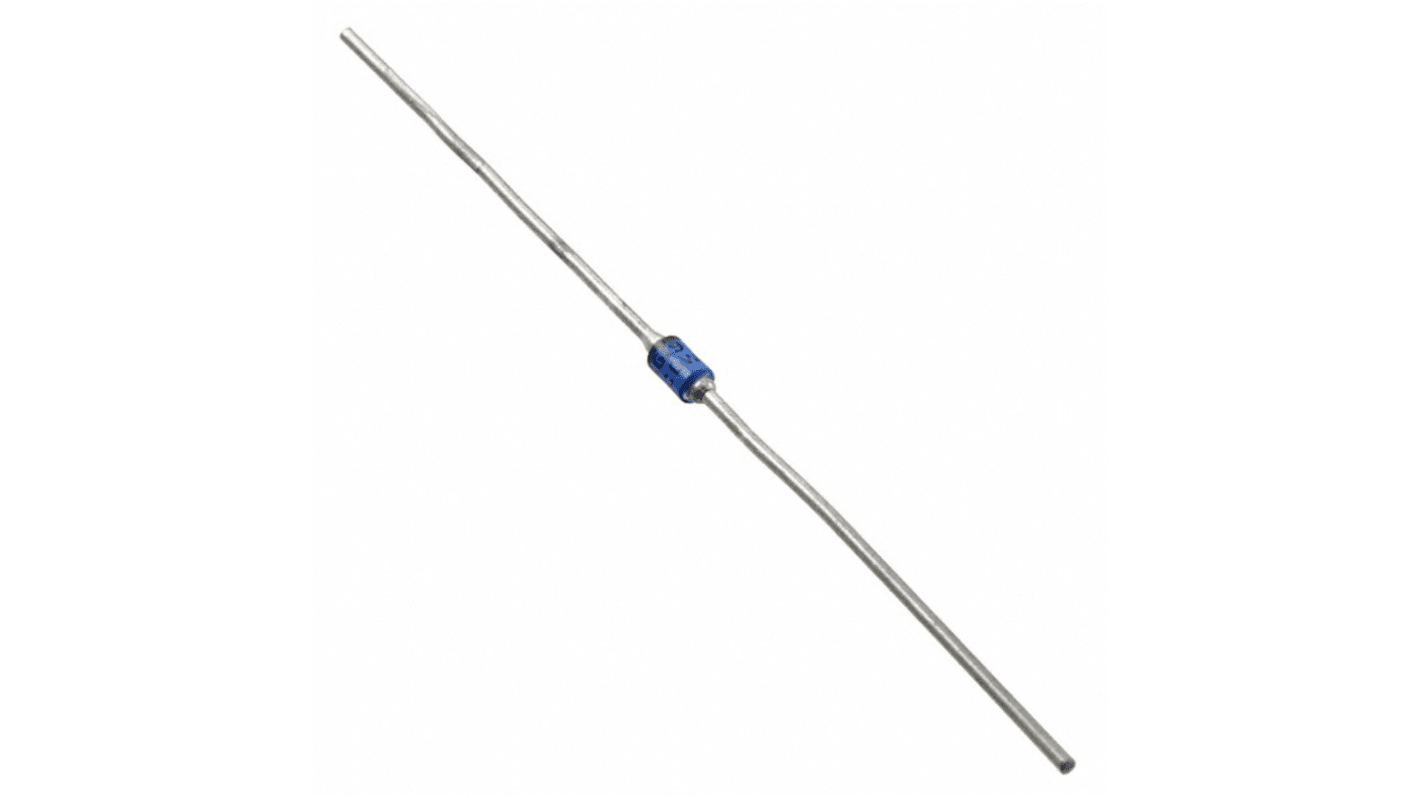

Microchip 150V 35A, Silicon Junction Diode, 2-Pin A JANTX1N5806

View this category

Subtotal (1 box of 56 units)*

£371.56

(exc. VAT)

£445.872

(inc. VAT)

Add to Basket
Select or type quantity
New product - Preorder today
  • Shipping from 30 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Box*
56 +£6.635£371.56

*price indicative

RS Stock No.:
333-014
Mfr. Part No.:
JANTX1N5806
Brand:
Microchip
Find similar products by selecting one or more attributes.
Select all

Brand

Microchip

Mounting Type

Through Hole

Package Type

A

Maximum Continuous Forward Current

35A

Peak Reverse Repetitive Voltage

150V

Diode Configuration

Single

Series

1N5806

Diode Type

Silicon Junction

Pin Count

2

The Microchip Ultrafast Recovery” rectifier diode series is military qualified and is ideal for high reliability applications where a failure cannot be tolerated. The industry recognized 2.5 amp rated rectifiers with working peak reverse voltages from 50 to 150 volts are hermetically sealed with voidless glass construction using an internal “Category 1” metallurgical bond. These devices are available in both leaded and surface mount MELF package configurations.

Voidless hermetically sealed glass package
Quadruple layer passivation
Extremely robust construction
High forward surge current capability
Low thermal resistance
Controlled avalanche with peak reverse power capability
