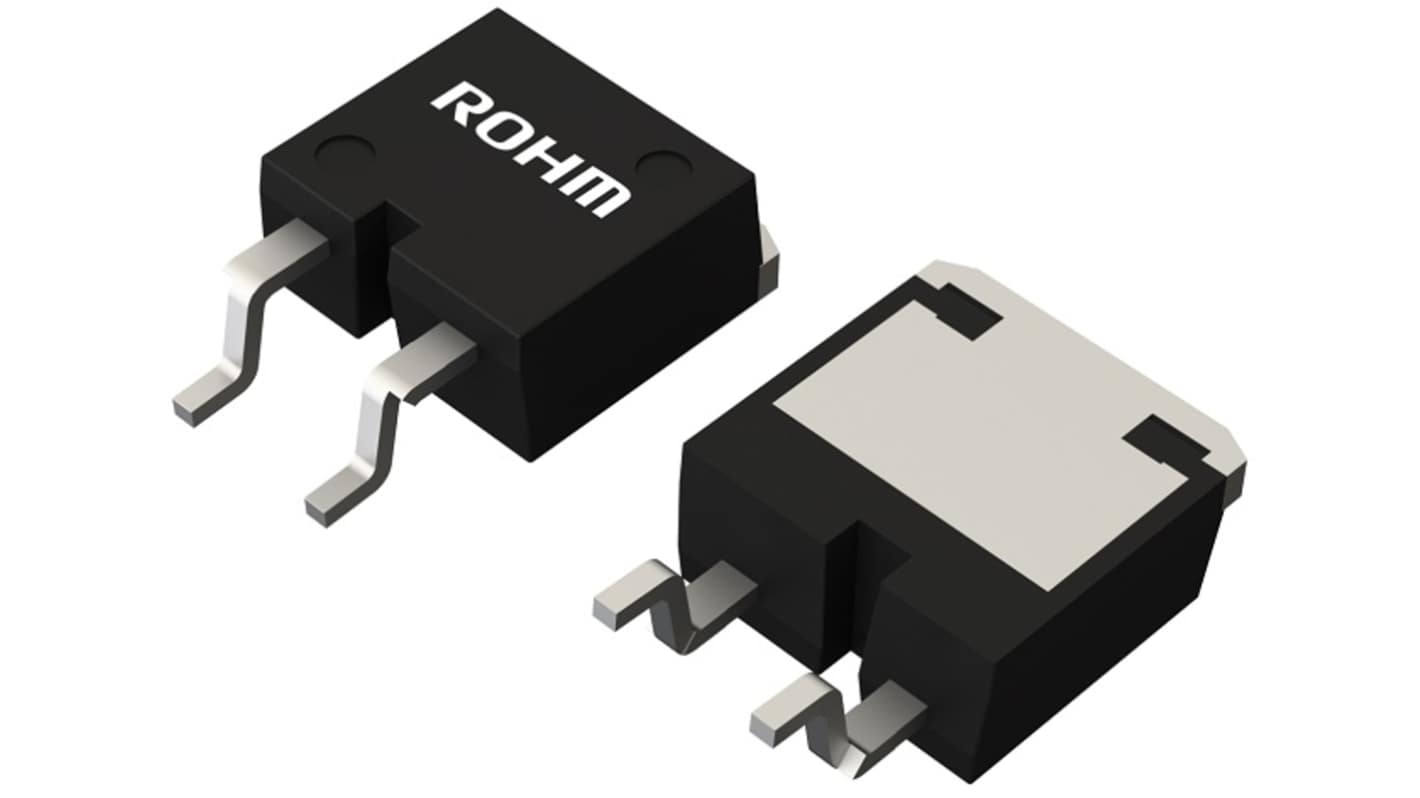

ROHM 1200 V 20 A Schottky Barrier Diode 3-Pin D2PAK SCS220KNHRTRL
- RS Stock No.:
- 331-681
- Mfr. Part No.:
- SCS220KNHRTRL
- Brand:
- ROHM
Bulk discount available
View bulk pricing optionsSubtotal (1 tape of 1 unit)*
£8.93
(exc. VAT)
£10.72
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 1,000 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tape(s) | Per Tape |
|---|---|
| 1 - 9 | £8.93 |
| 10 - 99 | £8.04 |
| 100 + | £7.41 |
*price indicative
- RS Stock No.:
- 331-681
- Mfr. Part No.:
- SCS220KNHRTRL
- Brand:
- ROHM
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ROHM | |
| Product Type | Schottky Barrier Diode | |
| Mount Type | Surface | |
| Package Type | TO-263-2L | |
| Maximum Continuous Forward Current If | 20A | |
| Peak Reverse Repetitive Voltage Vrrm | 1200V | |
| Series | SCS | |
| Diode Configuration | Single | |
| Pin Count | 3 | |
| Minimum Operating Temperature | -40°C | |
| Peak Reverse Current Ir | 400μA | |
| Maximum Forward Voltage Vf | 1.6V | |
| Peak Non-Repetitive Forward Surge Current Ifsm | 330A | |
| Maximum Operating Temperature | 175°C | |
| Standards/Approvals | RoHS | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand ROHM | ||
Product Type Schottky Barrier Diode | ||
Mount Type Surface | ||
Package Type TO-263-2L | ||
Maximum Continuous Forward Current If 20A | ||
Peak Reverse Repetitive Voltage Vrrm 1200V | ||
Series SCS | ||
Diode Configuration Single | ||
Pin Count 3 | ||
Minimum Operating Temperature -40°C | ||
Peak Reverse Current Ir 400μA | ||
Maximum Forward Voltage Vf 1.6V | ||
Peak Non-Repetitive Forward Surge Current Ifsm 330A | ||
Maximum Operating Temperature 175°C | ||
Standards/Approvals RoHS | ||
Automotive Standard No | ||
The ROHM Automotive Grade SiC Schottky Barrier Diode is designed for high performance power applications, featuring negligible recovery time and current, which ensures faster switching and improved efficiency. It also offers a wide creepage distance of at least 5.10mm. Common applications include On board chargers, EV chargers, DC to DC converters, and wireless chargers.
AEC-Q101 qualified
Low forward voltage
Temperature independent switching behaviour
