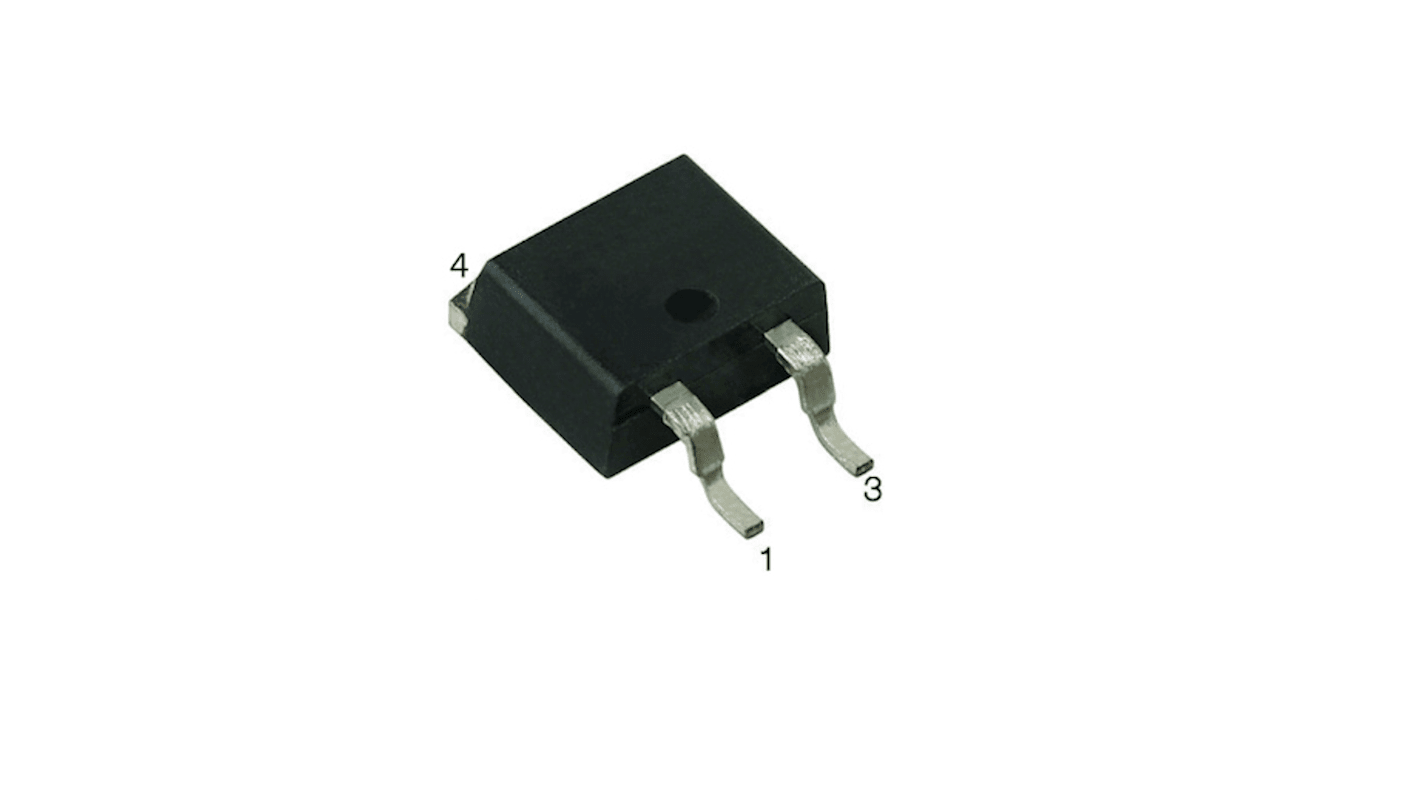

Vishay 1200V 20A, Fast Recovery Epitaxial Diode Rectifier & Schottky Diode, D2PAK VS-E5TH2112S2LHM3
- RS Stock No.:
- 244-9118
- Mfr. Part No.:
- VS-E5TH2112S2LHM3
- Brand:
- Vishay
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 244-9118
- Mfr. Part No.:
- VS-E5TH2112S2LHM3
- Brand:
- Vishay
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Vishay | |
Mounting Type | Surface Mount | |
Package Type | D2PAK 2L (TO-263AB 2L) | |
Maximum Continuous Forward Current | 20A | |
Peak Reverse Repetitive Voltage | 1200V | |
Series | VS | |
Diode Configuration | Single | |
Rectifier Type | General Purpose | |
Diode Type | Fast Recovery Epitaxial Diode | |
Select all | ||
---|---|---|
Brand Vishay | ||
Mounting Type Surface Mount | ||
Package Type D2PAK 2L (TO-263AB 2L) | ||
Maximum Continuous Forward Current 20A | ||
Peak Reverse Repetitive Voltage 1200V | ||
Series VS | ||
Diode Configuration Single | ||
Rectifier Type General Purpose | ||
Diode Type Fast Recovery Epitaxial Diode | ||
The Vishay's hyperfast rectifier provides unique combination of low conduction and low switching losses, and can be used in applications like soft switched, resonant converters, medium frequency hard switching converters etc.
Best in class forward voltage drop and switching losses trade off
Optimized for high speed operation
175 °C maximum operating junction temperature
AEC-Q101 qualified meets JESD 201 class 2 whisker test
RoHS compliant
Optimized for high speed operation
175 °C maximum operating junction temperature
AEC-Q101 qualified meets JESD 201 class 2 whisker test
RoHS compliant
