Vishay 400 V 4 A Rectifier & Schottky Diode Surface Mount Standard Rectifier 7-Pin DFN33A SE60N3G-M3/I
- RS Stock No.:
- 277-591
- Mfr. Part No.:
- SE60N3G-M3/I
- Brand:
- Vishay
Subtotal (1 reel of 6000 units)*
£1,356.00
(exc. VAT)
£1,626.00
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 6,000 unit(s) shipping from 02 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 6000 + | £0.226 | £1,356.00 |
*price indicative
- RS Stock No.:
- 277-591
- Mfr. Part No.:
- SE60N3G-M3/I
- Brand:
- Vishay
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Product Type | Rectifier & Schottky Diode | |
| Mount Type | Surface | |
| Package Type | DFN33A | |
| Maximum Continuous Forward Current If | 4A | |
| Peak Reverse Repetitive Voltage Vrrm | 400V | |
| Series | SE40N3 | |
| Diode Configuration | Single | |
| Rectifier Type | Surface Mount Standard Rectifier | |
| Pin Count | 7 | |
| Peak Non-Repetitive Forward Surge Current Ifsm | 70A | |
| Maximum Forward Voltage Vf | 1.05V | |
| Minimum Operating Temperature | -55°C | |
| Peak Reverse Current Ir | 100μA | |
| Maximum Operating Temperature | 175°C | |
| Width | 3.4 mm | |
| Length | 3.4mm | |
| Standards/Approvals | MSL Level 1, per J-STD-020, AEC-Q101, RoHS | |
| Height | 0.88mm | |
| Automotive Standard | AEC-Q101 | |
| Select all | ||
|---|---|---|
Brand Vishay | ||
Product Type Rectifier & Schottky Diode | ||
Mount Type Surface | ||
Package Type DFN33A | ||
Maximum Continuous Forward Current If 4A | ||
Peak Reverse Repetitive Voltage Vrrm 400V | ||
Series SE40N3 | ||
Diode Configuration Single | ||
Rectifier Type Surface Mount Standard Rectifier | ||
Pin Count 7 | ||
Peak Non-Repetitive Forward Surge Current Ifsm 70A | ||
Maximum Forward Voltage Vf 1.05V | ||
Minimum Operating Temperature -55°C | ||
Peak Reverse Current Ir 100μA | ||
Maximum Operating Temperature 175°C | ||
Width 3.4 mm | ||
Length 3.4mm | ||
Standards/Approvals MSL Level 1, per J-STD-020, AEC-Q101, RoHS | ||
Height 0.88mm | ||
Automotive Standard AEC-Q101 | ||
- COO (Country of Origin):
- CN

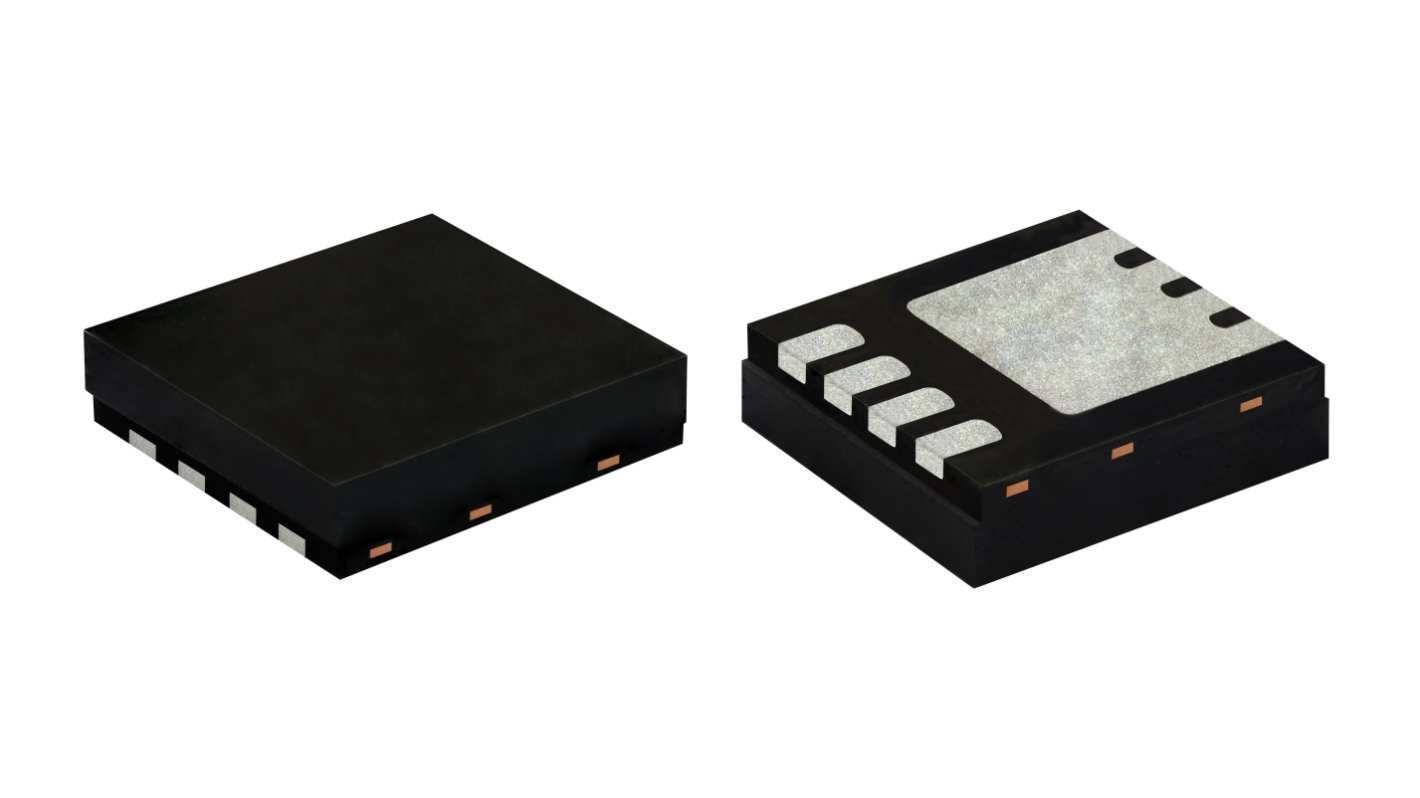

The Vishay Standard Rectifier in a DFN33A package provides reliable power line polarity and rail to rail protection for consumer, industrial, and automotive applications. It is halogen free, RoHS compliant, and AEC Q101 qualified, with an operating temperature range of 55°C to +175°C, ensuring Durable performance in various environments.
Leadless DFN package with side wettable flanks suitable for customer AOI
Ideal for automated placement
Oxide Planar chip junction
Low forward voltage drop
ESD capability
AEC Q101 qualified
