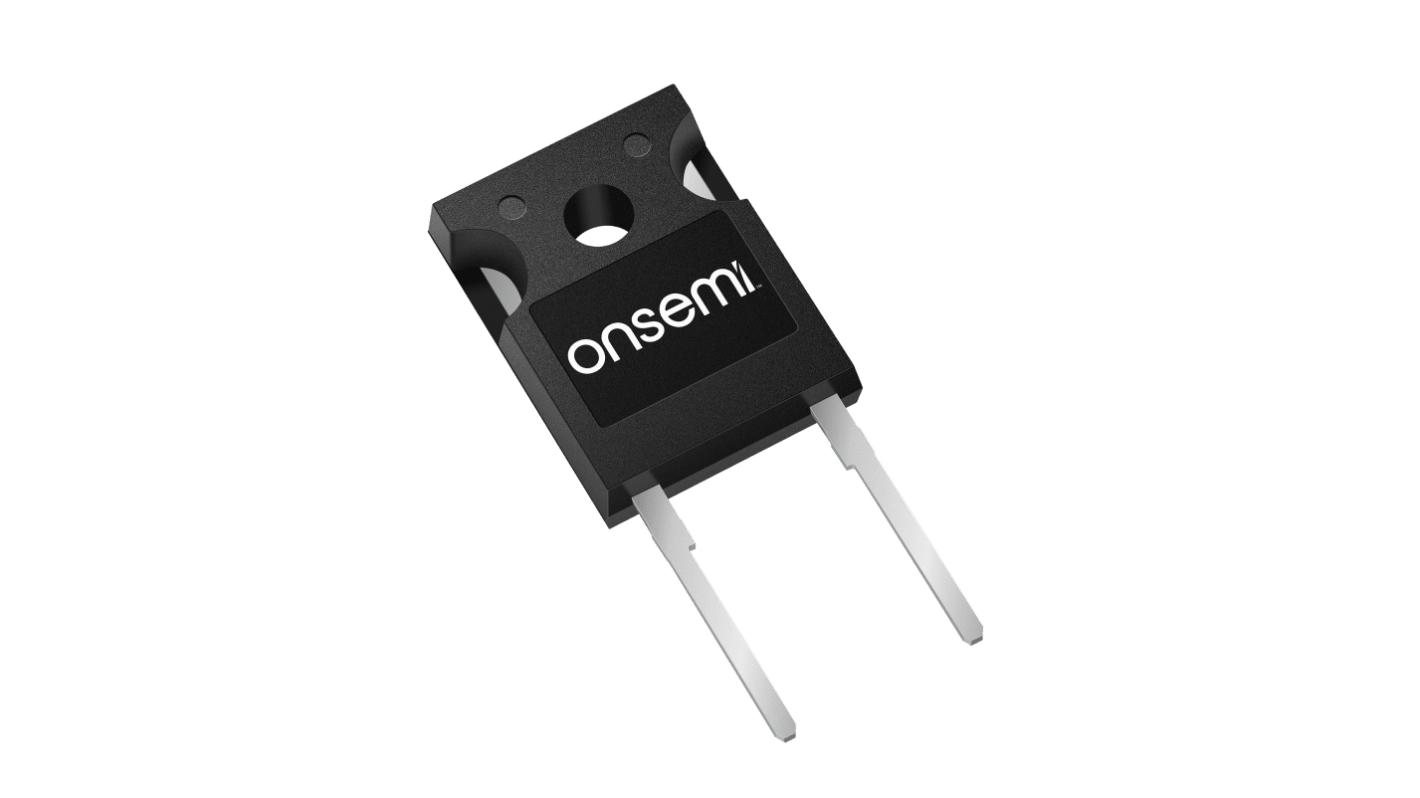

onsemi 1200V 50A, SiC Schottky Diode, 2-Pin TO-247-2L NDSH50120C-F155
- RS Stock No.:
- 277-032
- Mfr. Part No.:
- NDSH50120C-F155
- Brand:
- onsemi
Save 16% when you buy 100 units
Subtotal (1 unit)*
£20.43
(exc. VAT)
£24.52
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 393 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 9 | £20.43 |
10 - 99 | £18.39 |
100 + | £16.96 |
*price indicative
- RS Stock No.:
- 277-032
- Mfr. Part No.:
- NDSH50120C-F155
- Brand:
- onsemi
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | onsemi | |
Mounting Type | Through Hole | |
Package Type | TO-247-2L | |
Maximum Continuous Forward Current | 50A | |
Peak Reverse Repetitive Voltage | 1200V | |
Series | NDSH | |
Diode Configuration | Single | |
Diode Type | SiC Schottky | |
Pin Count | 2 | |
Number of Elements per Chip | 1 | |
Select all | ||
---|---|---|
Brand onsemi | ||
Mounting Type Through Hole | ||
Package Type TO-247-2L | ||
Maximum Continuous Forward Current 50A | ||
Peak Reverse Repetitive Voltage 1200V | ||
Series NDSH | ||
Diode Configuration Single | ||
Diode Type SiC Schottky | ||
Pin Count 2 | ||
Number of Elements per Chip 1 | ||
- COO (Country of Origin):
- CN
The ON Semiconductor Silicon Carbide Schottky Diode uses a completely new technology that provides superior switching performance and higher reliability compared to Silicon. No reverse recovery current, temperature independent switching characteristics, and excellent thermal performance sets Silicon Carbide as the next generation of power semiconductor. System benefits include highest efficiency, faster operating frequency, increased power density, reduced EMI, and reduced system size and cost.
Avalanche rated 380 mJ
High surge current capacity
Positive temperature coefficient
Ease of paralleling
No reverse recovery
High surge current capacity
Positive temperature coefficient
Ease of paralleling
No reverse recovery
