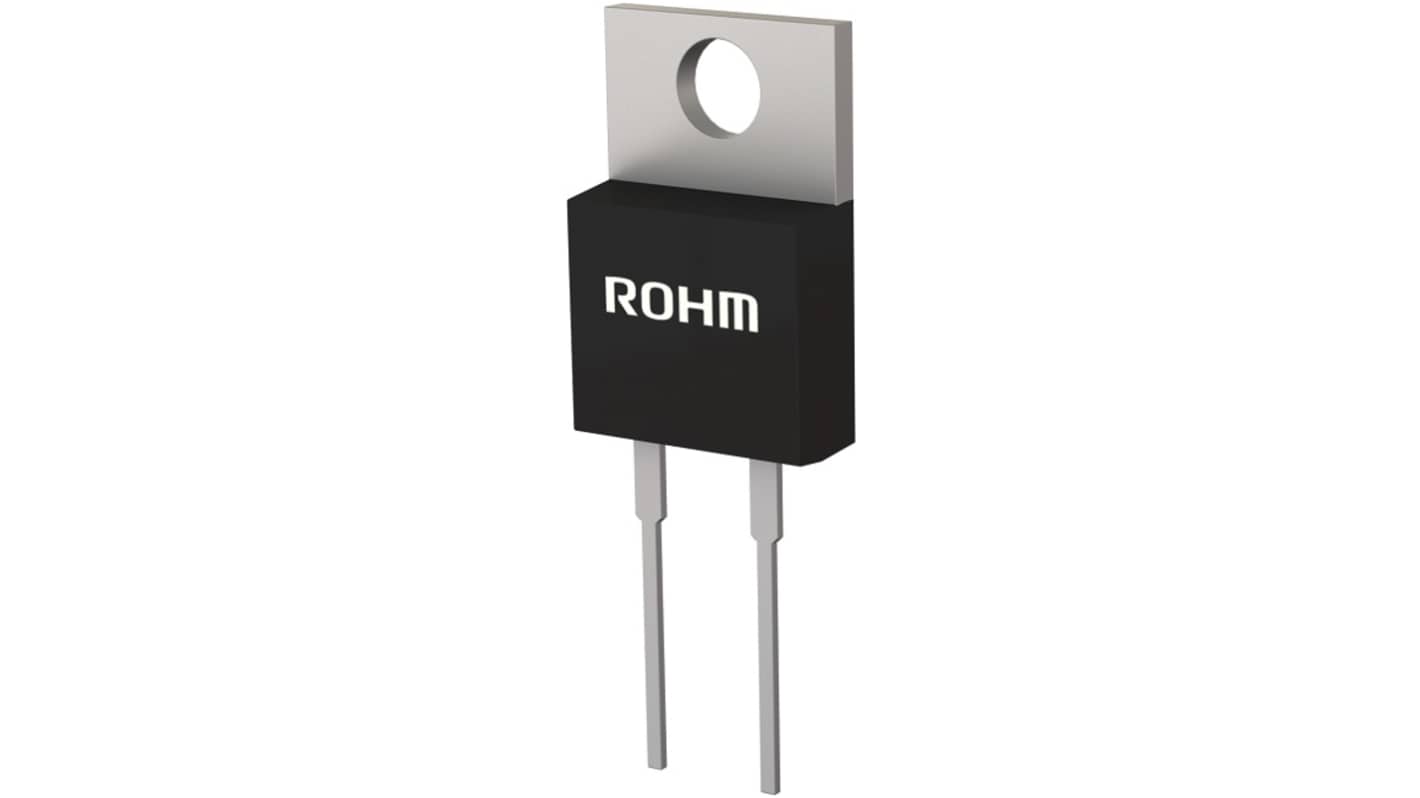

ROHM 650V 10A, SiC Schottky Diode, 3-Pin TO-220ACGE SCS310AGC16
- RS Stock No.:
- 265-016
- Mfr. Part No.:
- SCS310AGC16
- Brand:
- ROHM
Save 30% when you buy 2000 units
Subtotal (1 pack of 2 units)*
£6.89
(exc. VAT)
£8.268
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 100 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
---|---|---|
2 - 18 | £3.445 | £6.89 |
20 - 198 | £3.10 | £6.20 |
200 - 998 | £2.865 | £5.73 |
1000 - 1998 | £2.65 | £5.30 |
2000 + | £2.38 | £4.76 |
*price indicative
- RS Stock No.:
- 265-016
- Mfr. Part No.:
- SCS310AGC16
- Brand:
- ROHM
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | ROHM | |
Mounting Type | Through Hole | |
Package Type | TO-220ACGE | |
Maximum Continuous Forward Current | 10A | |
Peak Reverse Repetitive Voltage | 650V | |
Series | SCS310 | |
Diode Type | SiC Schottky | |
Pin Count | 3 | |
Number of Elements per Chip | 1 | |
Select all | ||
---|---|---|
Brand ROHM | ||
Mounting Type Through Hole | ||
Package Type TO-220ACGE | ||
Maximum Continuous Forward Current 10A | ||
Peak Reverse Repetitive Voltage 650V | ||
Series SCS310 | ||
Diode Type SiC Schottky | ||
Pin Count 3 | ||
Number of Elements per Chip 1 | ||
The ROHM Schottky Barrier Diode is designed to deliver exceptional efficiency and performance for demanding applications. Its superior recovery time and high-speed switching capabilities make it an ideal choice for power management and converter circuits. Constructed using silicon carbide, the diode boasts a robust surge current handling capacity and reduced temperature dependence, enhancing reliability in high-temperature environments.
Constructed with silicon carbide for superior thermal stability and enhanced durability
Offers high speed switching for improved system response times
Minimises recovery times to improve overall circuit performance
Provides versatile operational flexibility to meet diverse application needs
Offers high speed switching for improved system response times
Minimises recovery times to improve overall circuit performance
Provides versatile operational flexibility to meet diverse application needs
