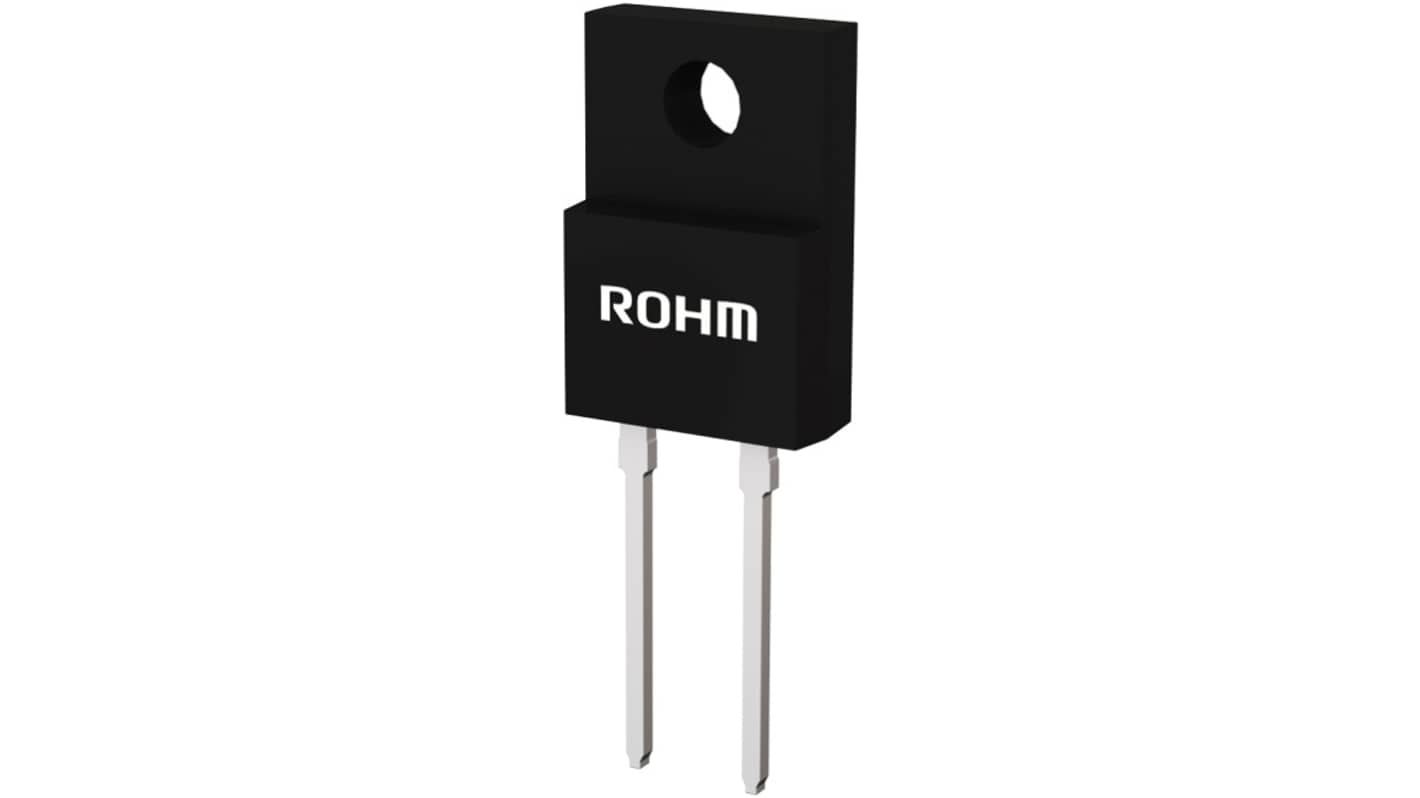

ROHM 650 V 4 A Diode SiC Schottky 2-Pin TO-220FM-2LGE SCS304AMC7G

View this category
Bulk discount available

Subtotal (1 pack of 5 units)*

£10.70

(exc. VAT)

£12.85

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 100 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Pack*
5 - 45£2.14£10.70
50 - 95£2.034£10.17
100 +£1.882£9.41

*price indicative

RS Stock No.:
264-974
Mfr. Part No.:
SCS304AMC7G
Brand:
ROHM
Find similar products by selecting one or more attributes.
Select all

Brand

ROHM

Product Type

Diode

Mount Type

Through Hole

Package Type

TO-220FM-2LGE

Maximum Continuous Forward Current If

4A

Peak Reverse Repetitive Voltage Vrrm

650V

Series

SCS304

Rectifier Type

SiC Schottky

Pin Count

2

Peak Non-Repetitive Forward Surge Current Ifsm

100A

Maximum Forward Voltage Vf

1.71V

Peak Reverse Current Ir

2.4μA

Minimum Operating Temperature

-55°C

Maximum Operating Temperature

175°C

Peak Reverse Recovery Time trr

18ns

Standards/Approvals

RoHS

Automotive Standard

No

The ROHM Schottky Barrier Diode is engineered for high-performance applications, delivering exceptional efficiency in power conversion. With its cutting-edge silicon carbide (SiC) technology, this diode significantly reduces switching losses and enhances overall device reliability. Its robust design facilitates high-speed switching and offers a remarkable temperature stability, making it suitable for a wide range of demanding environments.

Capable of handling reverse voltage of up to 650 V ensuring safe operation

Robust packaging provides enhanced thermal management for durability

Ideal for applications in power factor correction and rectification systems
