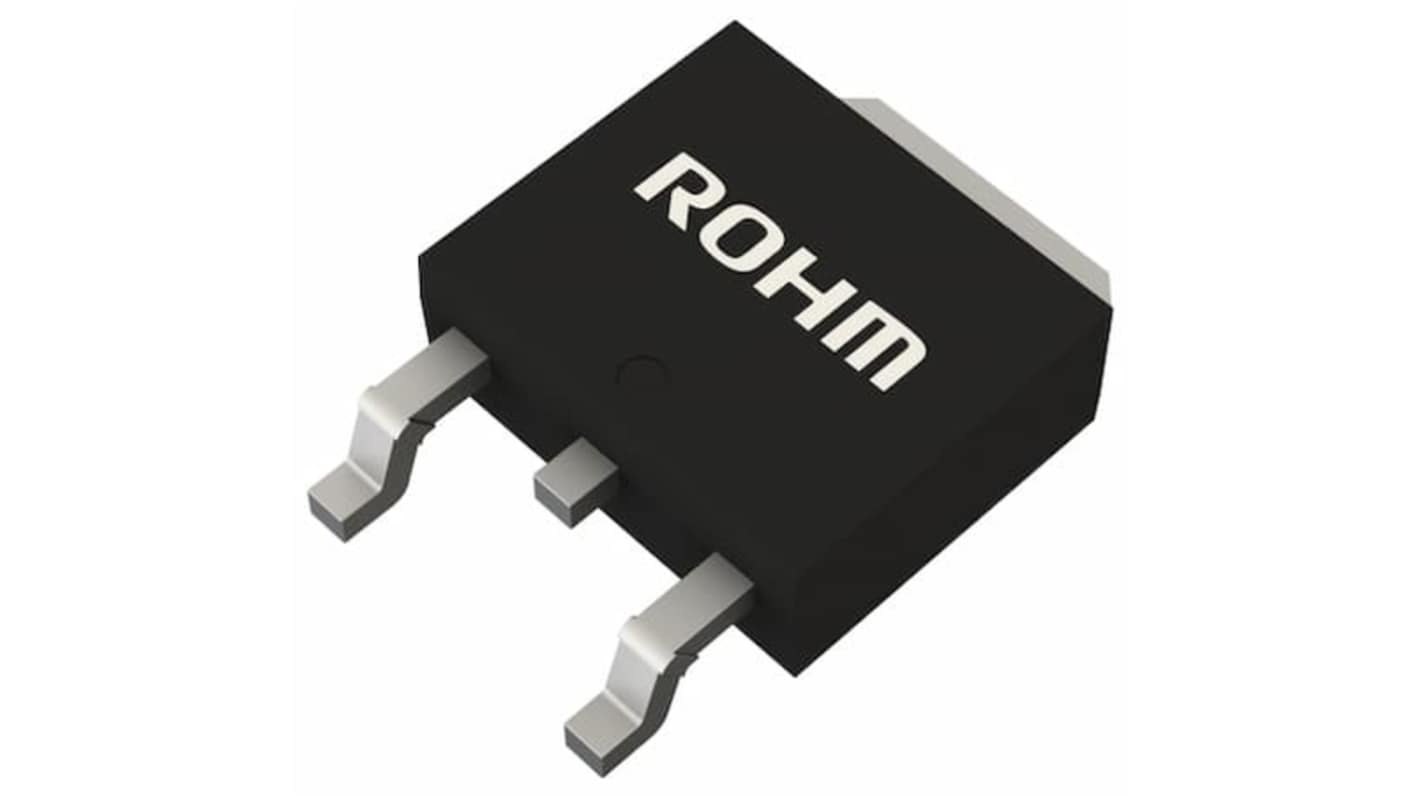

ROHM 100 V 20 A Rectifier & Schottky Diode Schottky 3-Pin DPAK YQ20BM10SDFHTL

View this category
Bulk discount available

Subtotal (1 tape of 5 units)*

£6.00

(exc. VAT)

£7.20

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 2,500 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Tape*
5 - 45£1.20£6.00
50 - 95£1.142£5.71
100 - 495£1.058£5.29
500 - 995£0.974£4.87
1000 +£0.938£4.69

*price indicative

Packaging Options:
RS Stock No.:
264-503
Mfr. Part No.:
YQ20BM10SDFHTL
Brand:
ROHM
Find similar products by selecting one or more attributes.
Select all

Brand

ROHM

Mount Type

Surface

Product Type

Rectifier & Schottky Diode

Package Type

TO-252

Maximum Continuous Forward Current If

20A

Peak Reverse Repetitive Voltage Vrrm

100V

Diode Configuration

Single

Series

YQ

Rectifier Type

Schottky

Pin Count

3

Maximum Forward Voltage Vf

0.86V

Minimum Operating Temperature

-55°C

Peak Non-Repetitive Forward Surge Current Ifsm

150A

Peak Reverse Current Ir

20mA

Maximum Operating Temperature

150°C

Length

6.4mm

Height

2.4mm

Standards/Approvals

AEC-Q101

Width

6.8 mm

Automotive Standard

AEC-Q101

The ROHM 100V 20A highly efficient Schottky Barrier Diode that is designed improving the tradeoff between low VF and low IR. While its low VF it achieves stable operation at high temperatures. Ideal for switching power supplies, freewheel diodes, and reverse polarity protection applications. A miniaturized, thin and wireless TO-252 package.

High reliability

Power mold type

Low VF and low IR

Low capacitance
