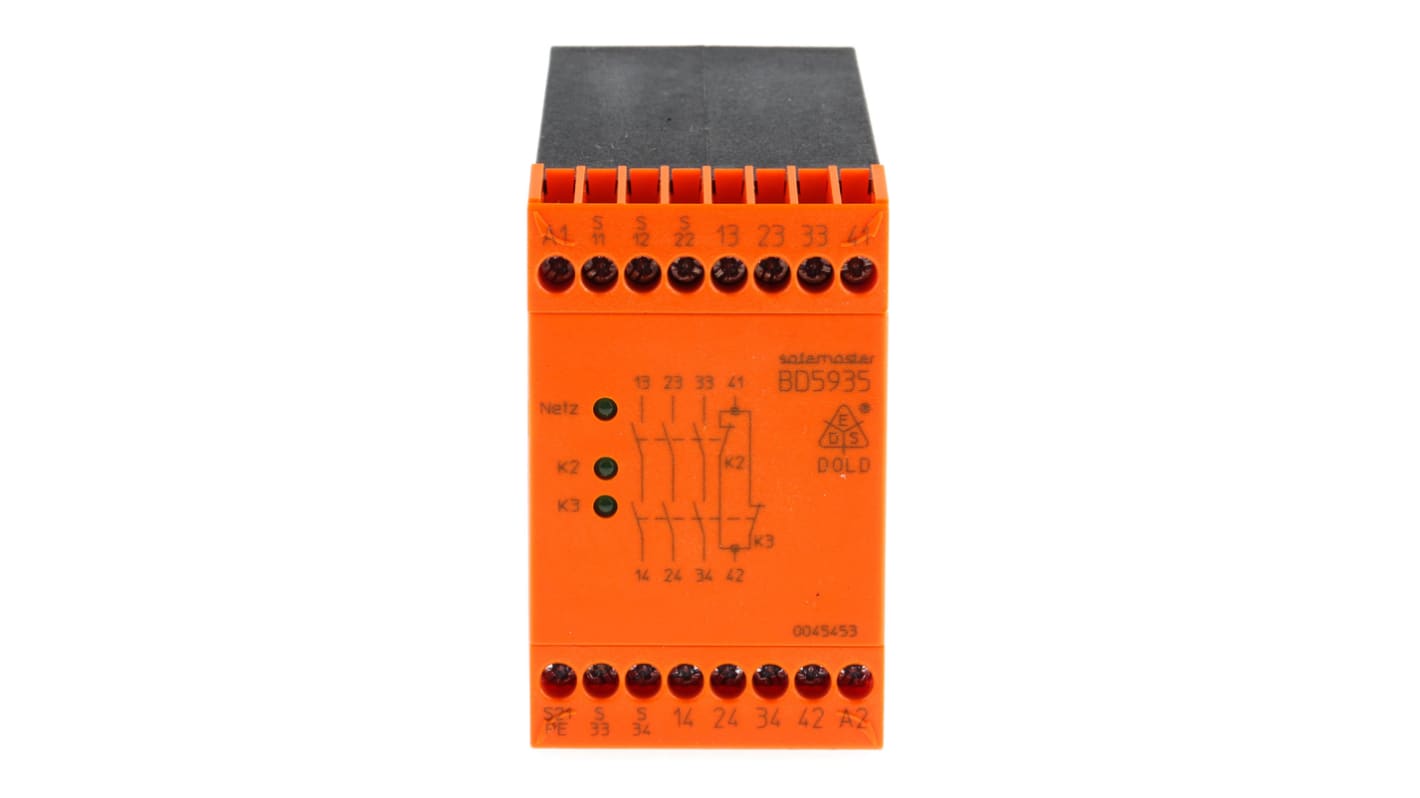

Dold Dual-Channel Emergency Stop Safety Relay, 230V ac, 3 Safety Contacts
- RS Stock No.:
- 240-8709
- Mfr. Part No.:
- BD5935.48 AC50/60Hz 230V
- Brand:
- Dold
12 In stock for delivery within 2 working days
Price Each
£336.39
(exc. VAT)
£403.67
(inc. VAT)
Units | Per unit |
|---|---|
| 1 + | £336.39 |
- RS Stock No.:
- 240-8709
- Mfr. Part No.:
- BD5935.48 AC50/60Hz 230V
- Brand:
- Dold
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details
Emergency Stop Module, BD5935.48
Machine emergency stop switches
Monitoring sliding grill guards
SK 4 (with equivalent switching)
Ultra compact unit (width 45 mm)
Output: 3 N/Os, 1 N/C
1 or 2-channel configuration
Line termination detection on the ON button
Programmable: cross-fault detection in emergency stop-control loop
Programmable: automatically comes on when operational voltage is applied or activation must happen with the ON button
LED indicators for channels 1 and 2
Option to monitor external protection
Removable terminals
Protection of humans and machines in accordance with: EC Directive for Machines 89/392/EEC, IEC 204 T 1, EN 60204 T 1, DIN VDE 0113
Monitoring sliding grill guards
SK 4 (with equivalent switching)
Ultra compact unit (width 45 mm)
Output: 3 N/Os, 1 N/C
1 or 2-channel configuration
Line termination detection on the ON button
Programmable: cross-fault detection in emergency stop-control loop
Programmable: automatically comes on when operational voltage is applied or activation must happen with the ON button
LED indicators for channels 1 and 2
Option to monitor external protection
Removable terminals
Protection of humans and machines in accordance with: EC Directive for Machines 89/392/EEC, IEC 204 T 1, EN 60204 T 1, DIN VDE 0113
Standards
EN 60204-1 (stop functions), EN 418, prEN574, prEN 954-1
Approvals
BG
Specifications
Attribute | Value |
|---|---|
| Supply Voltage | 230V ac |
| Number of Channels | 2 |
| Safety Contacts | 3 |
| Function | Emergency Stop |
| Auxiliary Contacts | 1 |
| Reset Method | Monitored |
| Range | Safemaster |
| Safety Category ISO 13849-1 | 4 |
| PL ISO 13849-1 | e |
| SIL IEC 61508 | 3 |
| Depth | 121mm |
| Width | 45mm |
| Series | BD 5935 |
| Length | 74mm |
