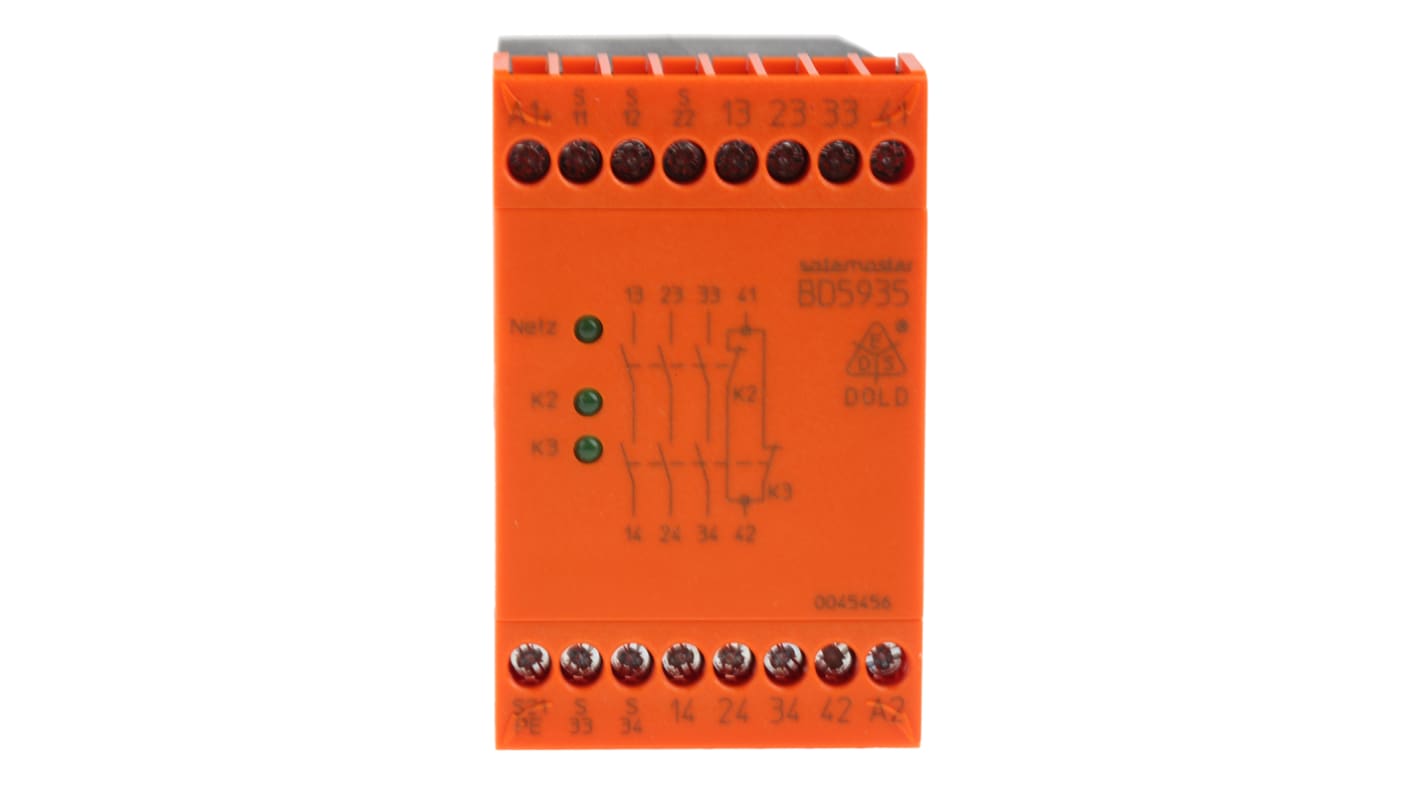

Dold BD 5935, 24V dc Safety Relay Safety Relay Safety Interlock Switch, 4 Safety Contacts
- RS Stock No.:
- 240-8692
- Mfr. Part No.:
- BD5935.48 DC24V
- Brand:
- Dold
Subtotal (1 unit)*
£332.63
(exc. VAT)
£399.16
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 1 unit(s) ready to ship
- Plus 14 unit(s) ready to ship from another location
- Plus 5 unit(s) shipping from 08 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £332.63 |
*price indicative
- RS Stock No.:
- 240-8692
- Mfr. Part No.:
- BD5935.48 DC24V
- Brand:
- Dold
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Dold | |
| Product Type | Safety Relay Safety Relay Safety Interlock Switch | |
| Safety Contacts | 4 | |
| Mount Type | DIN Rail | |
| Reset Method | Automatic | |
| Series | BD 5935 | |
| Power Consumption | 4VA | |
| Terminal Type | Screw | |
| IP Rating | IP20, IP40 | |
| Minimum Operating Temperature | -15°C | |
| Switching DC Voltage | 24V dc | |
| Switching AC Voltage | 250V ac | |
| Standards/Approvals | IEC/EN 62061, EN ISO 13849-1, IEC/EN 60 068-1, EN 50 022, EN 50 005, IEC/EN 60 947-5-1, IEC 60 664-1, EN 55 011, IEC/EN 61508, IEC/EN 60 068-2-6 | |
| Maximum Operating Temperature | 55°C | |
| Width | 45mm | |
| Height | 121mm | |
| Length | 74mm | |
| Hazardous Area Certification | No | |
| Safety Category | Cat.4 EN ISO 13849-1 | |
| Coil Voltage | 24V dc | |
| Select all | ||
|---|---|---|
Brand Dold | ||
Product Type Safety Relay Safety Relay Safety Interlock Switch | ||
Safety Contacts 4 | ||
Mount Type DIN Rail | ||
Reset Method Automatic | ||
Series BD 5935 | ||
Power Consumption 4VA | ||
Terminal Type Screw | ||
IP Rating IP20, IP40 | ||
Minimum Operating Temperature -15°C | ||
Switching DC Voltage 24V dc | ||
Switching AC Voltage 250V ac | ||
Standards/Approvals IEC/EN 62061, EN ISO 13849-1, IEC/EN 60 068-1, EN 50 022, EN 50 005, IEC/EN 60 947-5-1, IEC 60 664-1, EN 55 011, IEC/EN 61508, IEC/EN 60 068-2-6 | ||
Maximum Operating Temperature 55°C | ||
Width 45mm | ||
Height 121mm | ||
Length 74mm | ||
Hazardous Area Certification No | ||
Safety Category Cat.4 EN ISO 13849-1 | ||
Coil Voltage 24V dc | ||
Emergency Stop Module, BD5935.48
Machine emergency stop switches
Monitoring sliding grill guards
SK 4 (with equivalent switching)
Ultra compact unit (width 45 mm)
Output: 3 N/Os, 1 N/C
1 or 2-channel configuration
Line termination detection on the ON button
Programmable: cross-fault detection in emergency stop-control loop
Programmable: automatically comes on when operational voltage is applied or activation must happen with the ON button
LED indicators for channels 1 and 2
Option to monitor external protection
Removable terminals
Protection of humans and machines in accordance with: EC Directive for Machines 89/392/EEC, IEC 204 T 1, EN 60204 T 1, DIN VDE 0113
Approvals
BG
Standards
EN 60204-1 (stop functions), EN 418, prEN574, prEN 954-1
