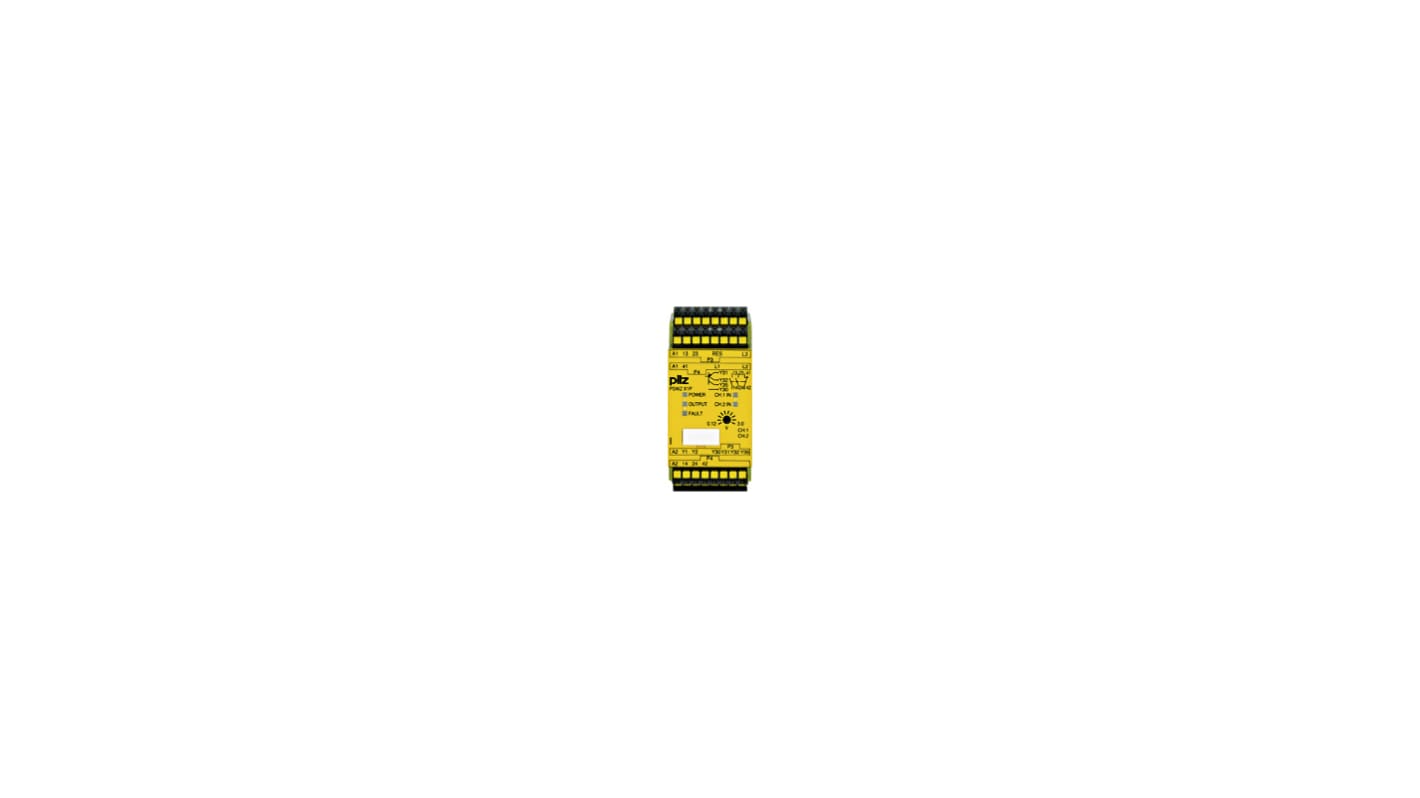

Pilz 787, 24V ac/dc, 240 V ac/dc Safety Relay, 2 Safety Contacts, 1
- RS Stock No.:
- 340-464
- Mfr. Part No.:
- 787950
- Brand:
- Pilz
Subtotal (1 unit)*
£507.97
(exc. VAT)
£609.56
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 1 unit(s) ready to ship from another location
- Plus 1 unit(s) shipping from 11 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £507.97 |
*price indicative
- RS Stock No.:
- 340-464
- Mfr. Part No.:
- 787950
- Brand:
- Pilz
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Pilz | |
| Product Type | Safety Relay | |
| Safety Contacts | 2 | |
| Number of Auxiliary Contacts | 1 | |
| Power Consumption | 5VA | |
| Series | 787 | |
| Terminal Type | Spring Loaded | |
| Minimum Operating Temperature | -10°C | |
| Switching DC Voltage | 24V dc | |
| Standards/Approvals | cULus Listed, CE, UKCA, CCC, EN 61326-3-1, EN 60947-5-1, EN 61000-6-2, EAC, TÜV | |
| Contact Current | 6A | |
| Switching AC Voltage | 240V ac | |
| Maximum Operating Temperature | 55°C | |
| Height | 101mm | |
| Length | 121mm | |
| Width | 45mm | |
| Hazardous Area Certification | No | |
| Coil Voltage | 24, 240V ac/dc | |
| Select all | ||
|---|---|---|
Brand Pilz | ||
Product Type Safety Relay | ||
Safety Contacts 2 | ||
Number of Auxiliary Contacts 1 | ||
Power Consumption 5VA | ||
Series 787 | ||
Terminal Type Spring Loaded | ||
Minimum Operating Temperature -10°C | ||
Switching DC Voltage 24V dc | ||
Standards/Approvals cULus Listed, CE, UKCA, CCC, EN 61326-3-1, EN 60947-5-1, EN 61000-6-2, EAC, TÜV | ||
Contact Current 6A | ||
Switching AC Voltage 240V ac | ||
Maximum Operating Temperature 55°C | ||
Height 101mm | ||
Length 121mm | ||
Width 45mm | ||
Hazardous Area Certification No | ||
Coil Voltage 24, 240V ac/dc | ||
RoHS Status: Exempt
- COO (Country of Origin):
- FR
The Pilz Safety Relay features measuring inputs for 1/3-phase motors and includes 2 N/O, 1 N/C, and 2 SC outputs. It operates with a supply voltage range of 24 - 240 V AC/DC and has a maximum operating voltage of 690 V. The switching threshold is adjustable between 120 to 3000 mV. With a width of 45 mm, it uses plug-in spring-loaded terminals for easy installation. The relay provides standstill monitoring, specifically designed to detect the EMC voltage generated during motor rundown, ensuring safe motor operation in industrial environments.
CE and UKCA listed
AgCuNi is the relay contact material
RoHS compliant
