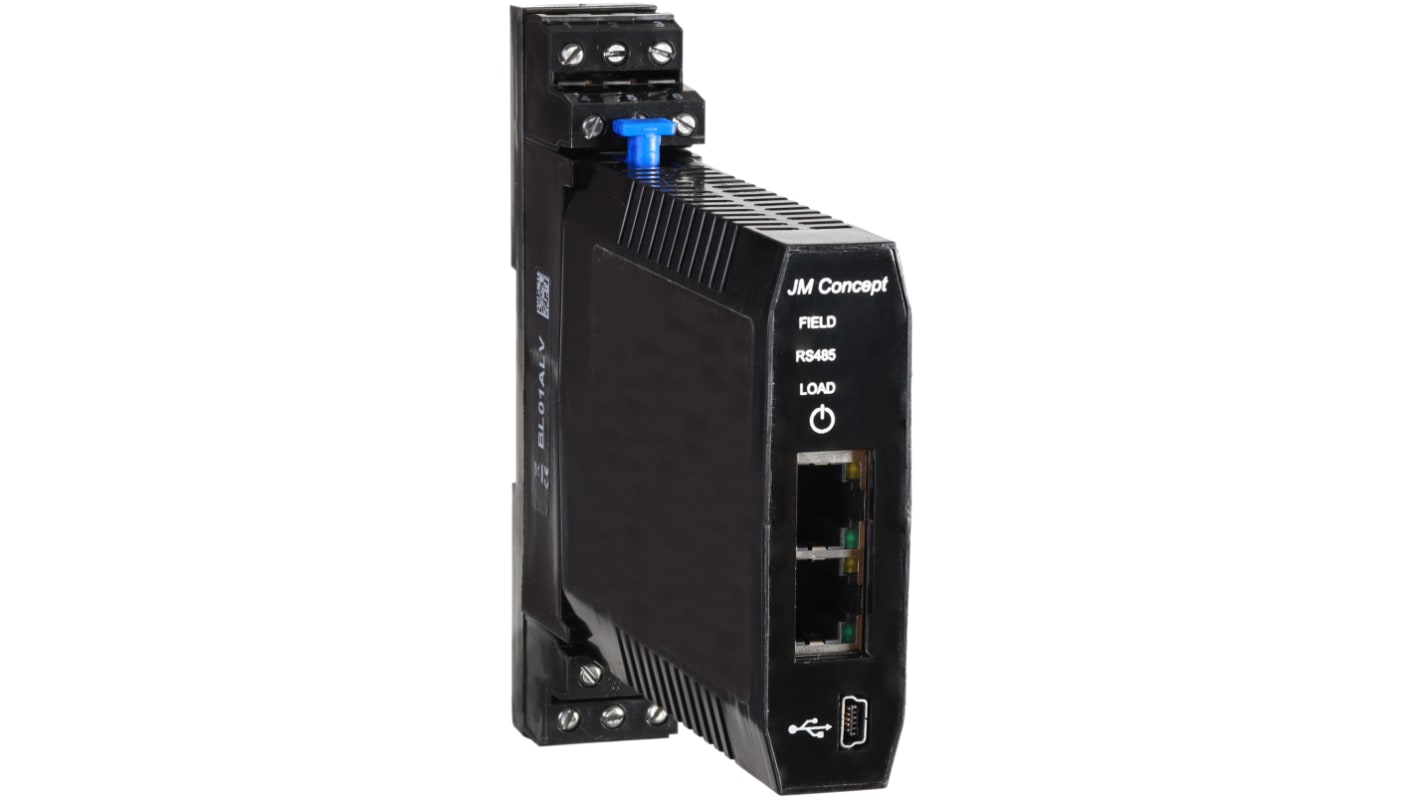

JM CONCEPT LINE Series Profinet Communication Module, , 0 Inputs, , 0 Outputs, 20 → 240 V dc, 90 → 230 V
- RS Stock No.:
- 231-1506
- Mfr. Part No.:
- MPNLINE
- Brand:
- JM CONCEPT
Subtotal (1 unit)*
£594.77
(exc. VAT)
£713.72
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 05 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £594.77 |
*price indicative
- RS Stock No.:
- 231-1506
- Mfr. Part No.:
- MPNLINE
- Brand:
- JM CONCEPT
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | JM CONCEPT | |
| Series | LINE | |
| Type | Communication Interface | |
| For Use With | LINE Communication Interface | |
| Supply Voltage | 20 → 240 V dc, 90 → 230 V ac | |
| Number of Inputs | 0 | |
| Number of Outputs | 0 | |
Select all | ||
|---|---|---|
Brand JM CONCEPT | ||
Series LINE | ||
Type Communication Interface | ||
For Use With LINE Communication Interface | ||
Supply Voltage 20 → 240 V dc, 90 → 230 V ac | ||
Number of Inputs 0 | ||
Number of Outputs 0 | ||
- COO (Country of Origin):
- FR
The JM CONCEPT interfacing system is used to decentralize the analogue inputs and outputs and to send the data back via fieldbus. The principle is based on JM Concept's analogue signal processing and isolation technology. The system is fully modular and scalable. The inputs can be process inputs as well as electrical quantities, temperature (PT100, Thermocouple with CSF, output of other sensors), or even digital inputs. It uses Profinet communication.
Communication profinet
Voltage supply 20-240Vdc or 90-230Vac 50/60Hz
Operating temperature -10°C to +60°C
Storage temperature -25°C … +80°C
Voltage supply 20-240Vdc or 90-230Vac 50/60Hz
Operating temperature -10°C to +60°C
Storage temperature -25°C … +80°C
