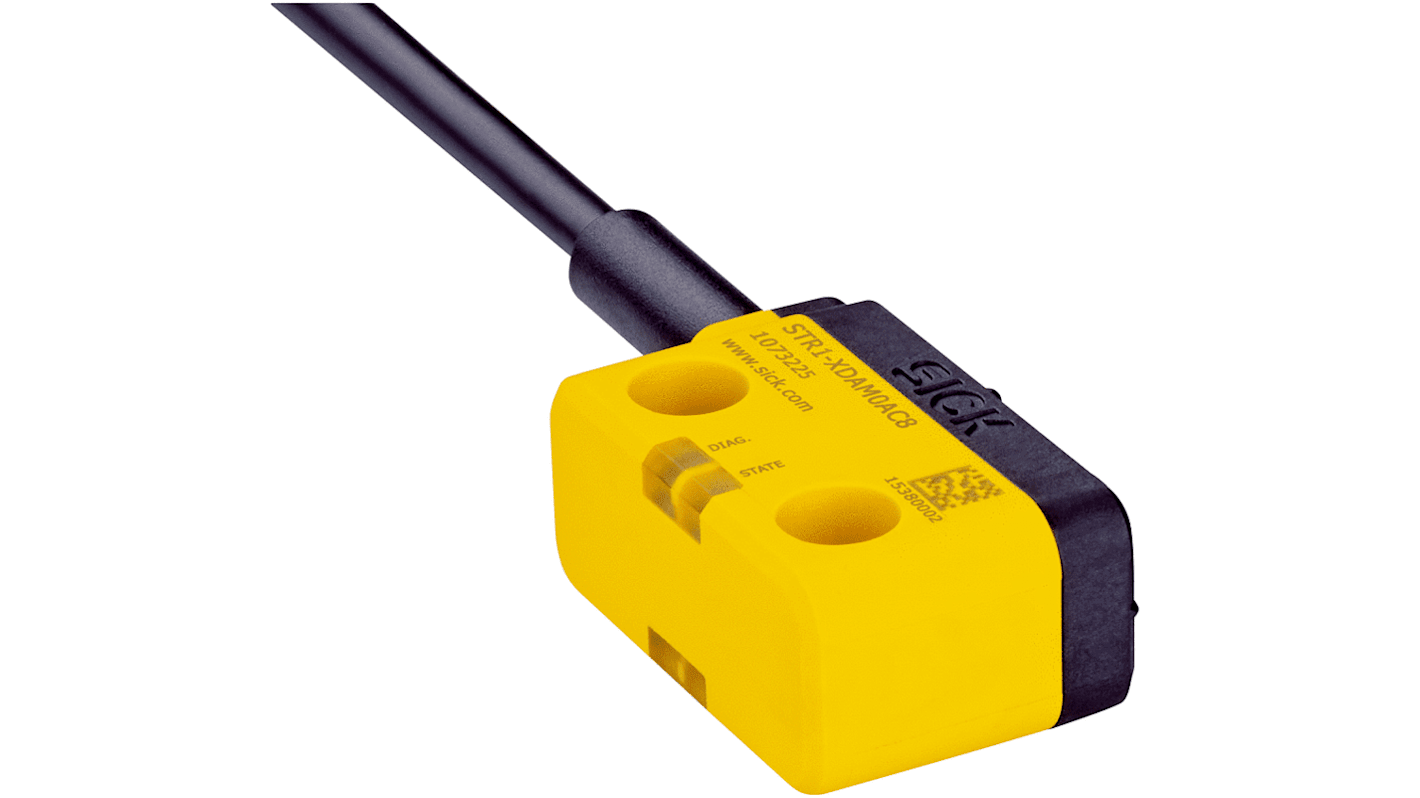

SICK STR1 Safety Switch, RFID, Vistal
- RS Stock No.:
- 285-4301
- Mfr. Part No.:
- STR1-SAXM03P8
- Brand:
- SICK
Subtotal (1 unit)*
£128.03
(exc. VAT)
£153.64
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 15 January 2027
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £128.03 |
*price indicative
- RS Stock No.:
- 285-4301
- Mfr. Part No.:
- STR1-SAXM03P8
- Brand:
- SICK
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SICK | |
| Lock Style | RFID | |
| Product Type | Safety Switch | |
| Actuator Included | No | |
| Safety Contacts | 1 | |
| Housing Material | Vistal | |
| Series | STR1 | |
| Switch Contact Current | 100mA | |
| Contact AC Voltage | 230V ac | |
| Minimum Operating Temperature | -30°C | |
| Contact DC Voltage | 24V dc | |
| IP Rating | IP69K, IP67 | |
| Hazardous Area Certification | No | |
| Maximum Operating Temperature | 70°C | |
| Width | 40mm | |
| Number of Head Directions | 5 | |
| Standards/Approvals | IEC 60529 | |
| Length | 18mm | |
| Depth | 26mm | |
| Select all | ||
|---|---|---|
Brand SICK | ||
Lock Style RFID | ||
Product Type Safety Switch | ||
Actuator Included No | ||
Safety Contacts 1 | ||
Housing Material Vistal | ||
Series STR1 | ||
Switch Contact Current 100mA | ||
Contact AC Voltage 230V ac | ||
Minimum Operating Temperature -30°C | ||
Contact DC Voltage 24V dc | ||
IP Rating IP69K, IP67 | ||
Hazardous Area Certification No | ||
Maximum Operating Temperature 70°C | ||
Width 40mm | ||
Number of Head Directions 5 | ||
Standards/Approvals IEC 60529 | ||
Length 18mm | ||
Depth 26mm | ||
- COO (Country of Origin):
- MY
SICK STR1 Series Safety Switch, 24V Supply Voltage, IP69K - STR1-SAXM03P8
This safety switch is a non-contact RFID interlock designed to monitor guards and access points in industrial automation. It provides two safe outputs and a supplementary auxiliary contact for integration into safety circuits, operating from a 24V DC supply. The unit features multiple Active sensing faces and supports versatile actuation directions for flexible installation in confined or complex guard arrangements.
Features and Benefits:
• SIL 3 safety level delivering high functional safety performance
• Category 4 PL e providing robust risk-reduction capability
• Self-monitoring OSSD outputs limiting unsafe output behaviour
• IP69K protection enabling pressure-wash cleaning compatibility
• 3M cable length allowing straightforward cabinet or field connection
• Category 4 PL e providing robust risk-reduction capability
• Self-monitoring OSSD outputs limiting unsafe output behaviour
• IP69K protection enabling pressure-wash cleaning compatibility
• 3M cable length allowing straightforward cabinet or field connection
Applications
• Suitable for monitoring machine guards on production lines
• Used with safety relays for series-connected safety architectures
• Ideal for food-industry cells requiring hygienic wash-down protection
• Can be used for multi-door access control on automated machinery
• Used for retrofit safety upgrades where Compact sensors are required
• Used with safety relays for series-connected safety architectures
• Ideal for food-industry cells requiring hygienic wash-down protection
• Can be used for multi-door access control on automated machinery
• Used for retrofit safety upgrades where Compact sensors are required
What electrical connections are provided for control integration?
It uses a 7-wire cable with dedicated OSSD outputs, enable inputs and 24V/0V supply conductors.
How does the device indicate status or faults?
Built-in LEDs provide status display and diagnostics indication for installation and troubleshooting.
What temperature range can be expected during operation?
The unit operates between -30°C and +70°C for devices with applicable serial numbers and otherwise -10°C to +70°C.
What is the typical response behaviour in safety chains?
Response time is 40ms with release and detection timings affected by downstream series connections.
Which mechanical material contributes to environmental resistance?
The housing is MADE from VISTAL providing the structural enclosure for the sensor.
