IDEM M-HS Safety Interlock Switch Actuator Included, Metal
- RS Stock No.:
- 185-7255
- Mfr. Part No.:
- M-HS (B201)
- Brand:
- IDEM
Subtotal (1 unit)*
£136.22
(exc. VAT)
£163.46
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 4 unit(s) shipping from 22 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £136.22 |
*price indicative
- RS Stock No.:
- 185-7255
- Mfr. Part No.:
- M-HS (B201)
- Brand:
- IDEM
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | IDEM | |
| Lock Type | Interlock | |
| Actuator Included | Yes | |
| Connection Type | Screw | |
| Housing Material | Metal | |
| Series | M-HS | |
| Length | 166.5mm | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | +50°C | |
| Depth | 109mm | |
| Width | 26mm | |
Select all | ||
|---|---|---|
Brand IDEM | ||
Lock Type Interlock | ||
Actuator Included Yes | ||
Connection Type Screw | ||
Housing Material Metal | ||
Series M-HS | ||
Length 166.5mm | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature +50°C | ||
Depth 109mm | ||
Width 26mm | ||
- COO (Country of Origin):
- GB

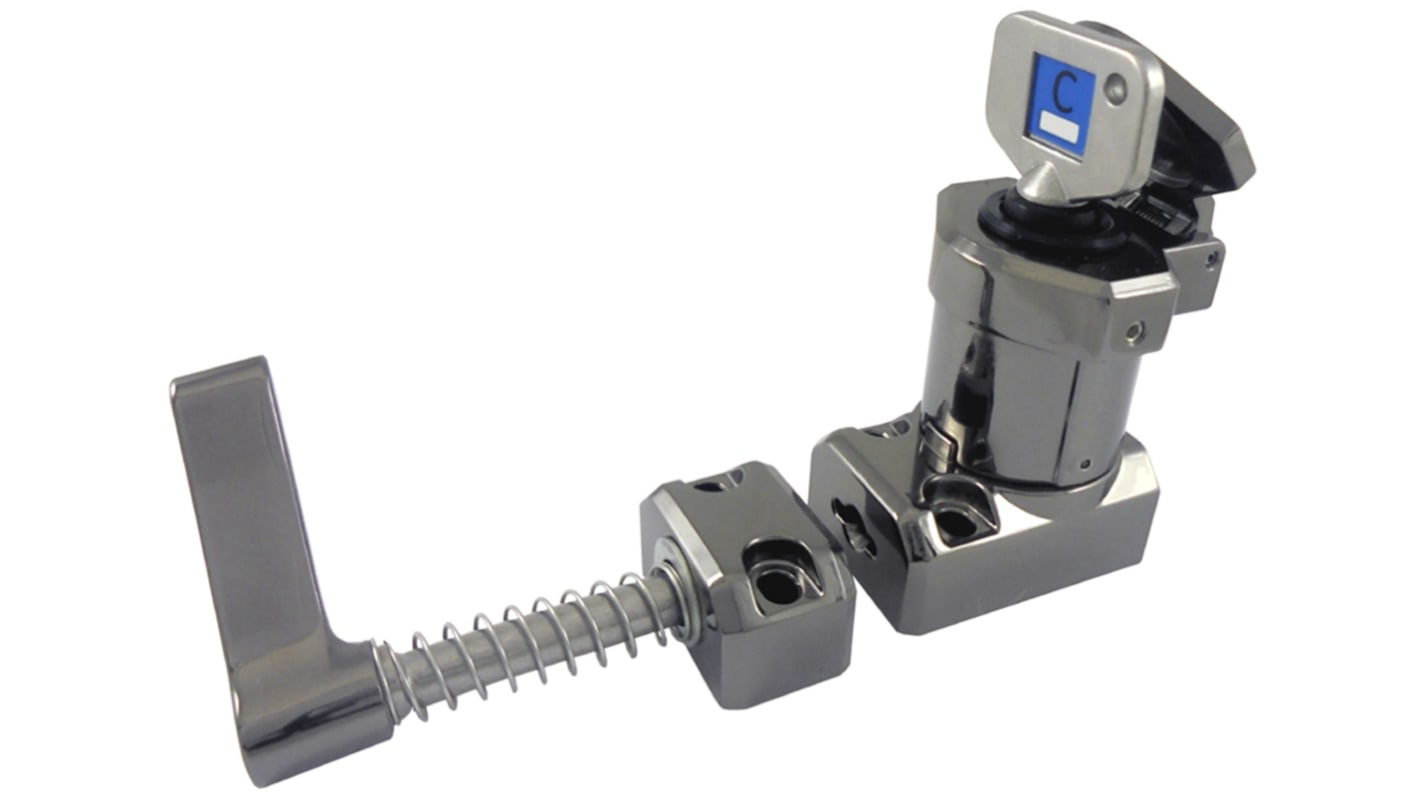

The M-HS Single Key Handle Interlock operates on the principle that when the key is "trapped" the handle can be turned and removed opening the interlock. When the handle is re-inserted into the interlock the "trapped" key can then be removed. Once the released key is returned to the Isolator Switch or Key Exchange System power can then be re-applied to the guarded area. Only when the key is removed from the Isolator Switch or Key Exchange System and turned in the M-HS Handle Interlock can the handle be removed and the guard opened. In a die cast mirror polished housing the M-HS Handle Interlock is suitable for SIP and CIP cleaning processes with high pressure hosing with detergents at high temperatures.
