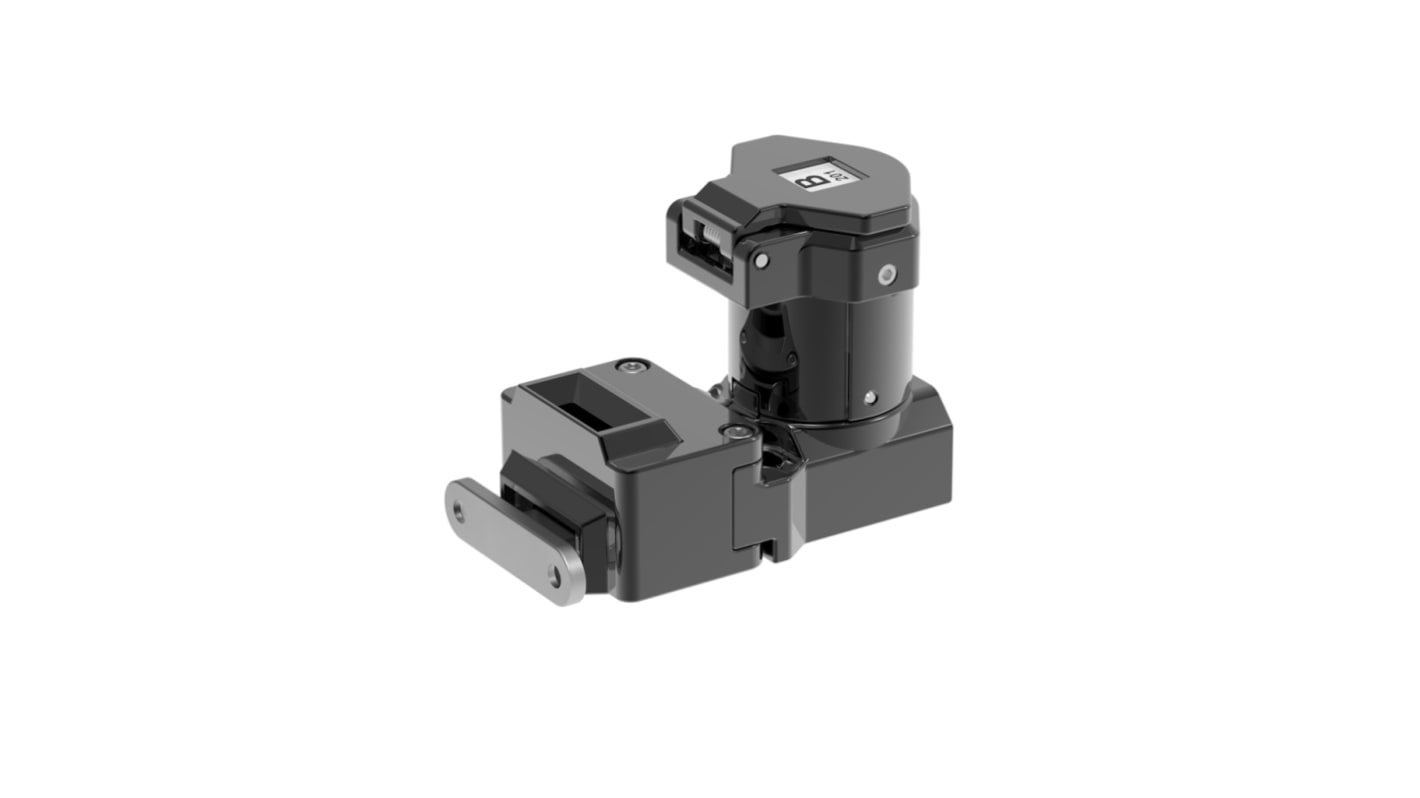

IDEM M-TS Safety Interlock Switch, Trapped Key Actuator Included, Metal
- RS Stock No.:
- 185-7254
- Mfr. Part No.:
- M-TS (B201)
- Brand:
- IDEM
Subtotal (1 unit)*
£153.21
(exc. VAT)
£183.85
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 29 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £153.21 |
*price indicative
- RS Stock No.:
- 185-7254
- Mfr. Part No.:
- M-TS (B201)
- Brand:
- IDEM
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | IDEM | |
| Lock Style | Trapped Key | |
| Lock Type | Interlock | |
| Actuator Included | Yes | |
| Connection Type | Screw | |
| Housing Material | Metal | |
| Number of Head Directions | 2 | |
| Series | M-TS | |
| Maximum Operating Temperature | +50°C | |
| Minimum Operating Temperature | -25°C | |
| Length | 104mm | |
| Width | 44mm | |
| Depth | 109mm | |
Select all | ||
|---|---|---|
Brand IDEM | ||
Lock Style Trapped Key | ||
Lock Type Interlock | ||
Actuator Included Yes | ||
Connection Type Screw | ||
Housing Material Metal | ||
Number of Head Directions 2 | ||
Series M-TS | ||
Maximum Operating Temperature +50°C | ||
Minimum Operating Temperature -25°C | ||
Length 104mm | ||
Width 44mm | ||
Depth 109mm | ||
- COO (Country of Origin):
- GB
The M-TS Single Key Tongue Interlock operates on the principle that when the key is "trapped" the actuator can be removed and is in the open position. When the actuator is re-inserted into the interlock the "trapped" key can then be removed. Once the released key is in the Isolator Switch or Key Exchange System power can then be re-applied to the guarded area. Only when the key is inserted and turned in the M-TS Tongue Interlock can the actuator be removed and the guard opened. Manufactured in robust die cast metal with high mirror polished finish the M-TS Tongue Interlock is suitable for SIP and CIP cleaning processes with high pressure hosing with detergents at high temperatures.
