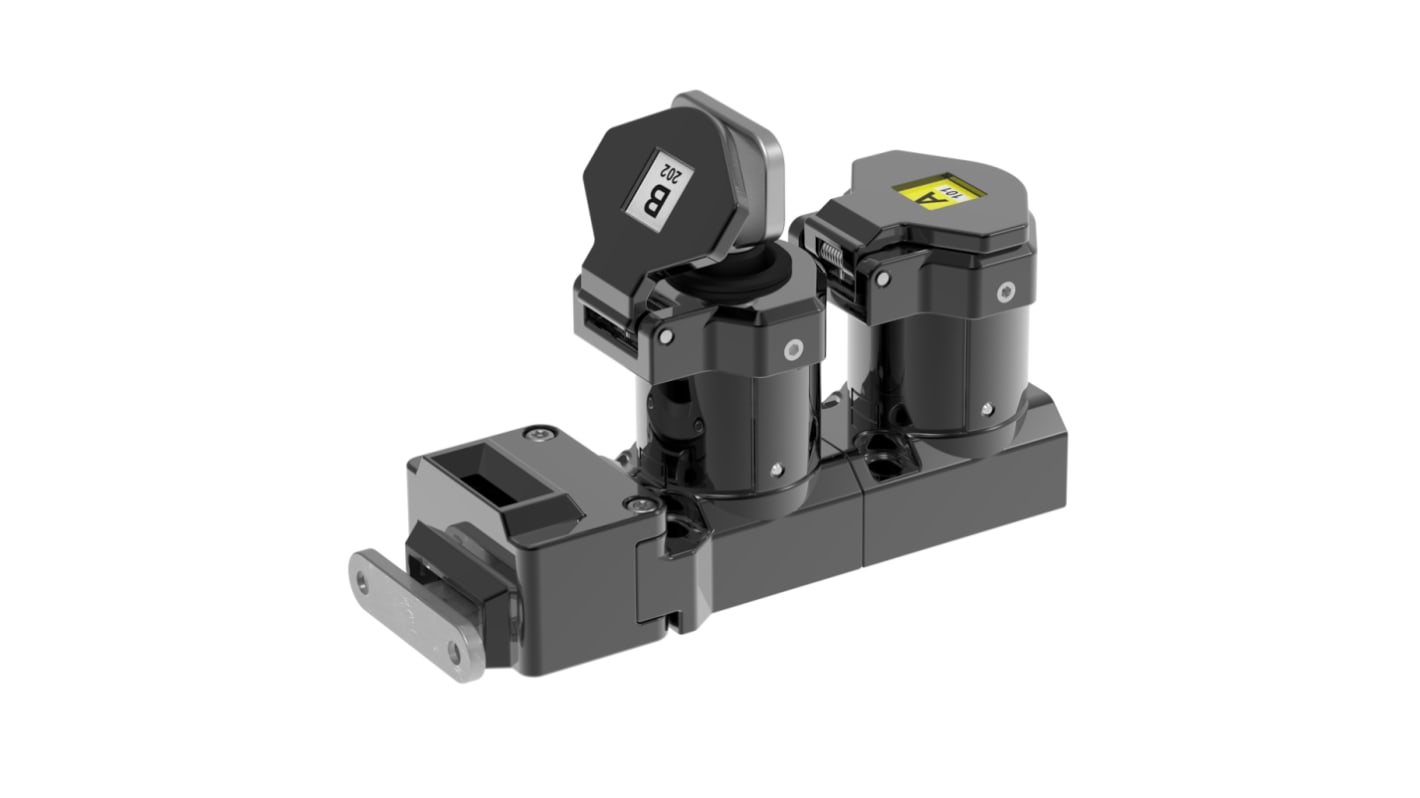

IDEM M-TD Safety Interlock Switch, Trapped Key Actuator Included, Metal
- RS Stock No.:
- 185-7249
- Mfr. Part No.:
- M-TD-11 (A101, B202)
- Brand:
- IDEM
Subtotal (1 unit)*
£316.23
(exc. VAT)
£379.48
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 19 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £316.23 |
*price indicative
- RS Stock No.:
- 185-7249
- Mfr. Part No.:
- M-TD-11 (A101, B202)
- Brand:
- IDEM
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | IDEM | |
Lock Style | Trapped Key | |
Lock Type | Interlock | |
Actuator Included | Yes | |
Connection Type | Screw | |
Housing Material | Metal | |
Number of Head Directions | 2 | |
Series | M-TD | |
Minimum Operating Temperature | -25°C | |
Maximum Operating Temperature | +50°C | |
Depth | 109mm | |
Width | 44mm | |
Length | 148mm | |
Select all | ||
---|---|---|
Brand IDEM | ||
Lock Style Trapped Key | ||
Lock Type Interlock | ||
Actuator Included Yes | ||
Connection Type Screw | ||
Housing Material Metal | ||
Number of Head Directions 2 | ||
Series M-TD | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature +50°C | ||
Depth 109mm | ||
Width 44mm | ||
Length 148mm | ||
- COO (Country of Origin):
- GB
The M-TD-11 has 2 sequential keys - one key trapped, one key free - actuator unlocked. When the actuator is unlocked the "access" key can be taken "on the person" into the guarded area without fear of the "trapped" key being removed and the equipment restarted. The M-TD-11 Tongue Interlock works on the principle that when the "access" key is "trapped" the actuator cannot be removed and is locked in position. Only when the "free" key from the Isolator or Key Exchange System is inserted into the second barrel can the "access" key be removed thereby allowing the actuator to be removed. Only when the isolator key is returned to the Isolator Switch can power then be re-applied to the guarded area. With a die-cast body with mirror polished finish the M-TD-11 Tongue Interlock is suitable for SIP and CIP cleaning processes with high pressure hosing with detergents at high temperatures.
