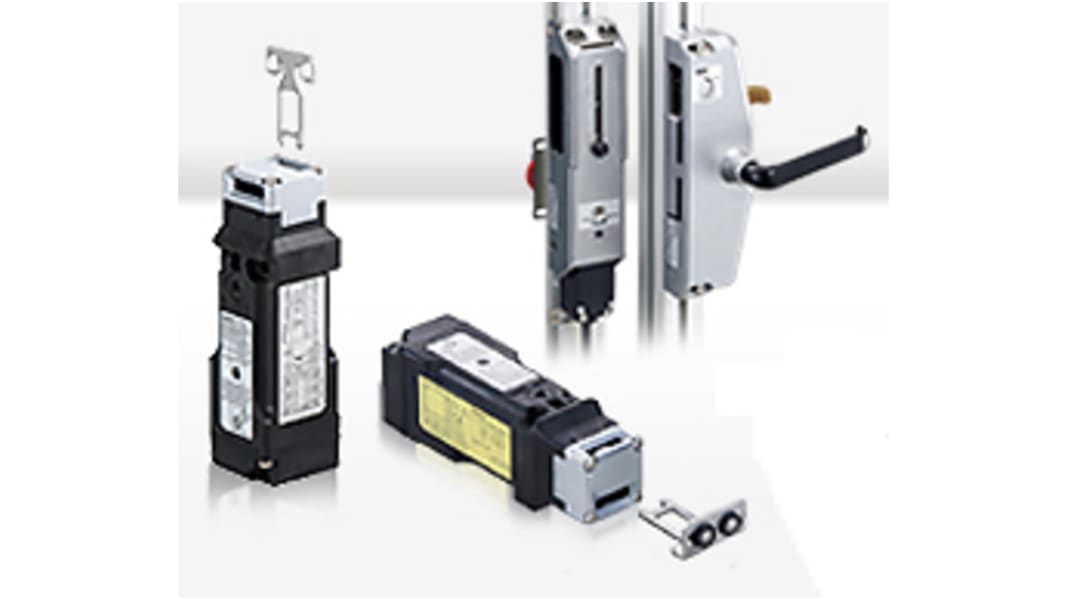

Idec HS6E Safety Interlock Switch, 1NC/1NC + 2NC + 1NC, Keyed, Spring Lock
- RS Stock No.:
- 179-4752
- Mfr. Part No.:
- HS6E-M44B05-G
- Brand:
- Idec
Bulk discount available
Subtotal (1 unit)*
£299.70
(exc. VAT)
£359.64
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 56 unit(s) ready to ship
- Plus 10 unit(s) shipping from 27 October 2025
- Plus 10 unit(s) shipping from 08 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 24 | £299.70 |
25 - 49 | £278.72 |
50 + | £263.73 |
*price indicative
- RS Stock No.:
- 179-4752
- Mfr. Part No.:
- HS6E-M44B05-G
- Brand:
- Idec
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Idec | |
Lock Style | Keyed | |
Normal State Configuration | 1NC/1NC + 2NC + 1NC | |
Lock Type | Spring Lock | |
Maximum AC Voltage | 250V | |
Maximum DC Voltage | 30V | |
Connection Type | Cable | |
IP Rating | IP67 | |
Series | HS6E | |
Depth | 75mm | |
Maximum Current | 2.5A | |
Width | 15mm | |
Length | 75mm | |
Minimum Operating Temperature | -25°C | |
Maximum Operating Temperature | +50°C | |
Select all | ||
---|---|---|
Brand Idec | ||
Lock Style Keyed | ||
Normal State Configuration 1NC/1NC + 2NC + 1NC | ||
Lock Type Spring Lock | ||
Maximum AC Voltage 250V | ||
Maximum DC Voltage 30V | ||
Connection Type Cable | ||
IP Rating IP67 | ||
Series HS6E | ||
Depth 75mm | ||
Maximum Current 2.5A | ||
Width 15mm | ||
Length 75mm | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature +50°C | ||
- COO (Country of Origin):
- JP
IDEC Switch
The IDEC HS6B subminiature 5-pole safety interlock switch is the world's smallest switch. It comes in a dimension of 30mm x 15mm x 78mm. This interlock switch is available with a 5m cable length.
Features and Benefits
• 1NC/1NC(main), 2NC(door monitor) and 1NC(lock monitor) contact configuration
• Cable connection type
• Compact
• Easy to install
• Highest safety achieve by dual contacts and monitor contacts
• Integral cable design minimizes wiring, preventing wiring
• LED indicator shows solenoid operation
• Service temperature ranges between -25°C and 50°C
• Spring lock type
• Two actuator entry slots provide flexibility for installation
• Cable connection type
• Compact
• Easy to install
• Highest safety achieve by dual contacts and monitor contacts
• Integral cable design minimizes wiring, preventing wiring
• LED indicator shows solenoid operation
• Service temperature ranges between -25°C and 50°C
• Spring lock type
• Two actuator entry slots provide flexibility for installation
Applications
• Tight spaces
Certifications
• CCC certified
• CE certified
• CSA C22.2 No• 14
• CULus listed
• EN1088
• EN60947-5-1
• EN954-1
• GB14048.5
• GS-ET-15
• IEC 60529
• IEC /EN60204-1
• IEC /EN60947-5-1
• IP67 rating
• ISO14119
• SO 13849-1
• TÜV approved
• UL508
• UL-listed
• CE certified
• CSA C22.2 No• 14
• CULus listed
• EN1088
• EN60947-5-1
• EN954-1
• GB14048.5
• GS-ET-15
• IEC 60529
• IEC /EN60204-1
• IEC /EN60947-5-1
• IP67 rating
• ISO14119
• SO 13849-1
• TÜV approved
• UL508
• UL-listed
