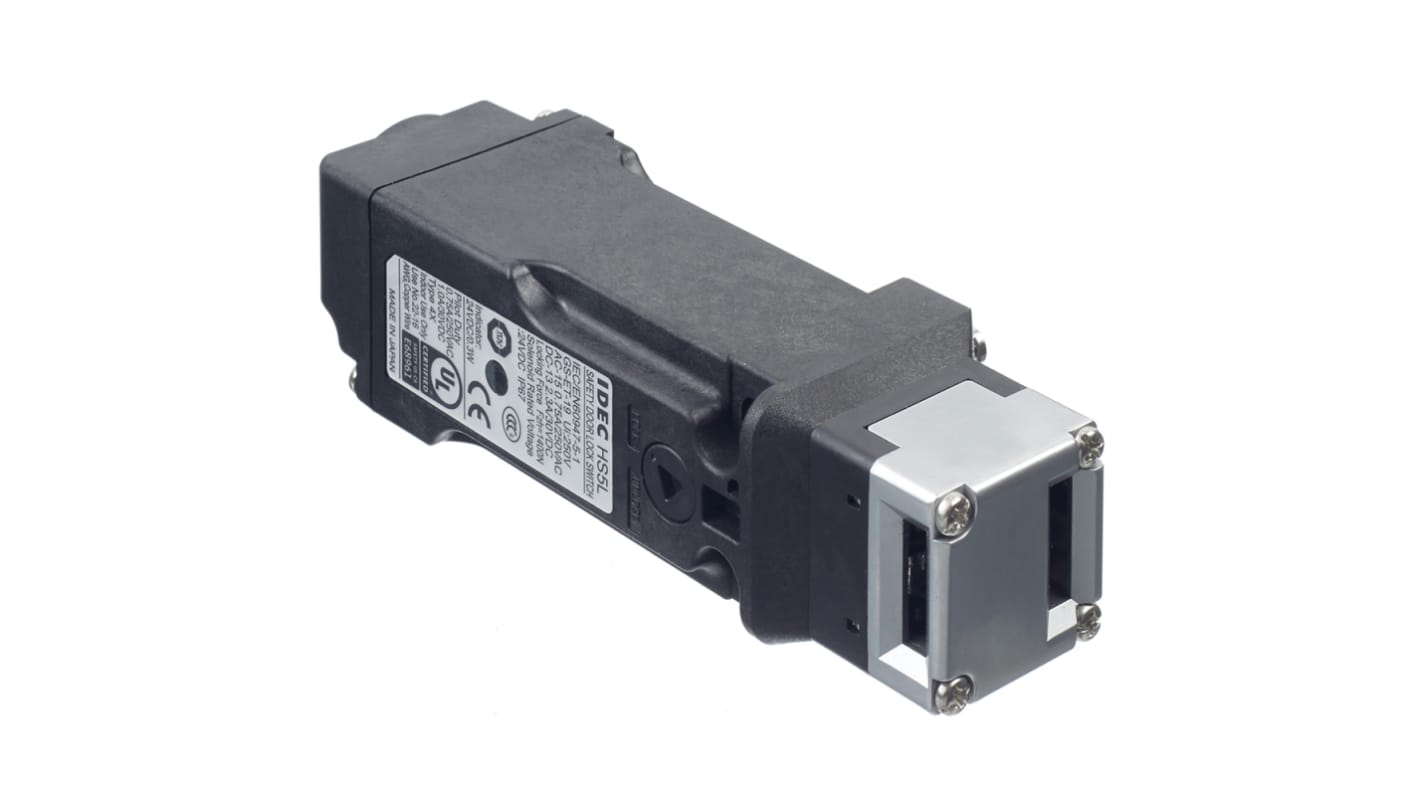

Idec HS5L Safety Interlock Switch, 2NC + 1NC/1NO, Keyed, Spring Lock

View all Safety Interlock Switches
Bulk discount available

Subtotal (1 unit)*

£212.71

(exc. VAT)

£255.25

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 3 unit(s) ready to ship
  • Plus 2 unit(s) shipping from 16 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 24£212.71
25 - 49£197.82
50 +£187.18

*price indicative

RS Stock No.:
179-4745
Mfr. Part No.:
HS5L-VC44LM-G
Brand:
Idec
Find similar products by selecting one or more attributes.
Select all

Brand

Idec

Lock Style

Keyed

Normal State Configuration

2NC + 1NC/1NO

Lock Type

Spring Lock

Maximum AC Voltage

250V

Maximum DC Voltage

30V

Connection Type

M20

IP Rating

IP67

Series

HS5L

Width

61.6mm

Maximum Operating Temperature

+55°C

Depth

127mm

Minimum Operating Temperature

-25°C

Maximum Current

2.5A

Length

35mm

COO (Country of Origin):
JP

Idec Switch


The Idec HS5L series solenoid interlock switch has a locking strength of 1400N and four contacts in a compact housing. It is designed to work in applications with limited mounting spaces such as small doors. This model is equipped with a manual lock release key and an LED indicator.

Features and Benefits


• 2NC (door monitor) and 1NC-1NO (lock monitor) safety contacts
• Compact in size
• Dual safety circuit and four-circuit independent outputs available
• Gold-plated contacts suitable for small loads
• Head orientation can be rotated in eight different ways
• LED illumination colour is green
• M20 connection type
• Operating temperature ranges between -25°C and 55°C
• Spring clamp terminal block prevents loosening of wires due to vibration
• Spring lock type

Applications


• Cutting
• Doors
• Pressing
• Rotating

Certifications


• CCC certified
• CE certified
• cUL listed
• EN ISO14119
• IP67 rated
• TUV
