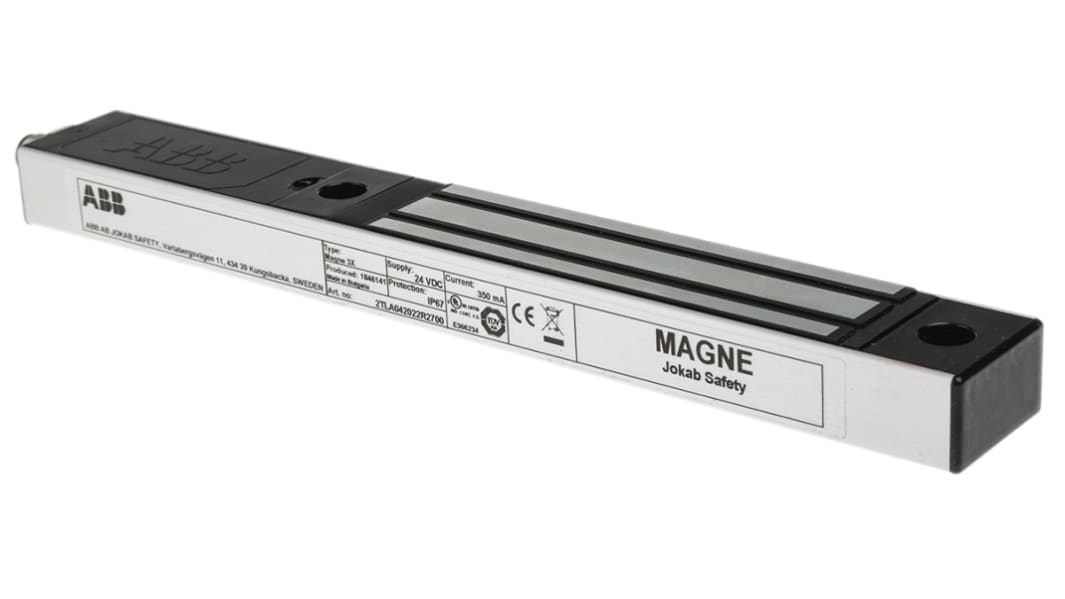

ABB Jokab Safety Interlock Switch, Electromagnetic, Aluminium, Electromagnetic
- RS Stock No.:
- 176-0046
- Mfr. Part No.:
- 2TLA042022R2700 Magne 3X M12-5
- Brand:
- ABB Jokab
Subtotal (1 unit)*
£168.04
(exc. VAT)
£201.65
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 3 unit(s) shipping from 07 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £168.04 |
*price indicative
- RS Stock No.:
- 176-0046
- Mfr. Part No.:
- 2TLA042022R2700 Magne 3X M12-5
- Brand:
- ABB Jokab
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ABB Jokab | |
| Lock Style | Electromagnetic | |
| Lock Type | Electromagnetic | |
| Maximum DC Voltage | 24V | |
| Connection Type | M12 | |
| Housing Material | Aluminium | |
| Range | Magne | |
| IP Rating | IP67 | |
| Minimum Operating Temperature | -20°C | |
| Depth | 35mm | |
| Length | 260mm | |
| Maximum Operating Temperature | +50°C | |
| Standards Met | CE Certified | |
| Width | 21.65mm | |
Select all | ||
|---|---|---|
Brand ABB Jokab | ||
Lock Style Electromagnetic | ||
Lock Type Electromagnetic | ||
Maximum DC Voltage 24V | ||
Connection Type M12 | ||
Housing Material Aluminium | ||
Range Magne | ||
IP Rating IP67 | ||
Minimum Operating Temperature -20°C | ||
Depth 35mm | ||
Length 260mm | ||
Maximum Operating Temperature +50°C | ||
Standards Met CE Certified | ||
Width 21.65mm | ||
ABB Jokab Safety Interlock Switch, 24V DC Voltage Rating, IP67 Rating - Magne Series - 2TLA042022R2700 Magne 3X M12-5
Keen to protect your workforce around dangerous equipment? Keep potential hazards bolted down with this ABB Jokab safety interlock switch. By waiting for protective measures to kick in before activating your machinery, it stays on the lookout for risks so you can focus on working. Don't worry about disruption during operation, as the device's 1500N holding force helps ensure it keeps a firm grip on your guards. A 24V DC supply voltage means the unit's ready to work with common power sources. Magnets are on hand to quickly fix it in place, so mounting is done in a snap.
Features & Benefits
• IP67 rating indicates full protection against dust and temporary submersion in shallow water
• Electromagnetic locking style minimises the need for moving parts and increases the unit's lifespan
• M12 thread connection follows industry standards to work with common equipment
• Electromagnetic locking style minimises the need for moving parts and increases the unit's lifespan
• M12 thread connection follows industry standards to work with common equipment
Applications
• Material handling
• Pharmaceutical processing
• Metalworking
• Pharmaceutical processing
• Metalworking
Does this product come with an anchor plate?
If you want to install an anchor plate, you can order one separately (176-0040).
