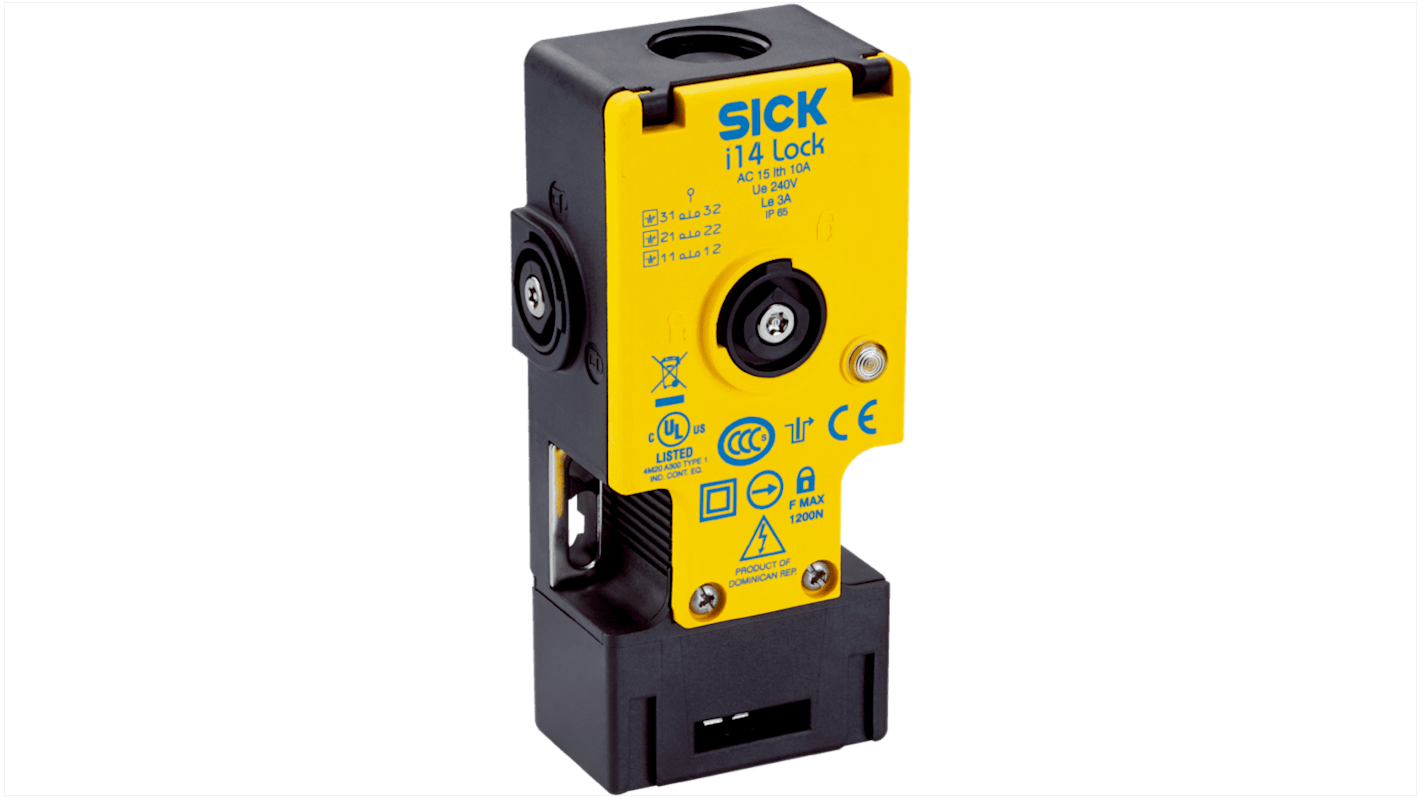

SICK i14 Safety Interlock Switch, 2NC/1NO, Electromagnetic, Glass Fibre Reinforced Thermoplastic, Electromagnetic

View all Safety Interlock Switches

Subtotal (1 unit)*

£194.88

(exc. VAT)

£233.86

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 9 unit(s) ready to ship
  • Plus 26 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£194.88

*price indicative

RS Stock No.:
285-9584
Mfr. Part No.:
i14-M0213 Lock
Brand:
SICK
Find similar products by selecting one or more attributes.
Select all

Brand

SICK

Lock Style

Electromagnetic

Normal State Configuration

2NC/1NO

Lock Type

Electromagnetic

Maximum AC Voltage

240V ac

Maximum DC Voltage

24V dc

Housing Material

Glass Fibre Reinforced Thermoplastic

IP Rating

IP65

Number of Head Directions

3

Series

i14

Dimensions

120 x 35 x 58mm

Standards Met

CE

Width

35mm

Depth

58mm

Length

120mm

Maximum Current

3A

Maximum Operating Temperature

+60°C

Minimum Operating Temperature

-20°C

COO (Country of Origin):
DO

Overview


The i14 Lock safety locking device is used for keeping guards safely locked until a hazardous area can be entered. Its small design, a mechanical unlocking mechanism on three sides, and its LED status indicator make it an ideal solution for guard door loc

-

At a glance


Compact plastic housing
M20 x 1.5 cable entry gland
Power to release
Lock monitoring
LED locking indicator
Mechanical unlocking mechanism on three sides

Your Benefit


Cost-effective solution for all standard safety applications
LED status indicator offers improved diagnostics
Easy access to wiring for installation and maintenance due to a hinged cover – access to the unlocking mechanism from three sides
Small housing s

Applications


Safe monitoring of rotatable, laterally sliding or removable guards
Personal protection for over travel
Process protection for automated production systems

Note


Product details cover the whole product family. For details on the specifications for this individual product, please refer to the datasheet.
