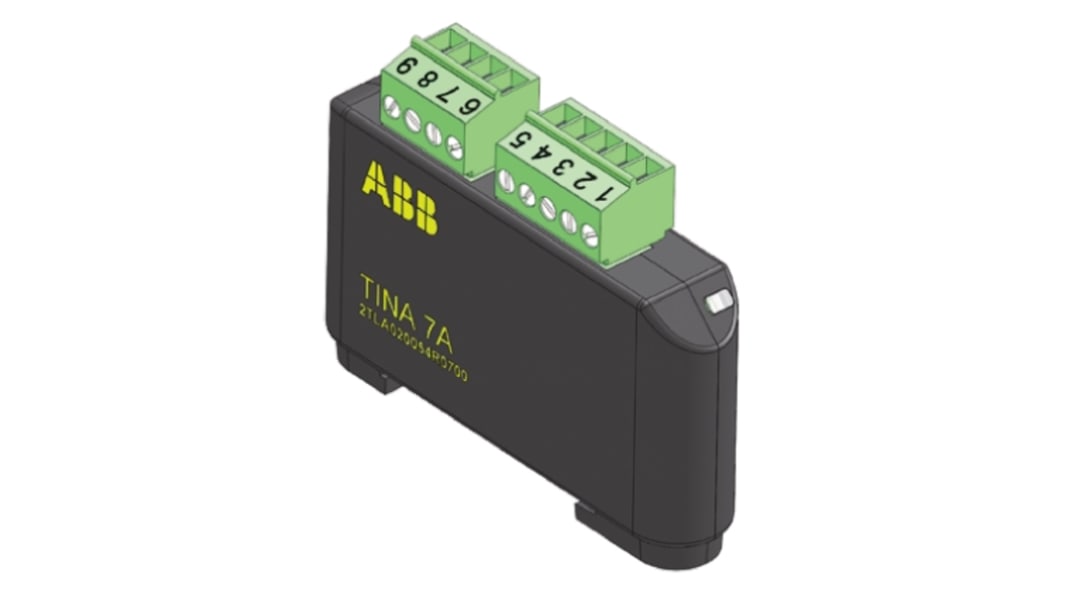

The ABB adaptor is the latest tech accessory compatible with the Pluto safety controller. This adaptor makes it possible to install/connect many different types of safety devices in the same safety circuit. The vital module is based on a dynamic single-channel concept, as opposed to conventional dual-channel safety relays. ABB has designed this unit to accommodate up to 30 dynamic sensors within the safety circuit that can be supervised by one Vital module. The Vital unit can replace several safety relays. Besides, the safety components with output contacts can be connected to the Vital via low-cost Tina adaptors. The Vital also has automatically or manually supervised reset selection, dual safety outputs and an information output for reset indication and status information for PLC's.

Cost-effective cable routing/ connections
Information output with two functions
LED indication of power supply, dynamic signal and outputs
Detachable connector blocks
Two NO safety outputs
Manually supervised or automatic reset
Can accommodate long cable lengths
Standard width is 22.5mm
Mechanical life of >107 operations

UL
CSA
European Machinery Directive 2006/42/EC
EN ISO 12100-1
EN ISO 12100-2
EN 60204-1
EN 954-1
EN ISO 13849-1
EN 62061
IP40
