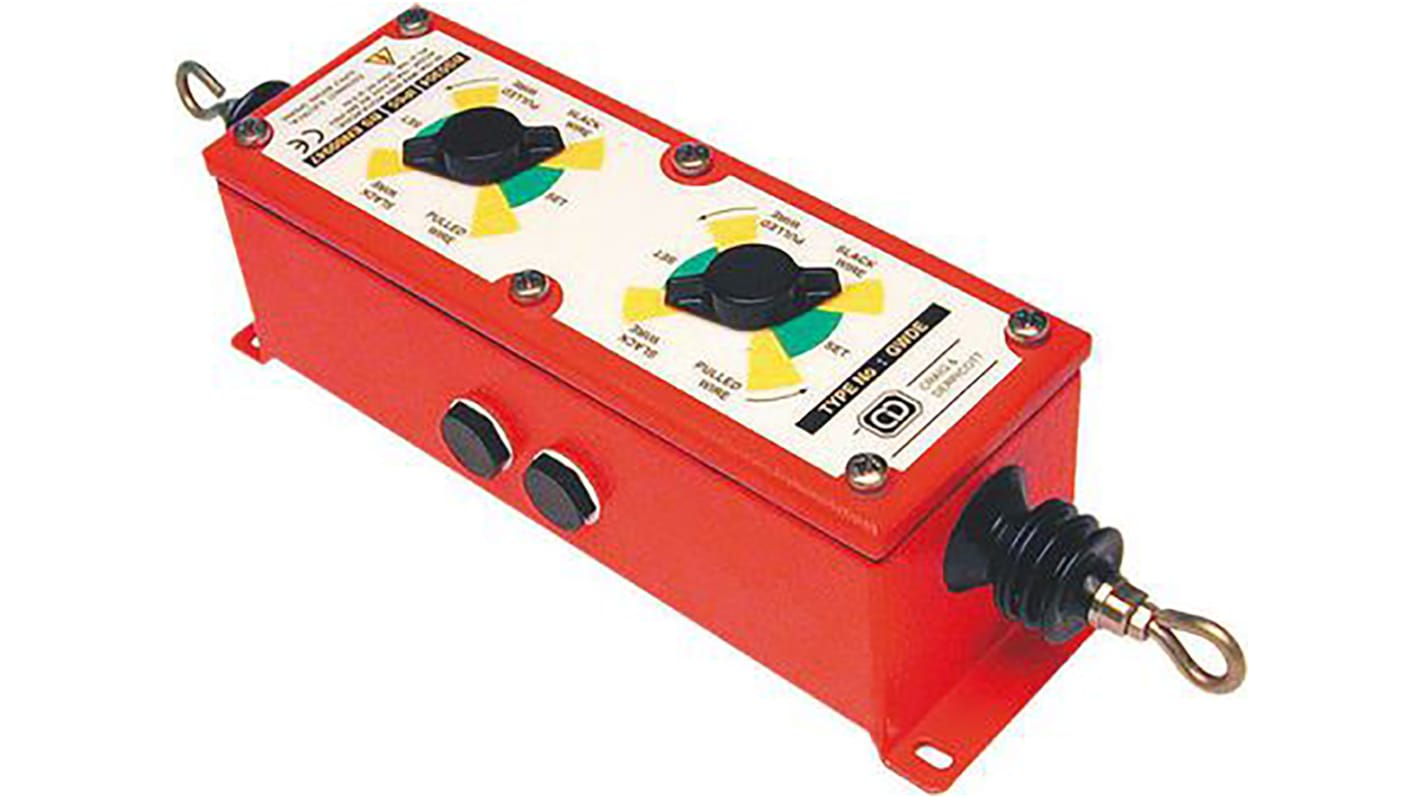

Craig & Derricott GWD Rope Pull Switch 285 mm, Straight, 2 NO/2 NC

View all Rope Pull Switches

Subtotal (1 unit)*

£943.16

(exc. VAT)

£1,131.79

(inc. VAT)

Add to Basket
Select or type quantity
Stocked by manufacturer
  • Ready to ship from 28 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£943.16

*price indicative

RS Stock No.:
511-7175
Mfr. Part No.:
GWDE/RS
Brand:
Craig & Derricott
Find similar products by selecting one or more attributes.
Select all

Brand

Craig & Derricott

Product Type

Rope Pull Switch

Indicator Type

Rope Tension

Contact Configuration

2 NO/2 NC

Mounting Orientation

Straight

IP Rating

IP65

Series

GWD

Reset Button

Yes

Contact Current

16A

Contact AC Voltage

250V ac

E-Stop Button

Yes

Contact DC Voltage

24V dc

Depth

110mm

Length

285mm

Housing Material

Steel

Standards/Approvals

ISO, EN

Width

94mm

Hazardous Area Certification

No

Conduit Entry

M20

Mechanical Life

1000000Operations

COO (Country of Origin):
GB

GWD Series, Double Grab Wire


Designed to offer grabwire switch protection for personnel working in close proximity to conveyors or rotating and moving machines

Typical applications:- conveyors, assembly lines, transfer lines, packaging machinery, process equipment

Double grabwire switches are a convenient way of installing two rope pull switches on a long rope run, with common wiring and two heads

When the units are correctly installed and set, the system switching contacts are closed allowing the system to operate

If the grabwire is pulled the switch contacts will open, providing operator safety. Whether the grabwire has been pulled, gone slack or been broken, it can only be started by manually resetting the switch unit

100M max span, each side

Ingress protection to IP65 as standard

Sealed M20 cable entries

Safety and auxiliary contacts as standard 2 N/C + 2 N/O (each side)

To comply with BS 5304 switch units should be fitted at each end of the grabwire

To complete an installation a connection kit is required, containing the wire rope, instruction leaflet and all other necessary elements

Please order the appropriate kit for length for your installation from the RS Rope setting kits for grabwire switches

Standards & Approvals BS EN 60947-5-1, BS EN 60947-5-5, BS 5304

Note

To comply with safety standards, a switch unit should be fitted at each end of the grab wire to afford system and operator protection.
Our rope switch kits contain all fittings necessary for installation. Available in 5, 10, 20, 30, 50 and 75 metre lengths.
Stock No typ 239-6757
