INA NKI45/35-TV-XL 45 mm ID Roller Bearing Needle, 62 mm OD
- RS Stock No.:
- 260-0631
- Mfr. Part No.:
- NKI45/35-TV-XL
- Brand:
- INA
Subtotal (1 unit)*
£71.95
(exc. VAT)
£86.34
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 8 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £71.95 |
*price indicative
- RS Stock No.:
- 260-0631
- Mfr. Part No.:
- NKI45/35-TV-XL
- Brand:
- INA
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | INA | |
| Product Type | Roller Bearing | |
| Inside Diameter | 45mm | |
| Race Width | 35mm | |
| Bore Type | Parallel | |
| Cage Material | Steel | |
| Roller Material | Steel | |
| Outside Diameter | 62mm | |
| Series | NKI | |
| Standards/Approvals | No | |
| Number of Rows | 1 | |
| Static Load Rating | 132000N | |
| Limiting Speed | 9200rpm | |
| Dynamic Load Rating | 67000N | |
| Bearing Type | Needle | |
| Select all | ||
|---|---|---|
Brand INA | ||
Product Type Roller Bearing | ||
Inside Diameter 45mm | ||
Race Width 35mm | ||
Bore Type Parallel | ||
Cage Material Steel | ||
Roller Material Steel | ||
Outside Diameter 62mm | ||
Series NKI | ||
Standards/Approvals No | ||
Number of Rows 1 | ||
Static Load Rating 132000N | ||
Limiting Speed 9200rpm | ||
Dynamic Load Rating 67000N | ||
Bearing Type Needle | ||

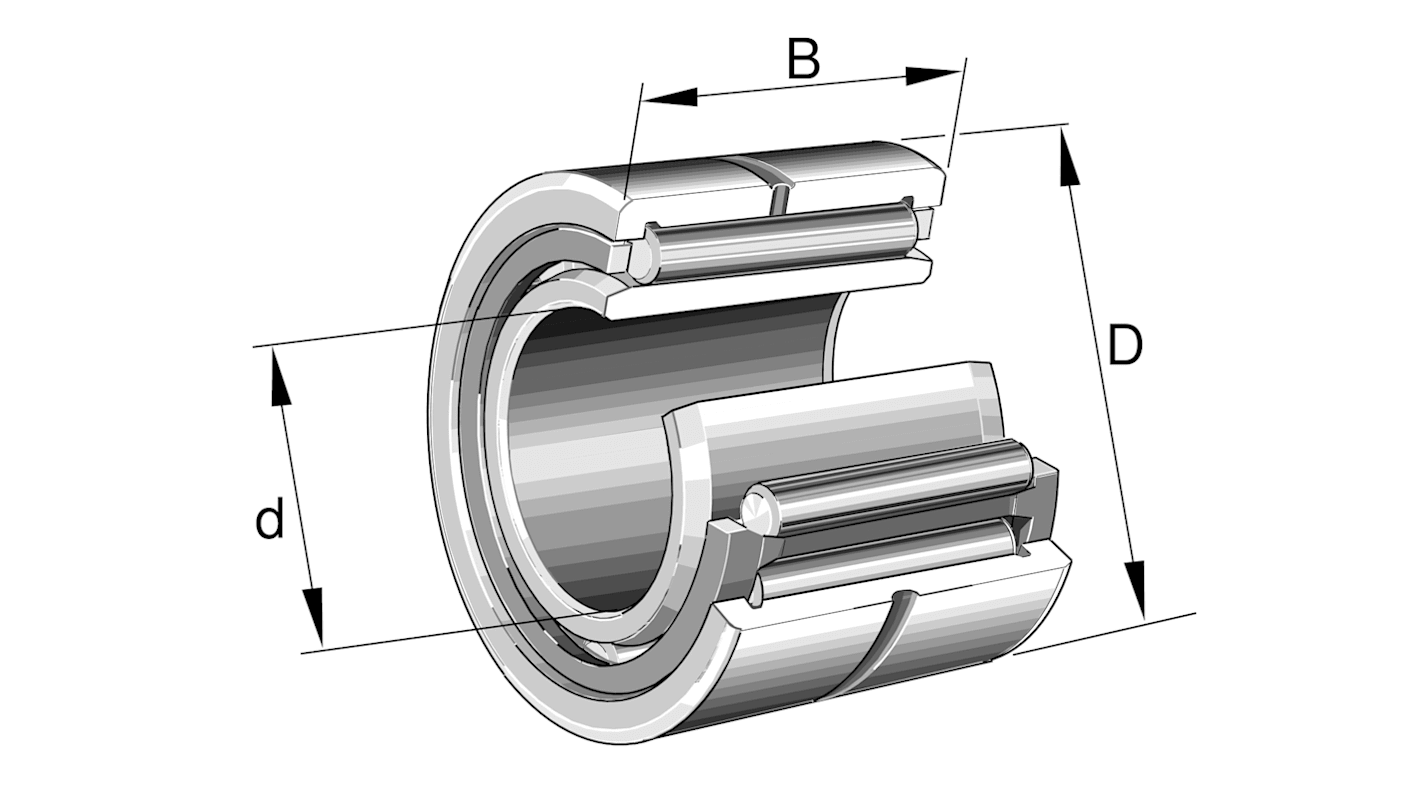

The INA needle roller has bore diameter of 45 mm and outside diameter of 62 mm.
Basic dynamic load rating, radial 67000 N
Basic static load rating, radial 132000 N
Fatigue load limit, radial 24300 N
