FAG NU311-E-XL-TVP2 55 mm ID Roller Bearing, 120 mm OD
- RS Stock No.:
- 260-0527
- Mfr. Part No.:
- NU311-E-XL-TVP2
- Brand:
- FAG
Subtotal (1 unit)*
£88.90
(exc. VAT)
£106.68
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 6 unit(s) shipping from 02 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £88.90 |
*price indicative
- RS Stock No.:
- 260-0527
- Mfr. Part No.:
- NU311-E-XL-TVP2
- Brand:
- FAG
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | FAG | |
| Product Type | Roller Bearing | |
| Inside Diameter | 55 mm | |
| Race Width | 29mm | |
| Bore Type | Parallel | |
| Roller Material | Steel | |
| Cage Material | Polyamide | |
| Internal Clearance | CN | |
| Series | NU311-E-XL-TVP2 | |
| Static Load Rating | 139000N | |
| Number of Rows | 1 | |
| Outside Diameter | 120 mm | |
| Limiting Speed | 8000rpm | |
| Standards/Approvals | No | |
| Dynamic Load Rating | 159000N | |
| Select all | ||
|---|---|---|
Brand FAG | ||
Product Type Roller Bearing | ||
Inside Diameter 55 mm | ||
Race Width 29mm | ||
Bore Type Parallel | ||
Roller Material Steel | ||
Cage Material Polyamide | ||
Internal Clearance CN | ||
Series NU311-E-XL-TVP2 | ||
Static Load Rating 139000N | ||
Number of Rows 1 | ||
Outside Diameter 120 mm | ||
Limiting Speed 8000rpm | ||
Standards/Approvals No | ||
Dynamic Load Rating 159000N | ||
RoHS Status: Exempt
- COO (Country of Origin):
- RO

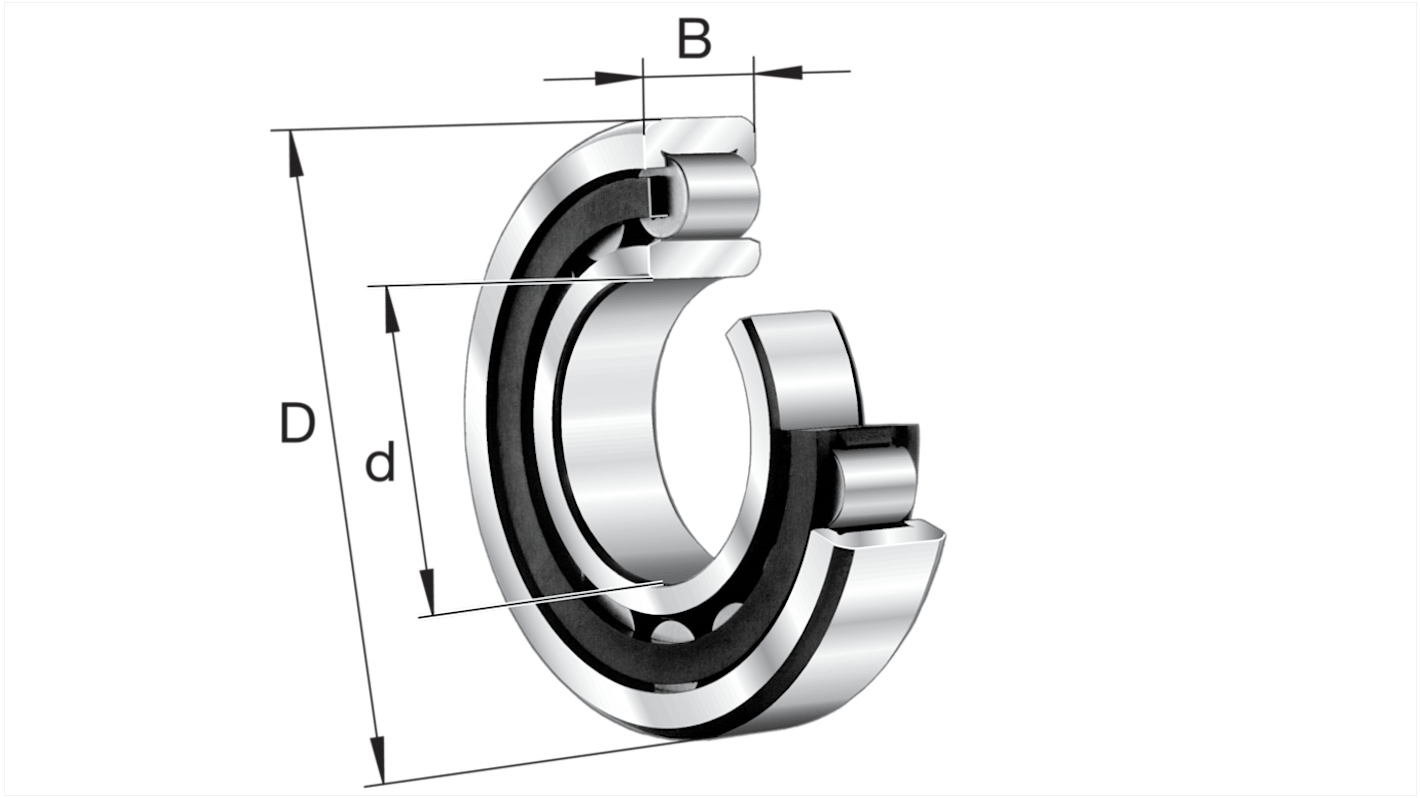

The FAG cylindrical roller bearing NU..-E-XL-TVP2 with cage. It has single row with non-locating bearing, 2 ribs on outer ring, 0 ribs on inner ring (smooth).
Operating temperature minimum -30 °C
Operating temperature maximum 120 °C
