FAG NU310-E-XL-TVP2 50 mm ID Roller Bearing, 110 mm OD
- RS Stock No.:
- 260-0526
- Mfr. Part No.:
- NU310-E-XL-TVP2
- Brand:
- FAG
Subtotal (1 unit)*
£84.74
(exc. VAT)
£101.69
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 6 unit(s) shipping from 20 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £84.74 |
*price indicative
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 260-0526
- Mfr. Part No.:
- NU310-E-XL-TVP2
- Brand:
- FAG
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | FAG | |
| Product Type | Roller Bearing | |
| Inside Diameter | 50mm | |
| Race Width | 27mm | |
| Bore Type | Parallel | |
| Roller Material | Steel | |
| Cage Material | Polyamide | |
| Better World Claim | Extended Product Life, Saves Energy | |
| Limiting Speed | 8900rpm | |
| Standards/Approvals | No | |
| Static Load Rating | 114000N | |
| Internal Clearance | CN | |
| Dynamic Load Rating | 131000N | |
| Outside Diameter | 110mm | |
| Series | NU-E-XL-TVP2 | |
| Better World Product | Yes | |
| Number of Rows | 1 | |
| Select all | ||
|---|---|---|
Brand FAG | ||
Product Type Roller Bearing | ||
Inside Diameter 50mm | ||
Race Width 27mm | ||
Bore Type Parallel | ||
Roller Material Steel | ||
Cage Material Polyamide | ||
Better World Claim Extended Product Life, Saves Energy | ||
Limiting Speed 8900rpm | ||
Standards/Approvals No | ||
Static Load Rating 114000N | ||
Internal Clearance CN | ||
Dynamic Load Rating 131000N | ||
Outside Diameter 110mm | ||
Series NU-E-XL-TVP2 | ||
Better World Product Yes | ||
Number of Rows 1 | ||
RoHS Status: Exempt
- COO (Country of Origin):
- RO

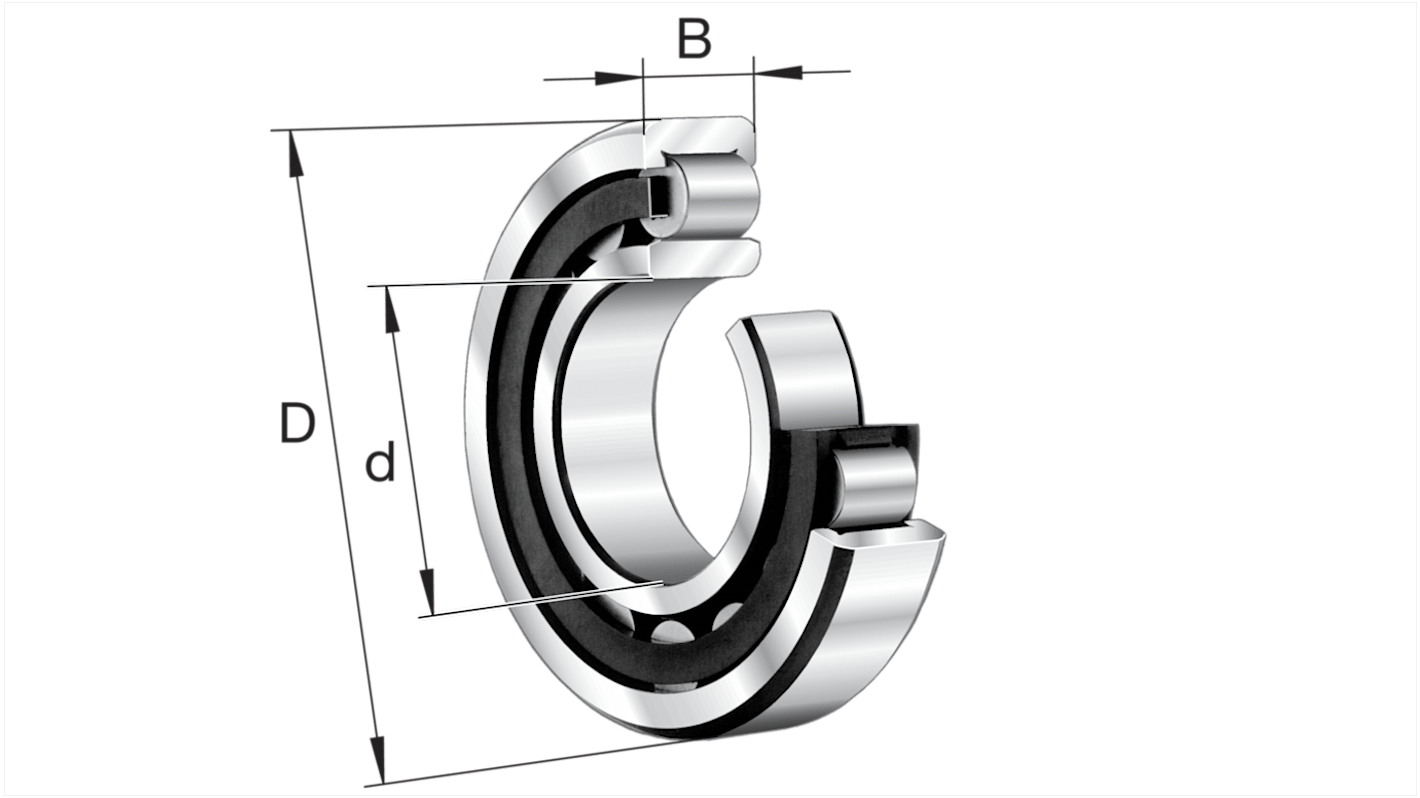

The FAG cylindrical roller bearing NU..-E-XL-TVP2 with cage. It has single row with non-locating bearing, 2 ribs on outer ring, 0 ribs on inner ring (smooth).
Operating temperature minimum -30 °C
Operating temperature maximum 120 °C
