FAG NU2210-E-XL-TVP2 50 mm I.D Roller Bearing, 90 mm O.D
- RS Stock No.:
- 260-0519
- Mfr. Part No.:
- NU2210-E-XL-TVP2
- Brand:
- FAG
Subtotal (1 unit)*
£60.62
(exc. VAT)
£72.74
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 4 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £60.62 |
*price indicative
- RS Stock No.:
- 260-0519
- Mfr. Part No.:
- NU2210-E-XL-TVP2
- Brand:
- FAG
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | FAG | |
| Product Type | Roller Bearing | |
| Inside Diameter | 50 mm | |
| Race Width | 23mm | |
| Bore Type | Parallel | |
| Cage Material | Polyamide | |
| Roller Material | Steel | |
| Series | NU-E-XL-TVP2 | |
| Static Load Rating | 88000N | |
| Dynamic Load Rating | 92000N | |
| Number of Rows | 1 | |
| Standards/Approvals | No | |
| Outside Diameter | 90 mm | |
| Internal Clearance | CN | |
| Limiting Speed | 11100rpm | |
| Select all | ||
|---|---|---|
Brand FAG | ||
Product Type Roller Bearing | ||
Inside Diameter 50 mm | ||
Race Width 23mm | ||
Bore Type Parallel | ||
Cage Material Polyamide | ||
Roller Material Steel | ||
Series NU-E-XL-TVP2 | ||
Static Load Rating 88000N | ||
Dynamic Load Rating 92000N | ||
Number of Rows 1 | ||
Standards/Approvals No | ||
Outside Diameter 90 mm | ||
Internal Clearance CN | ||
Limiting Speed 11100rpm | ||
RoHS Status: Exempt

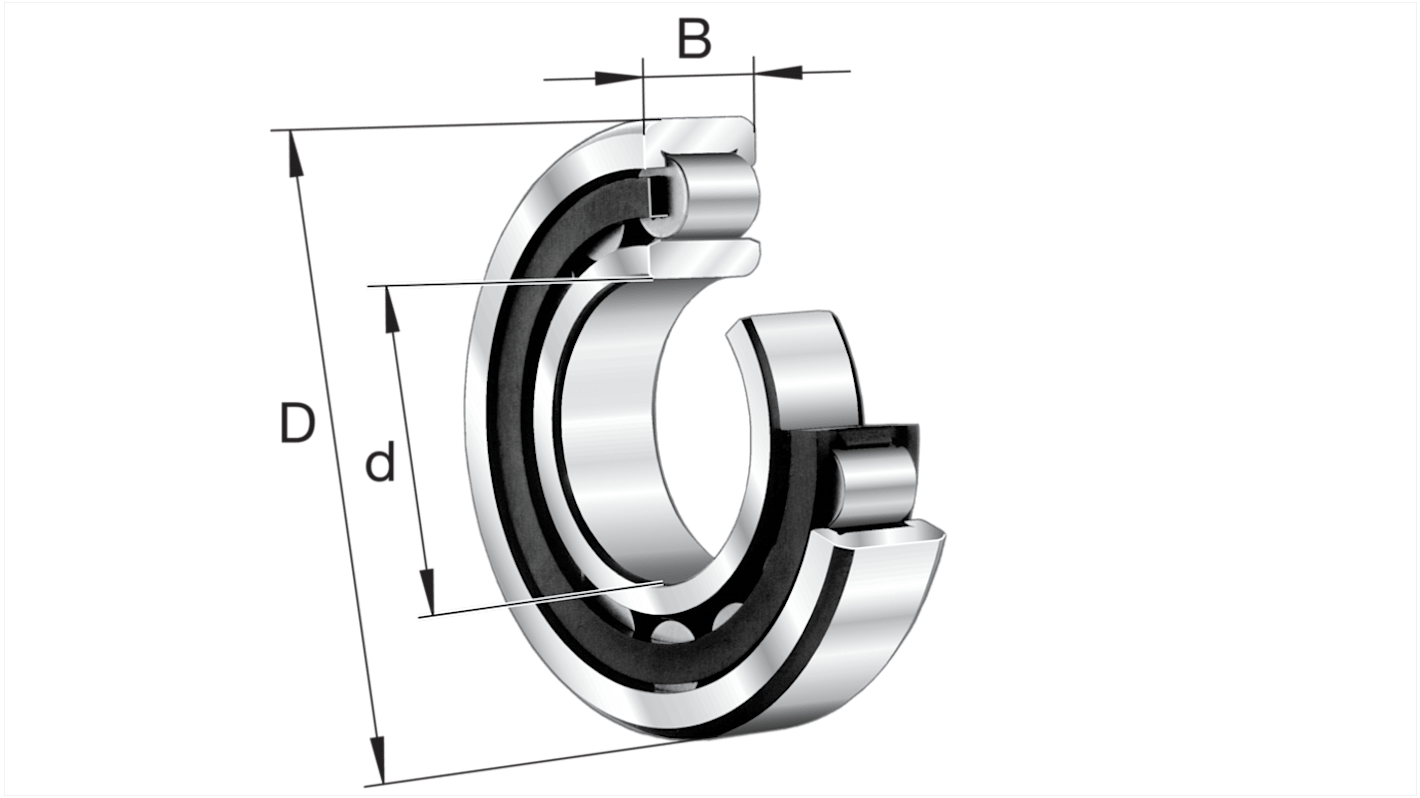

The FAG cylindrical roller bearing NU..-E-XL-TVP2 with cage. It has single row with non-locating bearing, 2 ribs on outer ring, 0 ribs on inner ring (smooth).
Operating temperature minimum -30 °C
Operating temperature maximum 120 °C
