FAG 22217-E1-XL-K Tapered 85 mm I.D Roller Bearing, 150 mm O.D
- RS Stock No.:
- 260-0385
- Mfr. Part No.:
- 22217-E1-XL-K
- Brand:
- FAG
Subtotal (1 unit)*
£213.24
(exc. VAT)
£255.89
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 3 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £213.24 |
*price indicative
- RS Stock No.:
- 260-0385
- Mfr. Part No.:
- 22217-E1-XL-K
- Brand:
- FAG
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | FAG | |
| Product Type | Roller Bearing | |
| Inside Diameter | 85 mm | |
| Race Width | 36mm | |
| Bore Type | Tapered | |
| Series | 222..-E1-K | |
| Static Load Rating | 325000N | |
| Standards/Approvals | DIN 635-2 | |
| Dynamic Load Rating | 305000N | |
| Outside Diameter | 150 mm | |
| Limiting Speed | 5700rpm | |
| Select all | ||
|---|---|---|
Brand FAG | ||
Product Type Roller Bearing | ||
Inside Diameter 85 mm | ||
Race Width 36mm | ||
Bore Type Tapered | ||
Series 222..-E1-K | ||
Static Load Rating 325000N | ||
Standards/Approvals DIN 635-2 | ||
Dynamic Load Rating 305000N | ||
Outside Diameter 150 mm | ||
Limiting Speed 5700rpm | ||
- COO (Country of Origin):
- DE

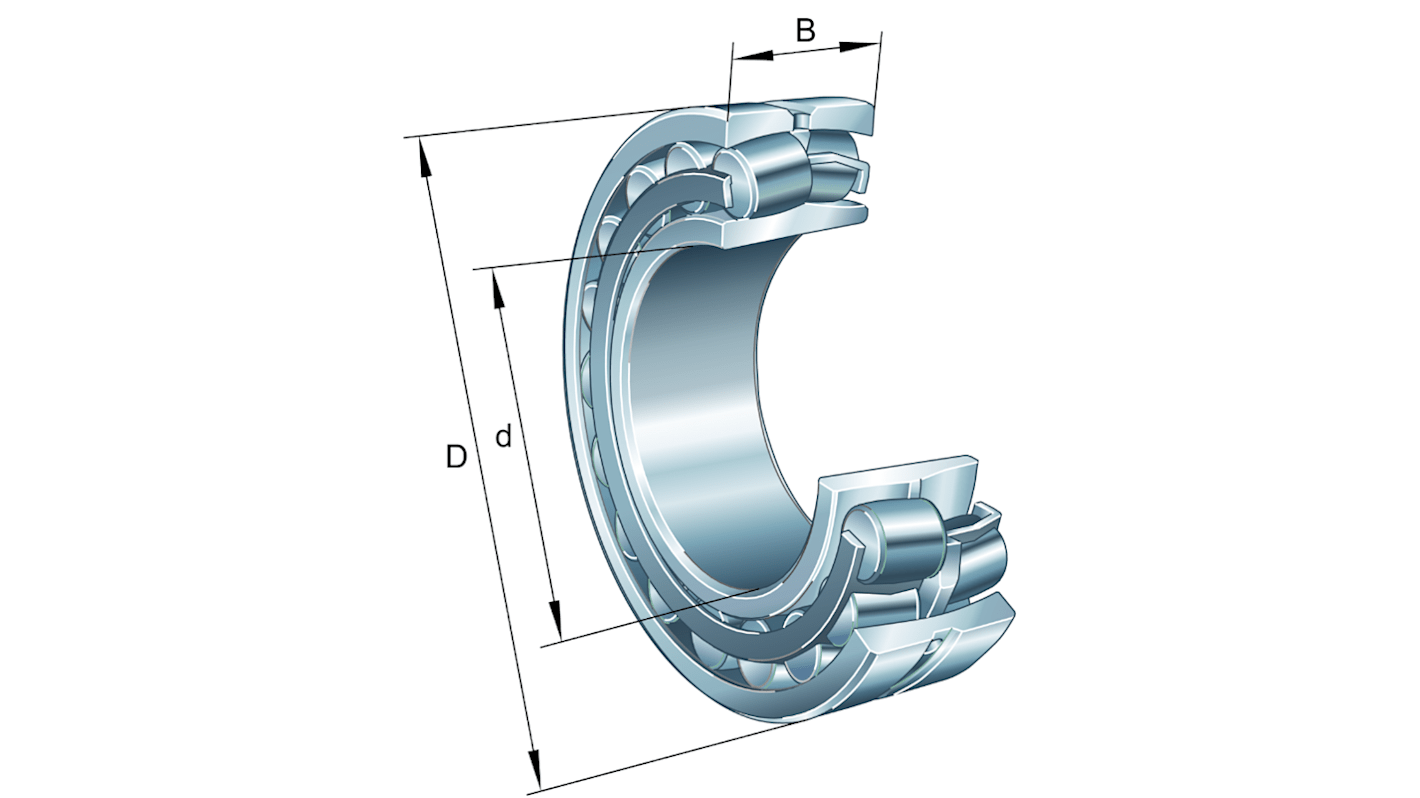

The FAG spherical roller bearings 222..-E1-K. It has main dimensions to DIN 635-2 with tapered bore, taper 1:12.
Operating temperature minimum -30 °C
Operating temperature maximum 120 °C
