SKF 24026 CC/C3W33 Tapered 130 mm I.D Roller Bearing, 200 mm O.D
- RS Stock No.:
- 209-4110
- Mfr. Part No.:
- 24026 CC/C3W33
- Brand:
- SKF
Subtotal (1 unit)*
£920.18
(exc. VAT)
£1,104.22
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 05 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £920.18 |
*price indicative
- RS Stock No.:
- 209-4110
- Mfr. Part No.:
- 24026 CC/C3W33
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SKF | |
| Product Type | Roller Bearing | |
| Inside Diameter | 130 mm | |
| Race Width | 69mm | |
| Bore Type | Tapered | |
| Outside Diameter | 200 mm | |
| Standards/Approvals | No | |
| Number of Rows | 2 | |
| Limiting Speed | 3000rpm | |
| Static Load Rating | 815kN | |
| Dynamic Load Rating | 569kN | |
| End Type | Closed | |
| Select all | ||
|---|---|---|
Brand SKF | ||
Product Type Roller Bearing | ||
Inside Diameter 130 mm | ||
Race Width 69mm | ||
Bore Type Tapered | ||
Outside Diameter 200 mm | ||
Standards/Approvals No | ||
Number of Rows 2 | ||
Limiting Speed 3000rpm | ||
Static Load Rating 815kN | ||
Dynamic Load Rating 569kN | ||
End Type Closed | ||
- COO (Country of Origin):
- SE

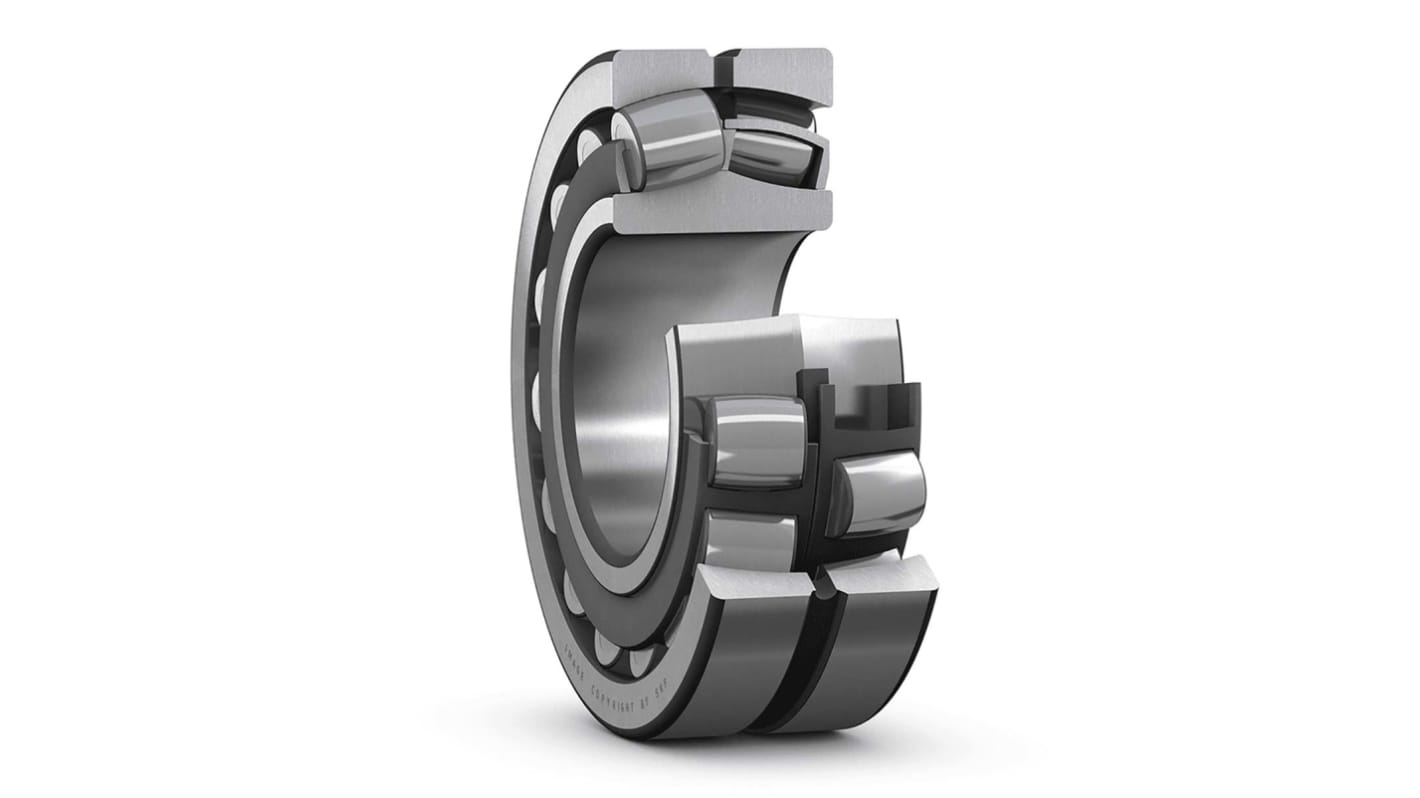

The SKF Spherical roller bearings have two rows of symmetrical rollers, a common sphered outer ring raceway and two inner ring raceways inclined at an angle to the bearing axis . The centre point of the sphere in the outer ring raceway is at the bearing axis. Dealing with very heavy radial and axial loads in applications prone to misalignment or shaft deflections can be a real challenge. Meet the challenge with SKF spherical roller bearings. Their high load carrying capacity and ability to accommodate misalignment helps you obtain low maintenance costs and long bearing service life.
Accommodate misalignment
High load carrying capacity
Long service life
Low friction
Robust
