SKF 23032 CCK/W33 Tapered 160 mm ID Roller Bearing, 240 mm OD
- RS Stock No.:
- 207-8573
- Mfr. Part No.:
- 23032 CCK/W33
- Brand:
- SKF
Subtotal (1 unit)*
£1,097.73
(exc. VAT)
£1,317.28
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 29 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £1,097.73 |
*price indicative
- RS Stock No.:
- 207-8573
- Mfr. Part No.:
- 23032 CCK/W33
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SKF | |
| Product Type | Roller Bearing | |
| Inside Diameter | 160mm | |
| Race Width | 60mm | |
| Bore Type | Tapered | |
| Roller Material | Steel | |
| Series | 23032 CCK/W33 | |
| Limiting Speed | 3000rpm | |
| Standards/Approvals | No | |
| Dynamic Load Rating | 614kN | |
| Outside Diameter | 240mm | |
| Internal Clearance | C3 | |
| Static Load Rating | 880kN | |
| Number of Rows | 1 | |
| Bearing Material | Steel | |
| Select all | ||
|---|---|---|
Brand SKF | ||
Product Type Roller Bearing | ||
Inside Diameter 160mm | ||
Race Width 60mm | ||
Bore Type Tapered | ||
Roller Material Steel | ||
Series 23032 CCK/W33 | ||
Limiting Speed 3000rpm | ||
Standards/Approvals No | ||
Dynamic Load Rating 614kN | ||
Outside Diameter 240mm | ||
Internal Clearance C3 | ||
Static Load Rating 880kN | ||
Number of Rows 1 | ||
Bearing Material Steel | ||
- COO (Country of Origin):
- US

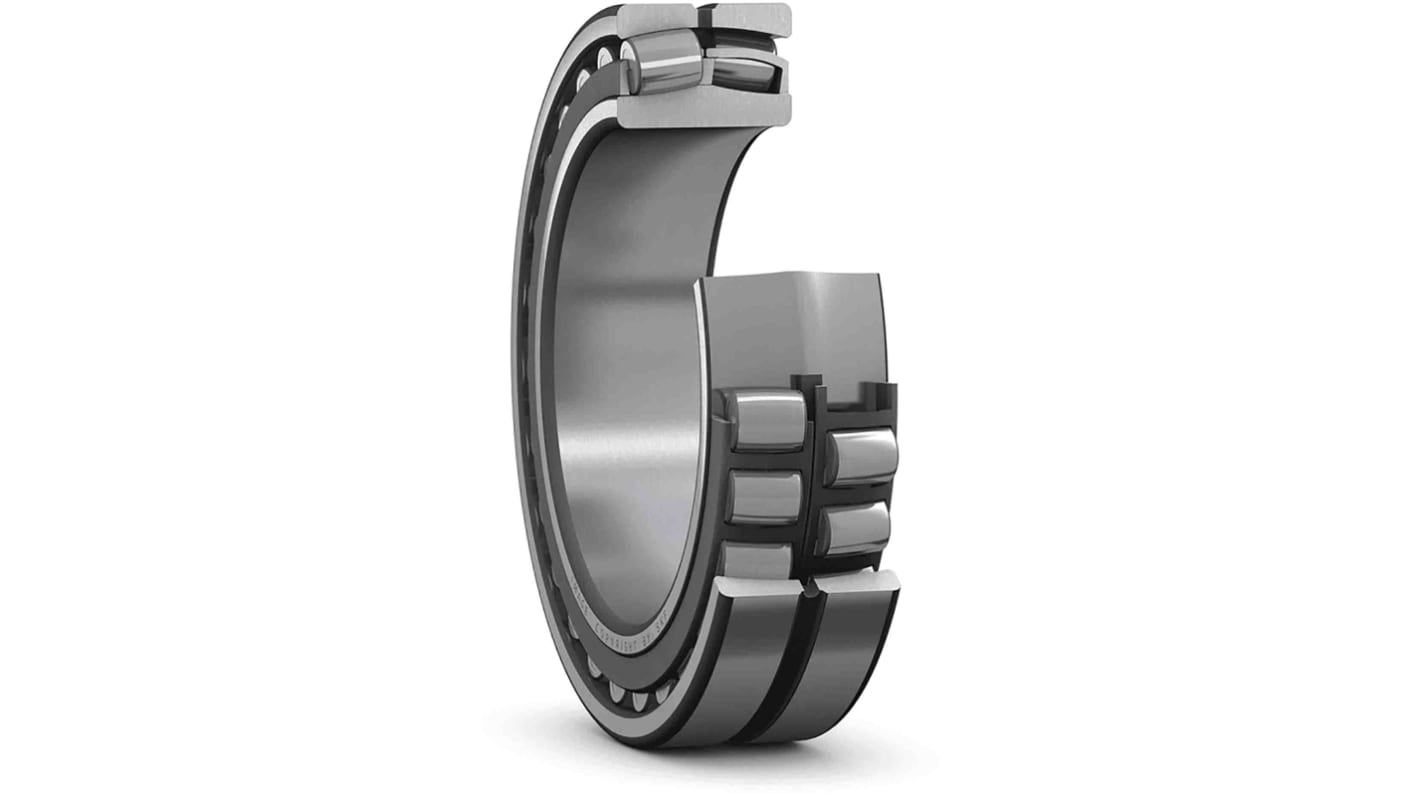

The SKF spherical roller bearings have two rows of symmetrical rollers, a common sphered outer ring raceway and two inner ring raceways inclined at an angle to the bearing axis. The centre point of the sphere in the outer ring raceway is at the bearing axis. It has 160 mm ID and 240 mm OD.
Bearing is of bearing steel
Tapered 1:12 bore type
